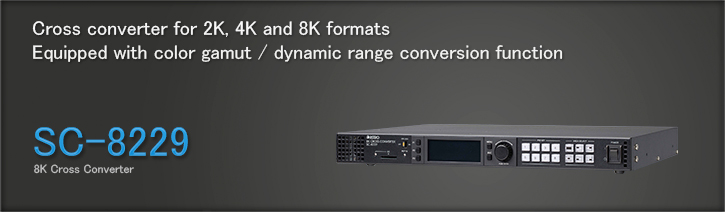

SC-8229
8K Cross Converter

Up-converts and down-converts 8K YCBCR 4:2:2, 4K, and HD video signals.
Equipped with 3D LUT for color gamut conversion and dynamic range conversion.

Features

  • Up-conversion and down-conversion of various video signals of 8K YCBCR 4:2:2, 4K and HD
  • Equipped with 3D LUT, supports color gamut conversion and dynamic range conversion
  • Supports 12G-SDI / 6G-SDI
  • FS function
  • Supports ancillary data
  • 32ch audio support, mapping change, downmix function
  • Preset function
  • Status function
  • Test pattern output
  • Supports remote control via LAN
  • Redundant power supply
  • SR Live for HDR* （Optional）

*”SR Live for HDR” is the solution which enables simultaneous and efficient HDR / SDR content production, proposed by Sony Corporation.

SPECIFICATIONS

SDI I/O
BNC Resolution Frame Rate Colorimetry SDI Format Standards
8K 4 7680×4320 50p/59.94p/60p YCBCR 4:2:2 10bit 12G-SDI Type1 2SI SMPTE ST 2082-1/12
YCBCR 4:2:2 10bit 12G-SDI Level A 4K(2SI)×4 SMPTE ST 2082-1/10
4 7680×4320 23.98p/24p/25p/
29.97p/30p		 YCBCR 4:2:2 10bit 6G-SDI Type 1 2SI SMPTE ST 2081-1/12
16 7680×4320 50p/59.94p/60p YCBCR 4:2:2 10bit 3G-SDI Level A SQD SMPTE ST 424-1
4K 1 3840×2160 50p/59.94p/60p YCBCR 4:2:2 10bit 12G-SDI Type1 2SI SMPTE ST 2082-1/10
1 3840×2160 23.98p/24p/25p/
29.97p/30p		 YCBCR 4:2:2 10bit 6G-SDI Type1 2SI SMPTE ST 2081-1/10
2 3840×2160 29.97p/30p YCBCR 4:2:2 10bit 3G-SDI Level A/B　2SI/SQD SMPTE ST 424-1/425-3
4 3840×2160 50p/59.94p/60p YCBCR 4:2:2 10bit 3G-SDI Level A/B　2SI/SQD SMPTE ST 424-1/425-5
23.98p/24p/25p/
29.97p/30p
23.98PsF/24PsF/25PsF/
29.97PsF /30PsF		 YCBCR 4:2:2 10bit HD-SDI SMPTE ST 424-1/425-3
HD 1 1920×1080 50p/59.94p/60p YCBCR 4:2:2 10bit 3G-SDI Level A/B SMPTE ST 424-1
1 1920×1080 23.98p/24p/25p/29.97p/30p
23.98PsF/24PsF/25PsF/
29.97PsF /30PsF
50i/59.94i/60i		 YCBCR 4:2:2 10bit HD-SDI SMPTE ST 292M



ANC Data Standards
Audio ARIB STD-B32, ARIB STD-B21, ARIB STD-B64/48kHz, 24bit, 32ch
Time Code ARIB STD-B4, ARIB STD-B68
*ANC data other than audio is not superimposed when FS function is on
Other ARIB TR-B22, ARIB TR-B23
*ANC data other than audio is not superimposed when FS function is on



Functıon
Convert Downconvert：8K→4K&HD, 4K→HD
Upconvert：4K→8K, HD→4K, HD→8K
Color Gamut Conversion 3D LUT：ITU-R BT.709, BT.2020
Dynamic Range Conversion 3D LUT：HLG, PQ(BT.2100)
*OFFSET, GAIN, PEDESTAL, KNEE adjustable
Option SR Live for HDR



Reference
Format NTSC BB Synchronization signal input (EIA RS 170A Compliant)
HD3 Synchronization signal input (SMPTE240M/274M/296M Compliant)
(Only work for 1920×1080/59 94i, 1920×1080/60i, 1920×1080/50i)
Loop through Function Through output disconnected 75Ω Terminal



Delay of Output Sıgnal
REF Input 33.3ms+ Genlock adjustment value (REF Input standard)
Active Through 1 line from Input SDI (Under 14.8us)



Other
SD Card For maintenance and Log use.
LAN Ethernet 100Base-TX Control
USB2.0 USB 2.0 Type-A



General Specıfıcatıons
Power Consumption 100W
Power Supply Voltage AC100-240V
Operating Temperature 5 to 40℃
Operating Humidity 20 to 80％RH（with no condensation）
Size 430(W) × 44(H) × 350(D)mm(excluding the protuberance）
Weight 4.5 kg
