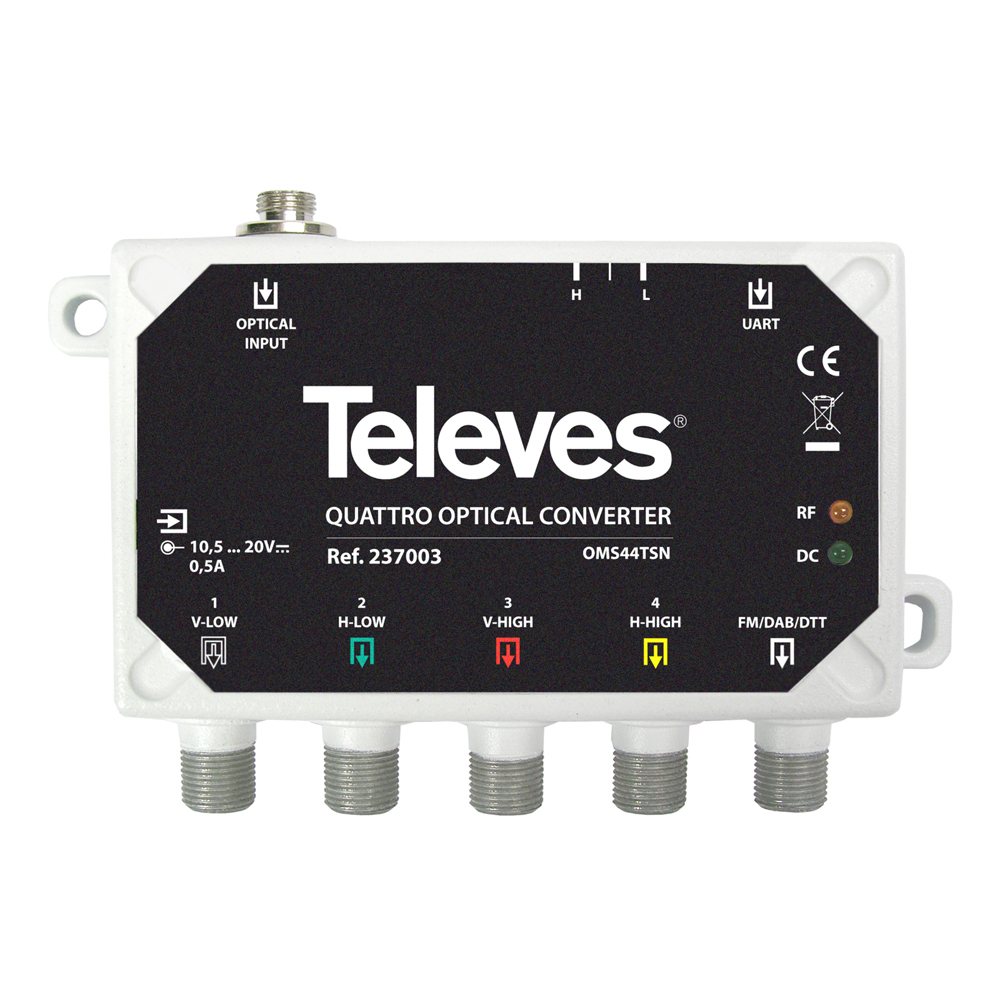

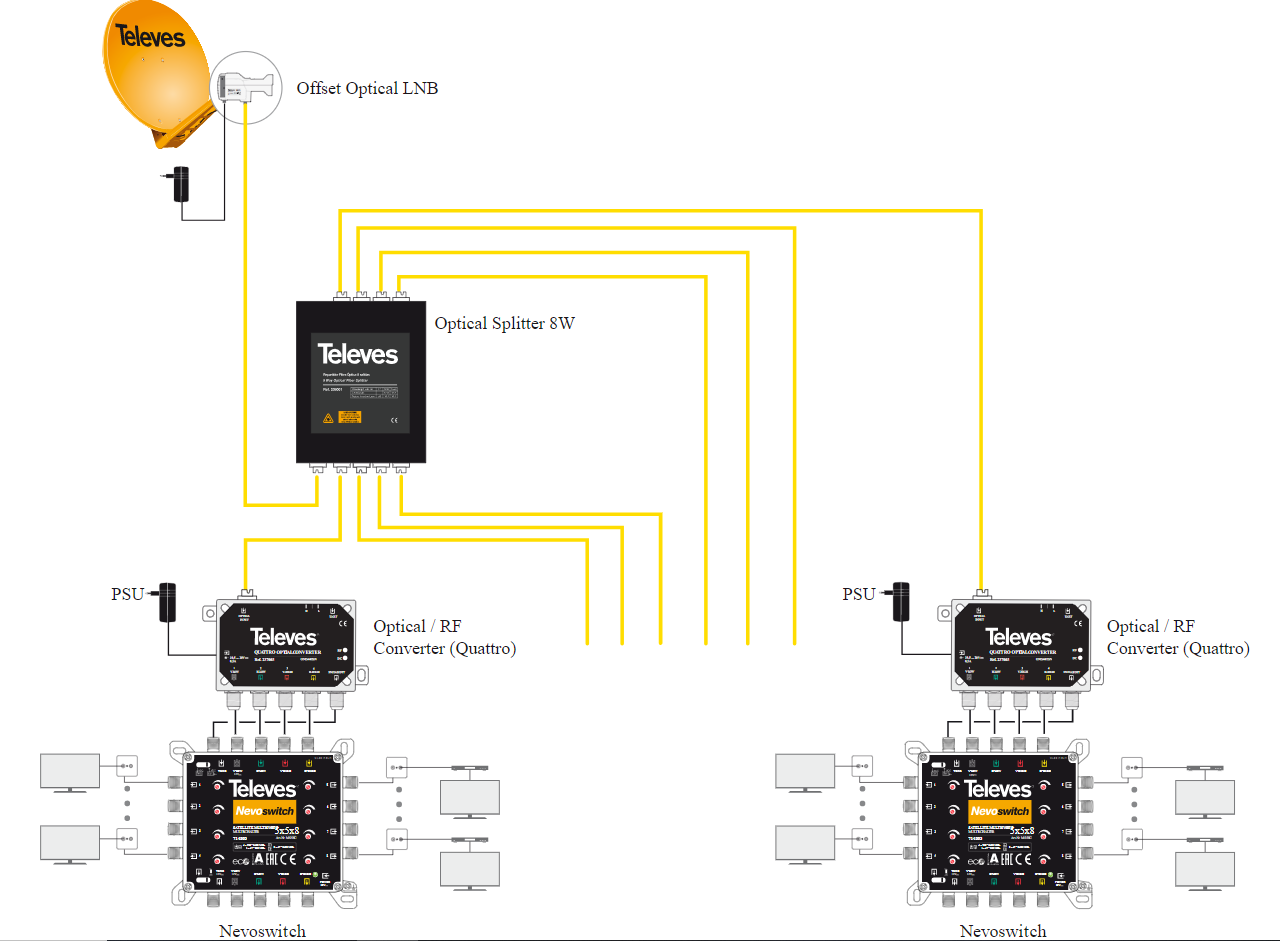

This accessory for systems equipped with an optical LNB, receives an optical TV signal (1100 nm-1650 nm) and restores the original RF signal. Provides 5 RF outputs: one for terrestrial TV, the other 4 for satellite TV in Quattro mode; in other words, it provides one of the four TVSAT polarity and band combinations on each connector.
| Salida RF | Satellite | |||
| Horizontal High Band | MHz | 1100 – 2150 | ||
| Vertical High Band | MHz | 1100 – 2150 | ||
| Horizontal Low Band | MHz | 950 – 1950 | ||
| Vertical Low Band | MHz | 950 – 1950 | ||
| Return Loss | dB | ≥ 10 | ||
| Nominal Impedance | Ω | 75 | ||
| Gain Variation Across Band | dB | ≤ 7 | ||
| Terrestrial Rejection | dB | 30 | ||
| Typical Outputs Levels | dBμV | 78 * (Satellite switch – high gain position) 73 * (Satellite switch – med gain position) 68 * (Satellite switch – low gain position) |
||
| FM / DAB / TDT | ||||
| RF Frequency Range | MHz | 88 – 790 | ||
| FM 88 – 108 | ||||
| DAB 174 – 240 | ||||
| DTT 470 – 790 | ||||
| Return Loss | dB | ≥ 10 | ||
| Nominal Impedance | Ω | 75 | ||
| Gain Variation Across Band | dB | 5 | ||
| Satellite Rejection | dB | 35 | ||
| Typical Outputs Levels | Nº Multiplexes | dBμV | FM/DTT | |
| 1 | 82 | |||
| 6 | 78 | |||
| Optical Input | Optical | |||
| Optical Wavelenght | nm | 1100 to 1650 | ||
| Optical Return Loss | dB | 45 | ||
| Optical Input Power | Min. | dBm | – 12,2 | |
| Max. | -3 | |||
| General | Electrical | |||
| Power Supply Voltage | V | 10,5 to 20 by AC/DC adaptor or satellite outputs |
||
| Current Consumption | mA | 500 @ 10,5V 430 @ 12V 260 @ 20V |
||
| Mechanical | ||||
| Temperature ranges | Operating | ºC | -15 … +55 | |
| Storage | -20 … 70 | |||
| Optical Input | Typ | FC / PC | ||
| RF Output connectors | Typ | 4 x F- female | ||
Necessary to filter unwanted signals, ex: noise / Analogue TV channels / 4G services…
