IA-1566
Interface Adapter

IA-1566 is an interface adapter that can convert between HDMI 2.1 and 12G / 6G-SDI that supports 8K and 4K.
It can be used for connecting to 8K TVs, 4K120Hz monitors, game consoles, and converting GPUs to SDI signals.

Features

  • Mutual conversion between HDMI 2.1 and 12G / 6G-SDI
  • Supports various formats
    7680 × 4320 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
    3840 × 2160 120p/119p/100p
  • Small size and light weight

Connection example

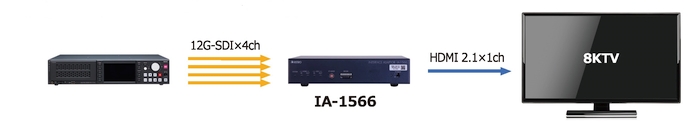

12G-SDI to HDMI 2.1 (8K60p)
8K Recorder HR-7518 to 8K TV

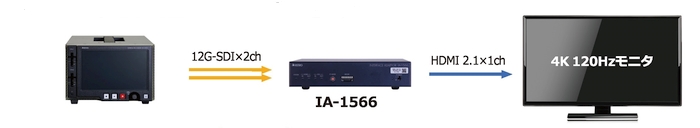

 12G-SDI to HDMI 2.1 (4K120p)
4K Recorder IR-7523 to 4K 120Hz monitor

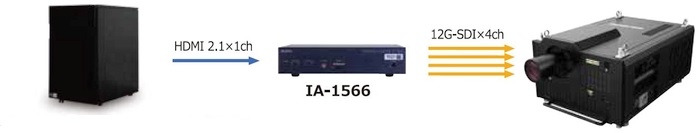

 HDMI 2.1 to 12G-SDl(8K60p)
8K Player to 8K Projector INSIGHT Laser 8K Imaging by ASTRO

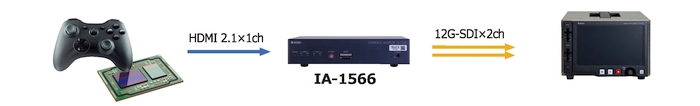

 HDMI 2.1 to 12G-SDI (4K120p)
Game console, GPU to 4K 120Hz Recorder IR-7523

SPECIFICATIONS

SDI ınput/output
Format Link Resolution Frame Rate Sampling Structure/
Pixel Depth		 SDI Format Related Standards
8K Quad 7680×4320 50p/59.94p/60p YCBCR 4:2:2 10bit 12G-SDI Type1 2SI SMPTE ST 2082-1/12
Dual 7680×4320 23.98p/24p/25p/29.97p/30p YCBCR 4:2:2 10bit 12G-SDI Type1 2SI SMPTE ST 2082-1/11
Quad 7680×4320 23.98p/24p/25p/29.97p/30p YCBCR 4:2:2 10bit 6G-SDI Type1 2SI SMPTE ST 2081-1/12
4K Dual 3840×2160 120p/119.88p/100p YCBCR 4:2:2 10bit 12G-SDI Type1 2SI SMPTE ST 2082-1/11



HDMI ınput/output
Format Link Resolution Frame Rate Sampling Structure/
Pixel Depth		 Remarks Standard
8K Single 7680×4320 50p/59.94p/60p YCBCR 4:2:0 8/10bit FRL 10Gbps/ 4Lane
8Gbps/4Lane
6Gbps/4Lane
HDCP:not supported
DSC:not supported		 CTA-861-G
Single 7680×4320 23.98p/24p/25p/29.97p/30p RGB 4:4:4 8/10bit
Single 7680×4320 23.98p/24p/25p/29.97p/30p YCBCR 4:4:4 8/10bit
Single 7680×4320 23.98p/24p/25p/29.97p/30p YCBCR 4:2:2 8/10bit
4K Single 3840×2160 120p/119.88p/100p RGB 4:4:4 8/10bit
Single 3840×2160 120p/119.88p/100p YCBCR 4:4:4 8/10bit
Single 3840×2160 120p/119.88p/100p YCBCR 4:2:2 8/10bit



Audıo format
Sample Frequency 48kHz
Resolution 24bit
Number of channels Up to 8ch



General Specıfıcatıons
Power Requirements DC 12V
Power Consumption 30W MAX
Operating Temperature Range 0～40℃
Operating Humidity Range 20～80％RH (no condensation)
External Dimensions 210(W) × 44(H) × 210(D)mm (excluding protrusions)
Weight 2.0 kg
