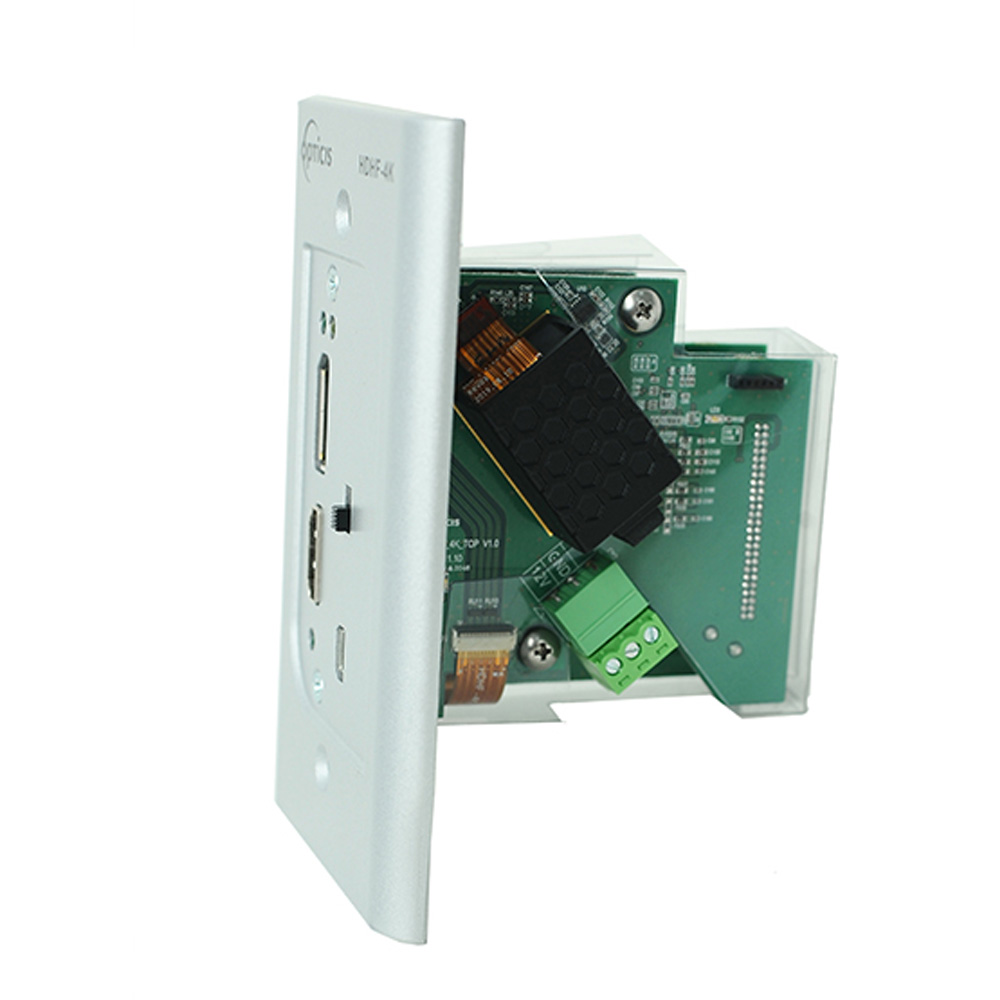

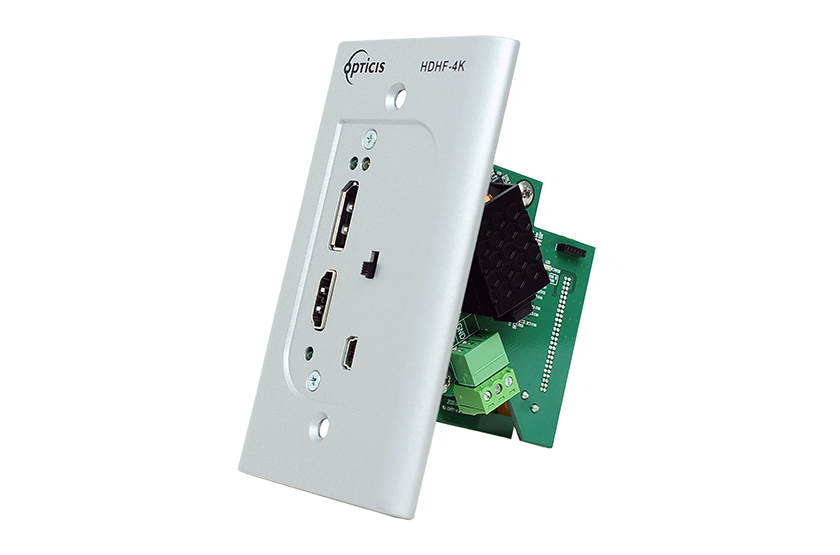

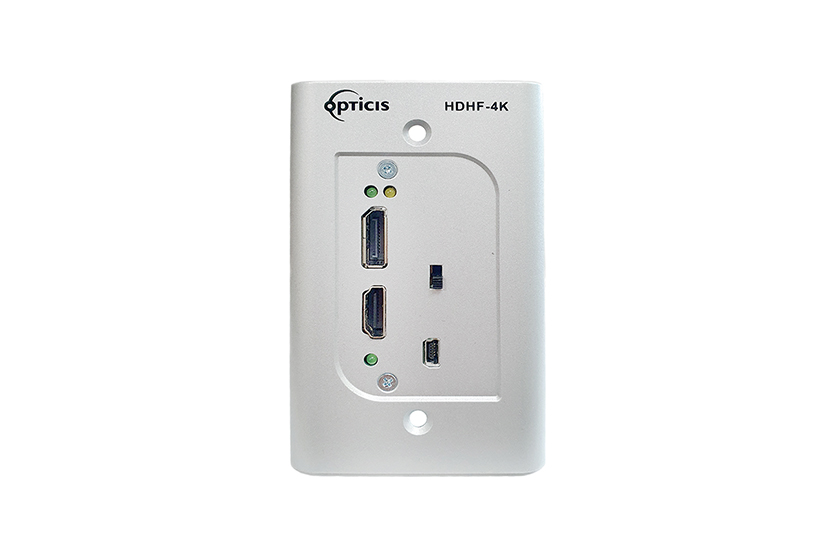

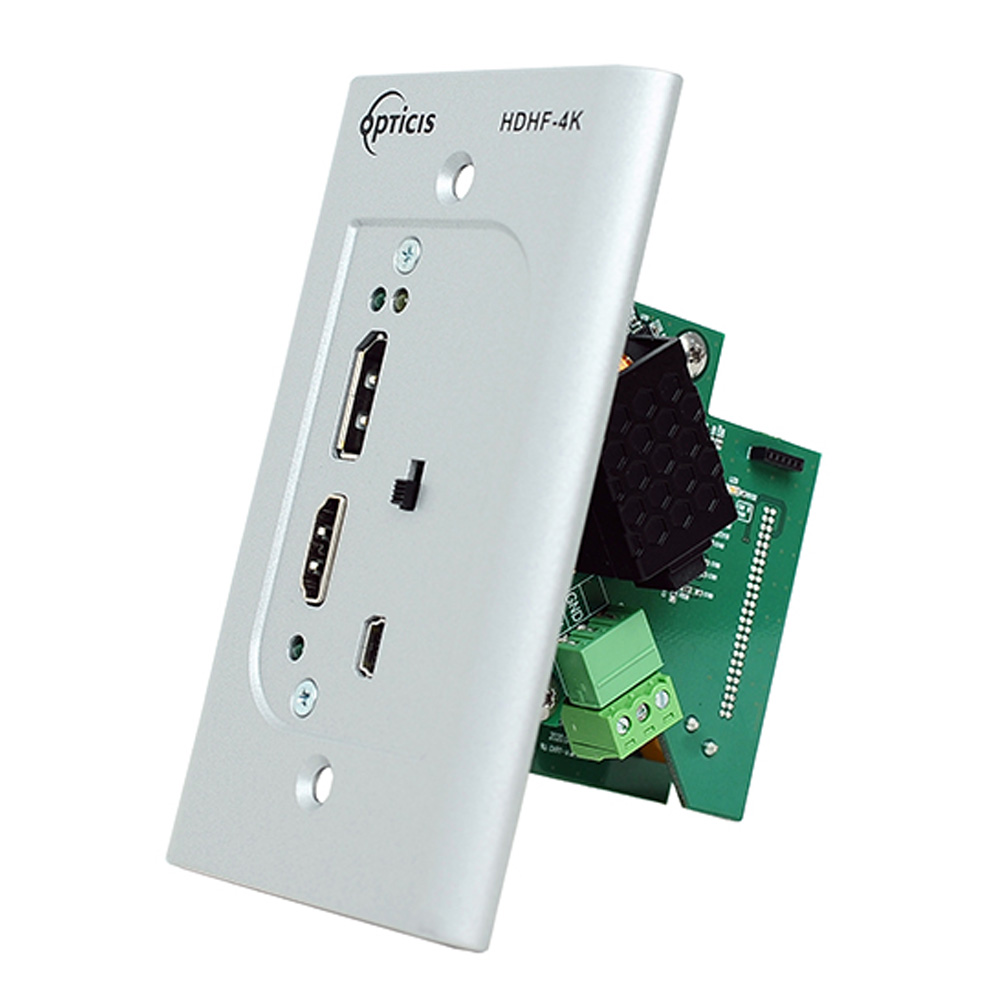

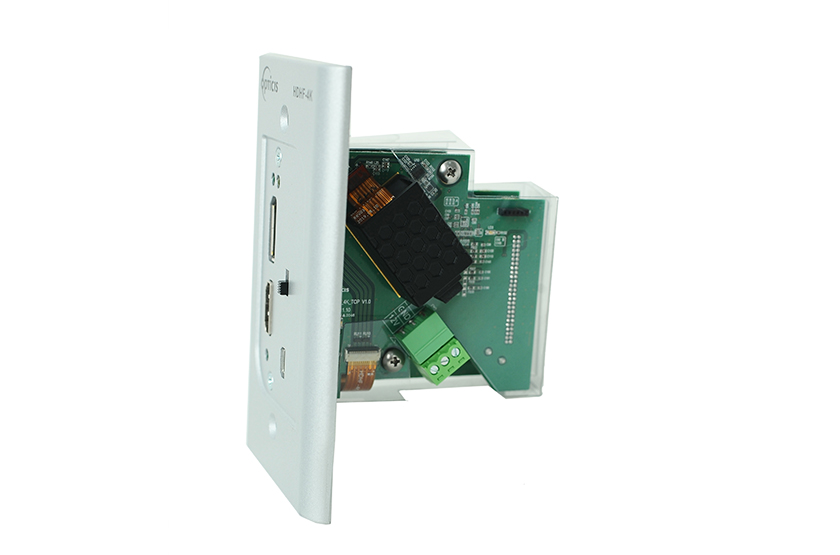

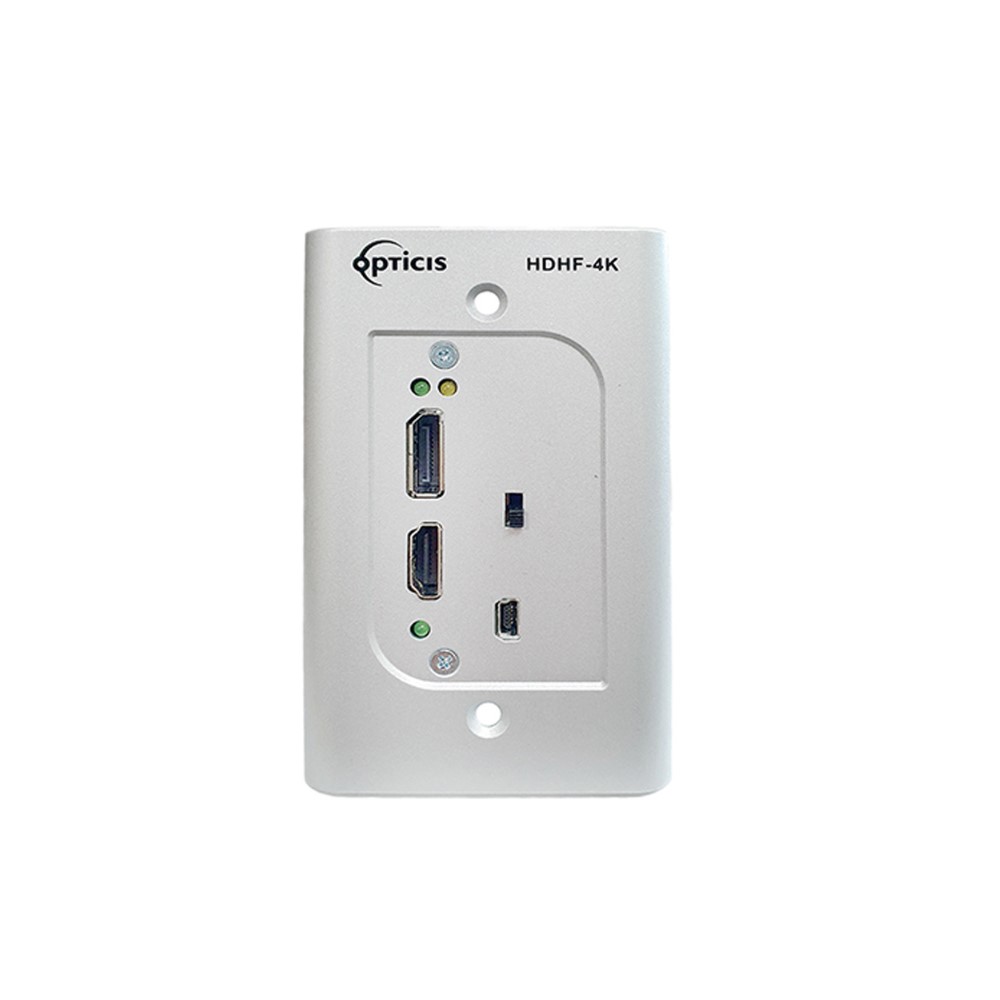

1 Gang-sized Multi-format Wall Plate Converter, HDHF-4K receives HDMI 2.0 and DisplayPort 1.2 into optical HDMI 2.0 signal and transmits it up to 200m(656feet) over one (1) multi-mode fiber (OM3) without any data compression or latency. To recover electrical HDMI signal, one (1) fiber HDMI receiver, HDFX-500-RX and HDFX-700-RX should be used at the display end.
HDHF-4K
4K Video signal wall-plate converter
PRODUCT SPECIFICATIONS
• Supports both DisplayPort 1.2 and HDMI 2.0 4K signals
• Supports up to 4K (4096×2160) at 60Hz, (RGB & YcbCr : 4 : 4 : 4 )
• Transmits converted optical signal up to 200m (656feet) over LC terminated 1 core multi-mode fiber (OM3)
• Operated via DIP switch to select DisplayPort 1.2 or HDMI 2.0 for conversion and transmission.
• Equipped with three (3) LEDs for power detection and HDMI and DisplayPort signal selection.

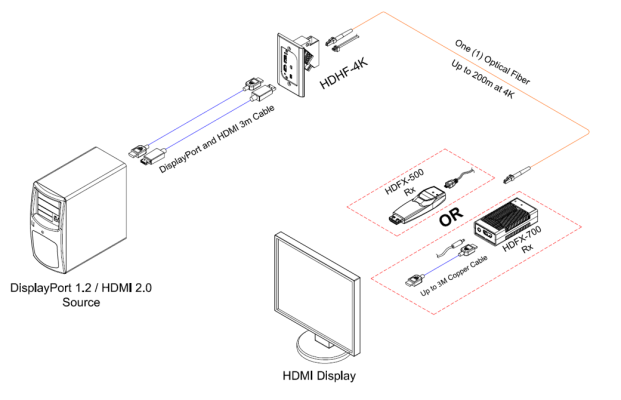

CONNECTION DIAGRAM
