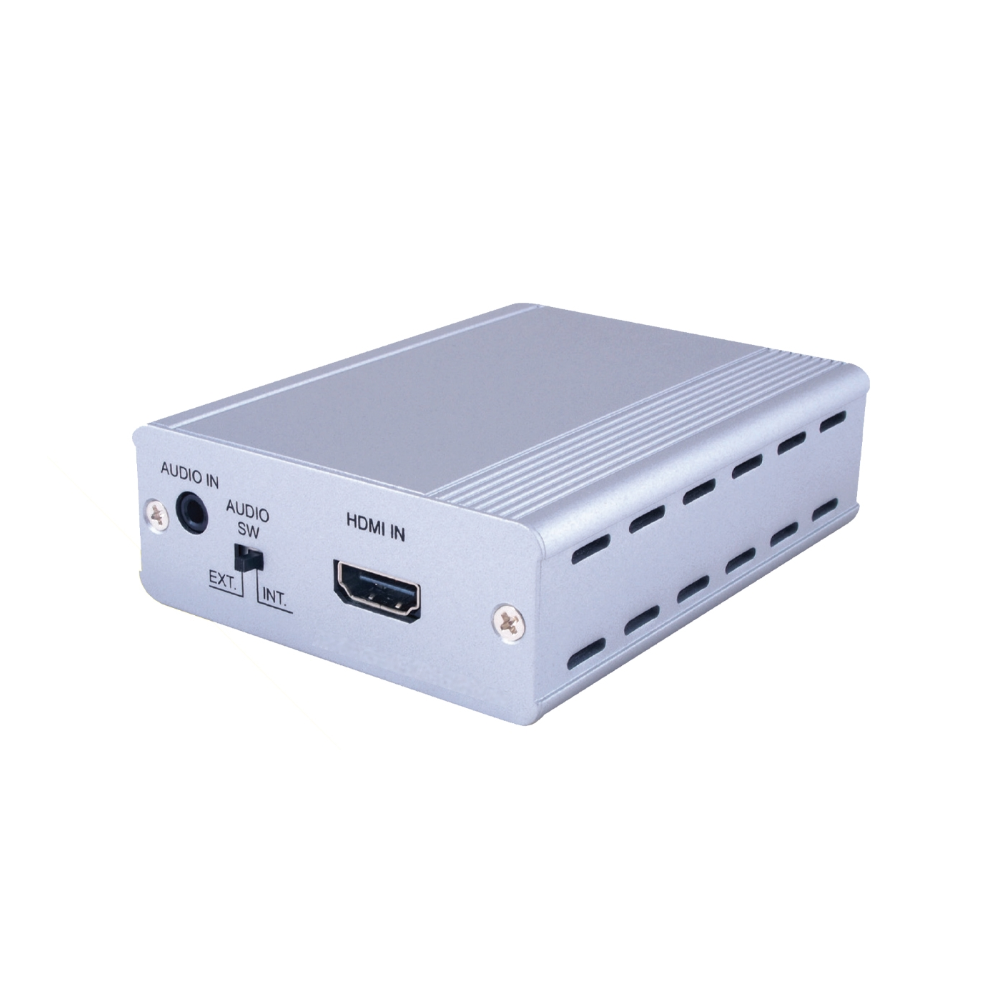

- Shows HDMI source on SDI display
- Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s
- Converts HDMI format to SDI:
- 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s)
- 720p/1080i to HD-SDI (SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s)
- 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s)
- Supports HDMI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
Outputs
- 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]
PSU:
- 5V/2.6A
Dimensions
- 78mm [W] x 124mm [D] x 30mm [H]
Net Weight
- 198g
