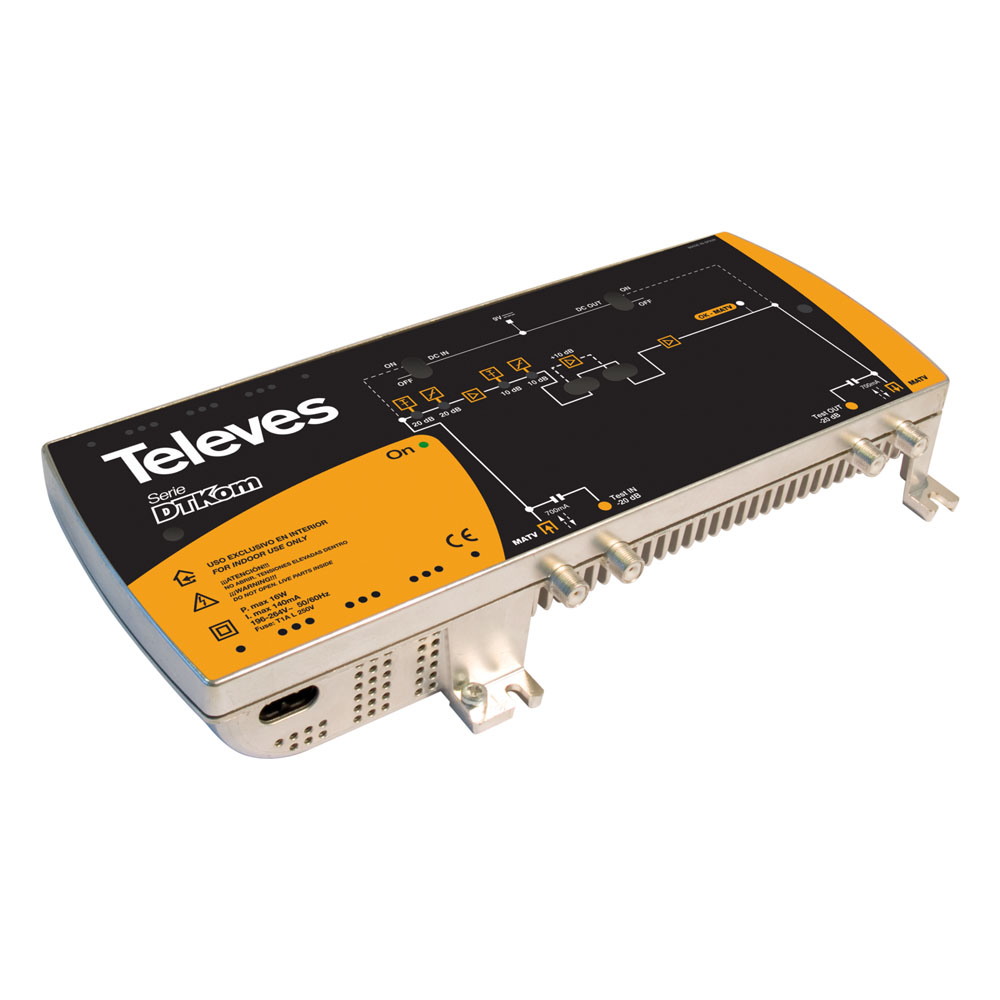

DTKom line broadband multiband amplifier, remotely powered
1 input: VHF/UHF / Ref. 5338

High-power multiband amplifier with multiple controls on the front end, which design uses components that minimize the total noise figure. Equipped with 1 VHF/UHF input and 1 output (line).
The multiband amplifier is equipped with remote power feeding, in other words, it can power or be powered with direct current through the coaxial cable.

Main features

  • Built in 2.5 mm-thick steel sheet
  • Matt epoxy-paint finish, 80-micron thick

    • li>Equipped with two nickel-plated steel strips

  • Capacity for 1 power supply, and 7 T.0X or 10 T12 modules

SPECIFICATIONS

Bands MATV
Frequency margin Mhz 47 … 862
Gain dB 40↔ 50 (selec.)
Max.output level DIN 45004B dBμV (dBmV) 120 (60)
EN 50083 (IMD3) 2 Ch -60dB 129 (59)
(IMD2) 2 Ch -60dB 112 (52)
CTB, CSO, XMOD D42Ch -60dB 105 (45)
Noise figure dB 6
Return loss input 10
Return loss output 10
Attenuator 0…20
Interstage attenuator 0 … 20
Equalizer 0 … 10
Interstage equalizer 0 … 10
Input test MATV – 20
Output test MATV – 20
Interstage equalizer V~ 120 – 230
Total AC consumption mA~ max. 240
W 16
Max current through inputs V 12
mA max. 700
Protection Level IP 20
Temperature operat. limits ºC

ºF

 -5…+45

14 … 113

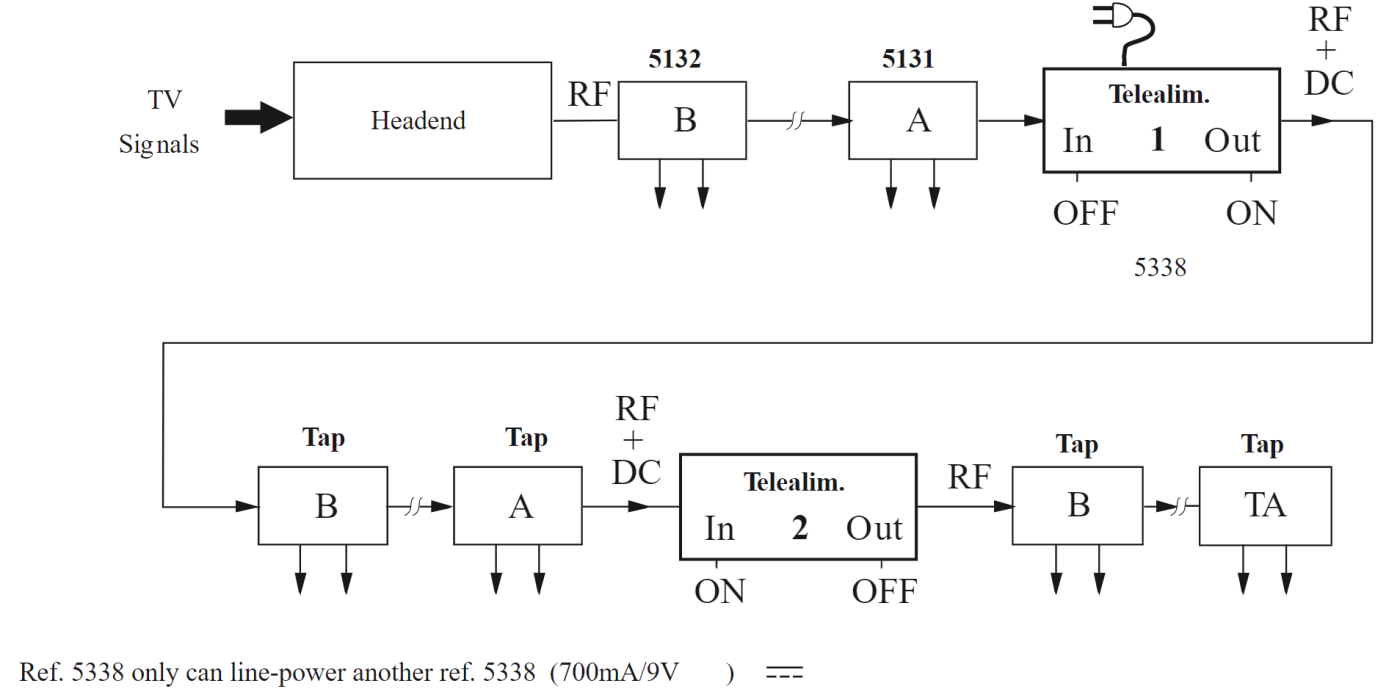

APPLICATION EXAMPLE
