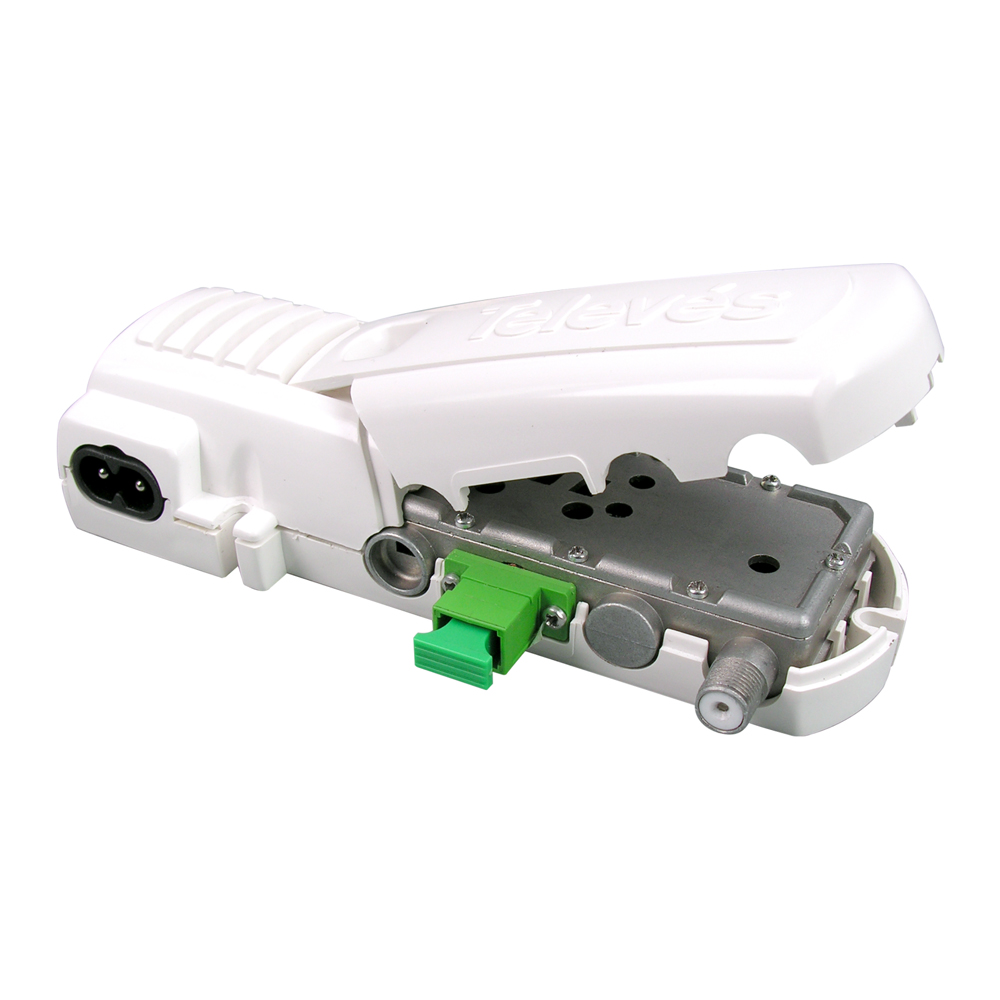

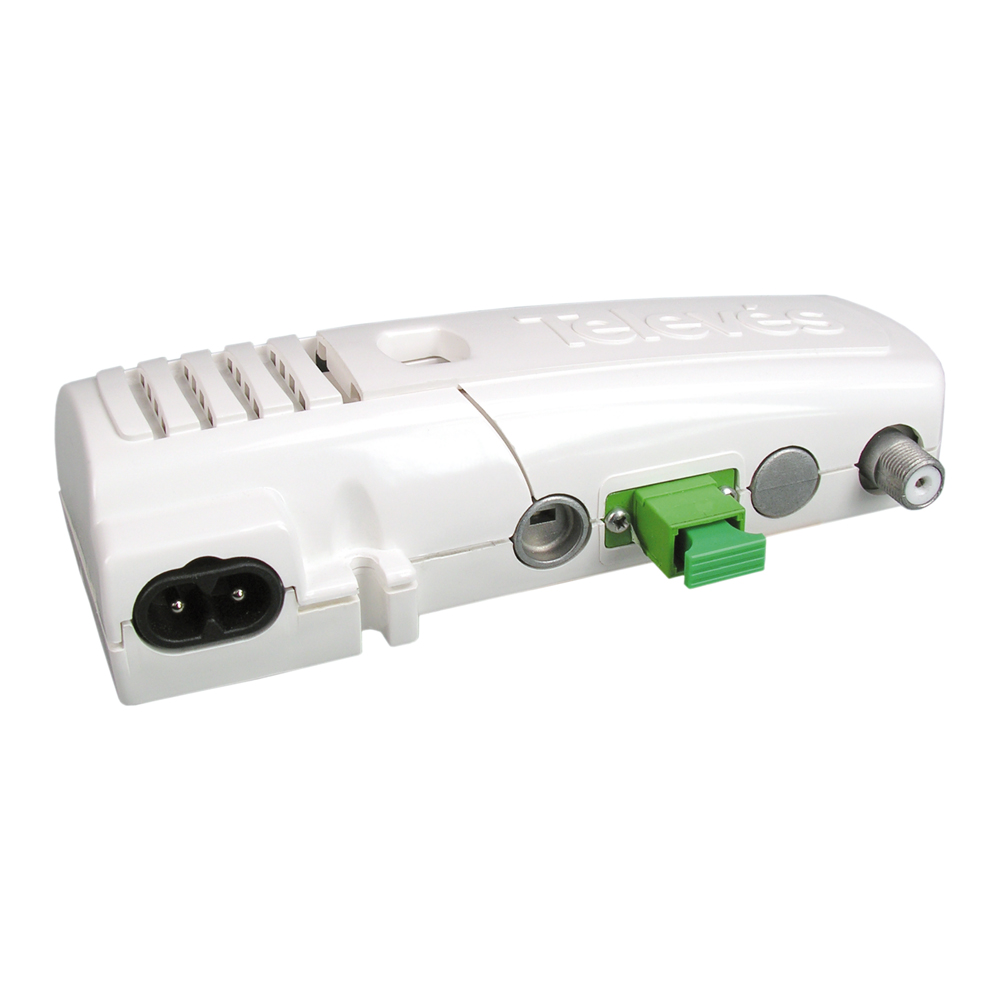

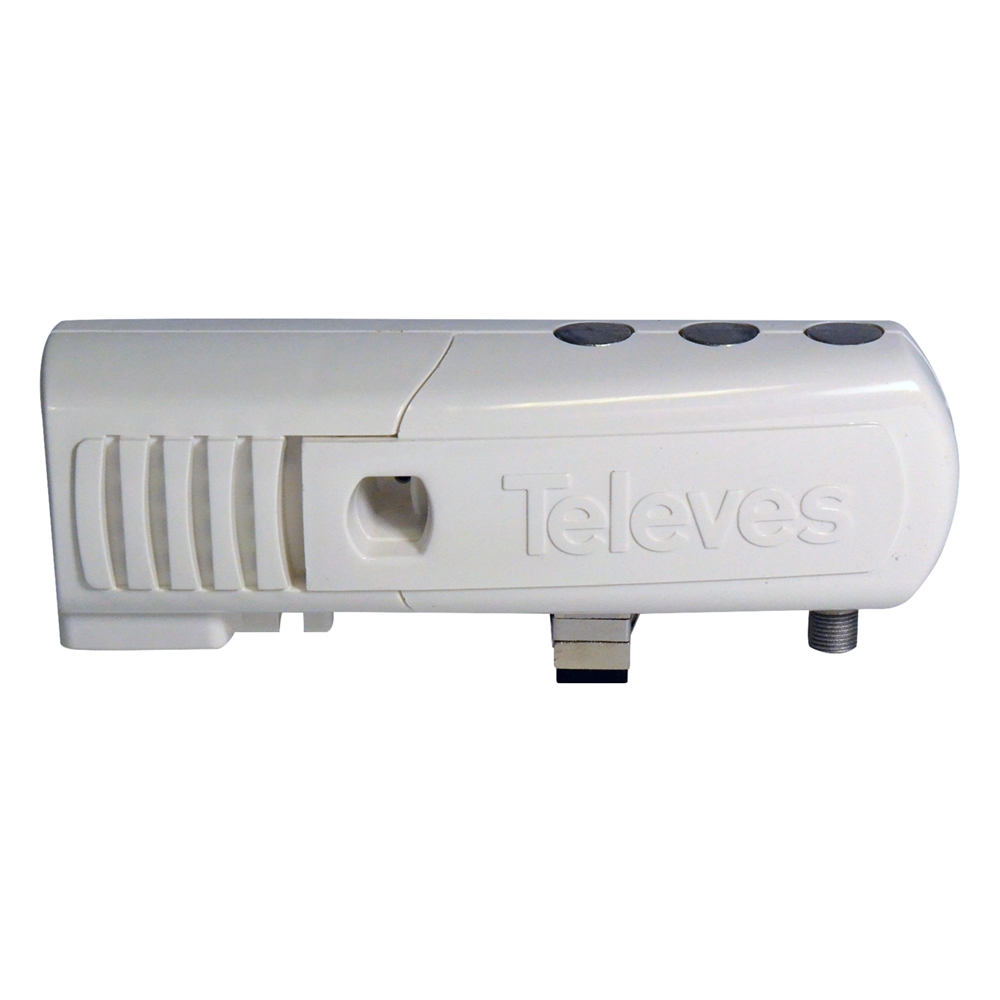

Domestic MATV optical micro-receiver equipped with OLC technology
1200…1600 nm / Ref. 231110

Domestic optical micro-receiver; receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz), with amplification.
Equipped with OLC technology.
Perfect for FTTH applications.

Highlights

  • Plug & Play: self-regulating
  • Low-impact visual design and limited size
  • The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
  • Self-controlled output level with an outstanding C/N
  • Wide reception optical range
  • Integrated high-performance switched-mode power supply: Low power consumption

Main features

  • Provides optical input power information thanks to a LED indicator scale
  • SC/APC connectors
  • Can be wall-mounted using screws

SPECIFICATIONS

RF output
RF connectros type F
Bandwidth MHz 47- 1006
Impedance Ohm 75
Return losses dBm > 11
Flatness dB ± 1,5
Typ. level of self-regulated RF output dBμV 80
CNR dB > 51
Optical input
Wavelength nm 1200 – 1600
OLC range dBm -8 … +1
Max optical input power dBm 2
Min. input optical power recomm. dBm -10
Optical return losses dB > 40
Optical input connector type SC/APC
Optical device type InGaAs pin photodiode
General
Mains voltage V~ 196-264
Max. current mA 19
Max. power W 1,7
Operating temperature ºC -5 … +45
Protection index IP20

DOWNLOADS

APPLICATION EXAMPLE

Necessary to filter unwanted signals, ex: noise / Analogue TV channels / 4G services…
