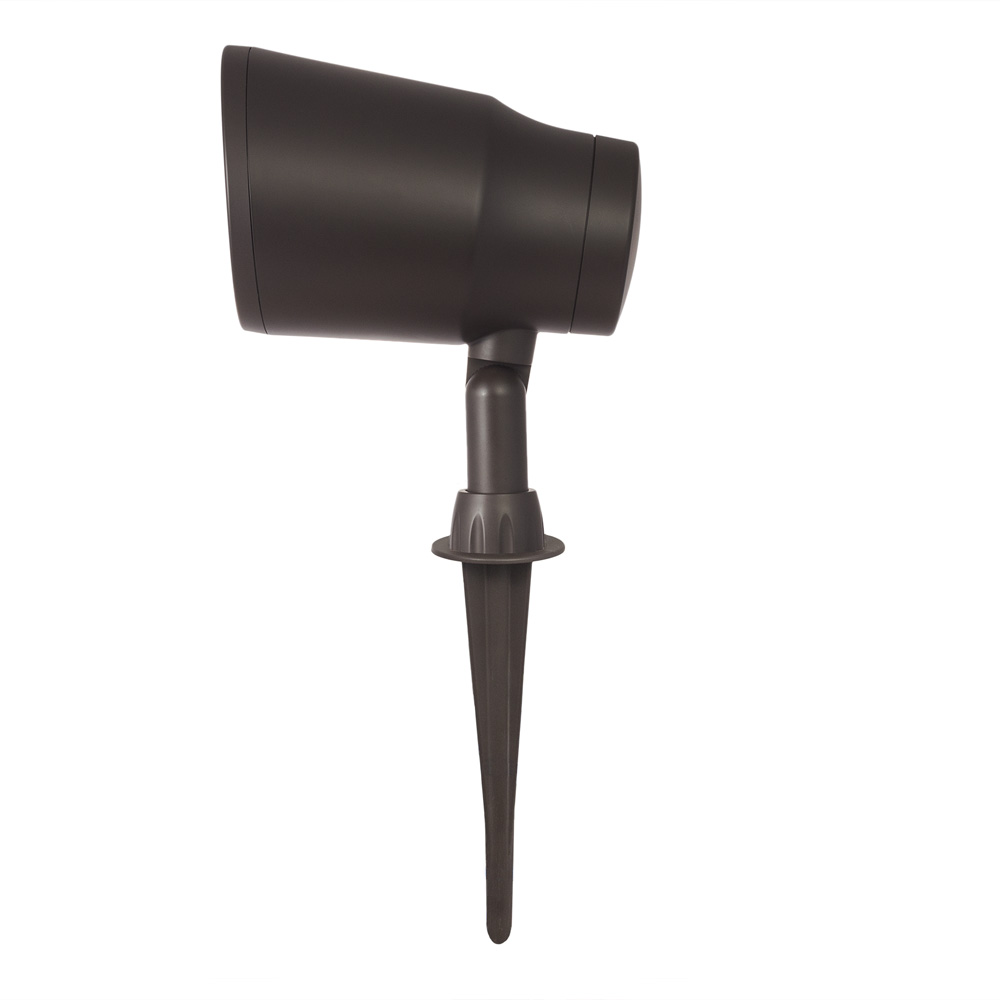

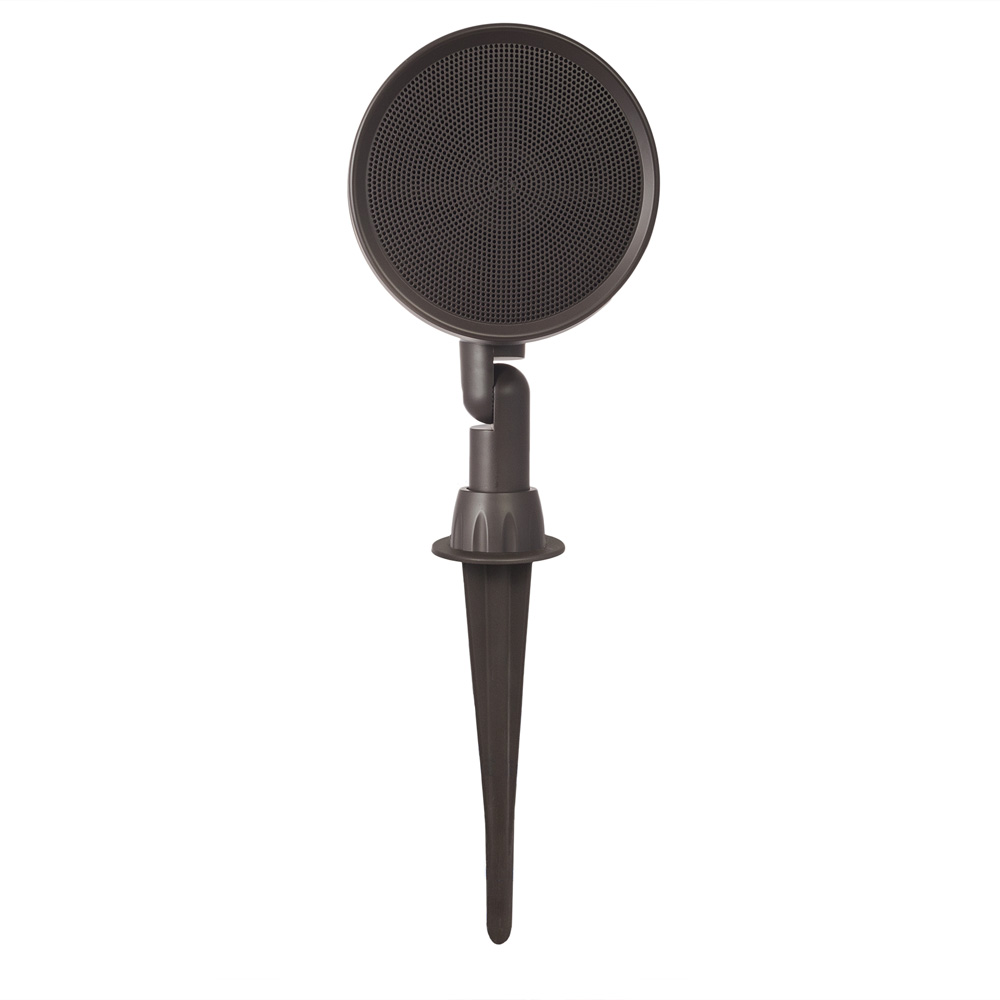

The SpeakerCraft SC-OG-6 features durable weatherproof design that ensures years of reliable performance. The new speakers incorporate nickel-plated brass fittings that address a common failure point among other landscape speakers that use plastic-plated fittings. The Satellites can operate in traditional 8ohm mode, but also have adjustable 70V/100V tap switch settings. This enables installation and amplification modes favored by many installers, and allows users to set the volume of each speaker individually. The 110-degree wide dispersion ensures wide audio coverage in all outdoor spaces.
FEATURES
- 6″ (152mm) Polypropylene Cone Woofer with NBR Surround
- 3/4″ (20mm) Aluminum Dome Tweeter
- Weather-Resistant Fiberglass-Reinforced ABS Enclosure
- Sensitivity: 87dB
- Frequency Response: 100Hz-20kHz +/- 3dB
- Power Handling: Up to 120W
- Nominal Impedance: 8 ohms (in Bypass Mode)
- Tap Settings: 70V/100V: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
- 110-degree wide dispersion
- Mounting accessories not included
SPECIFICATIONS
- Line Voltage: : 70V/100V
- Transformer Tap Settings: : 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
OTHER SPECIFICATIONS
| General | |
| Woofer Size | 6 (Inches) |
| Woofer Construction | Polypropylene Cone Woofer with NBR Surround |
| Frequency Response | 100Hz- 20Khz |
| Impedance | 8 (Ohms) |
| Power Handling | 120 (Watts) |
| Sensitivity | 87 (dB) |
| Crossover | 2.8kHz |
| Dimensions | LxWxH, in/mm: 11.8 x 7.7 x 12 / 300 x 195.6 x 307 with arm extended |
| Shipping Info | |
| Length | 11.7 (Inches) |
| Width | 12.2 (Inches) |
| Height | 14.2 (Inches) |
| Weight | 10.1 (Lbs) |
| Unit of Measure | Each |
| UPC | 664254021589 |
| Master Pack Qty | 4 |
| Other Specifications | |
| Line Voltage: | 70V/100V |
| Transformer Tap Settings: | 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass) |
