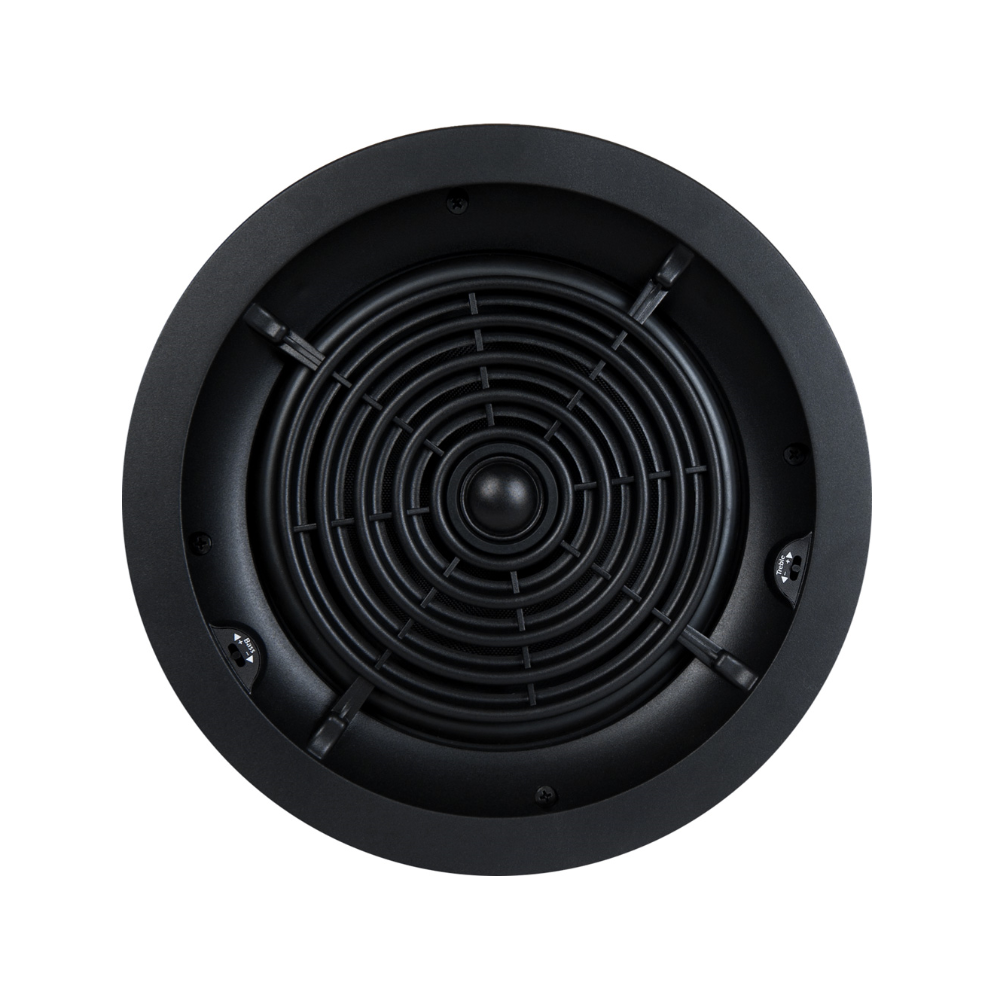

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- 8″ Glass Composite Cone Woofer
- Pivoting 1″ Silk Dome Tweeter
- WavePlane Technology
- Front-Mounted Switch Allows for up to ±3dB of Bass and Treble Adjustment
OTHER SPECIFICATIONS
| General | |
| Family | Profile CRS |
| Woofer Size | 8 (Inches) |
| Woofer Construction | Glass Composite Cone Woofer |
| Tweeter | Pivoting 1″ Silk Dome Tweeter |
| Frequency Response | 40Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 100 (Watts) |
| Sensitivity | 90 (dB) |
| Timbre | Timbre-Matched to All Two Series Speakers |
| Switches | Front-Mounted Switch Allows for up to ±3dB of Bass and Treble Adjustment |
| Dimensions | 11 1/8″ x 4 1/2″ (303 mm x 114 mm) (with Grille) |
| Hole Cutout Dimensions | 9 3/4″ (248 mm)) |
| Shipping Info | |
| Length | 13.1 (Inches) |
| Width | 12.9 (Inches) |
| Height | 6.25 (Inches) |
| Weight | 3.28 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| 8″ Glass Composite Cone Woofer | |
| Pivoting 1″ Silk Dome Tweeter | |
| WavePlane Technology | |
| Front-Mounted Switch Allows for up to ±3dB of Bass and Treble Adjustment |
