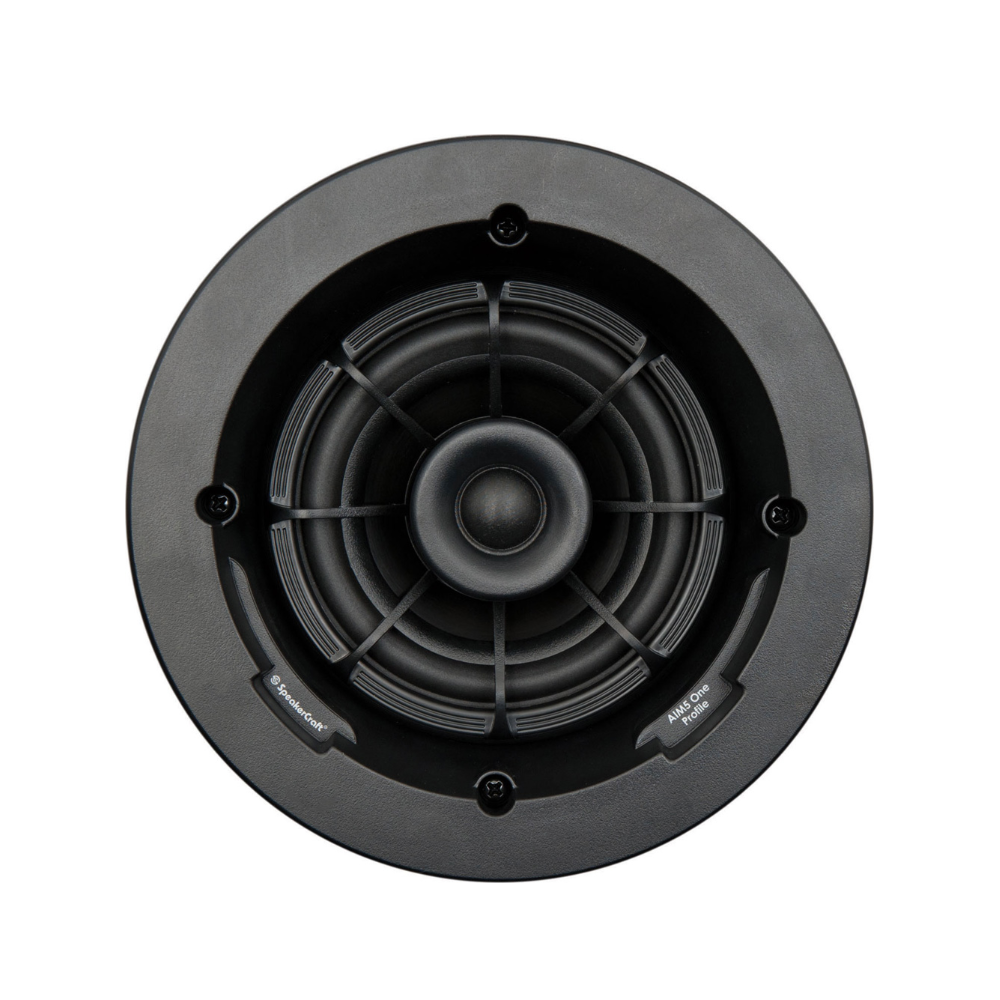

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- Pivoting and Rotating 5 ¼” Injection Molded Polypropylene Cone Woofer
- Pivoting ¾” Treated Silk Dome Tweeter
- U.S. Patent No. D419,561 & 6,101,262
OTHER SPECIFICATIONS
| General | |
| Family | Profile AIM |
| Woofer Size | 5.25 (Inches) |
| Frequency Response | 55Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 75 (Watts) |
| Sensitivity | 88 (dB) |
| Timbre | Timbre-Matched to All One Series Speakers |
| Dimensions | 7-15/16″ x 4-1/2″ (201 mm x 114 mm) |
| Hole Cutout Dimensions | 6-5/8″ (168 mm) |
| Shipping Info | |
| Length | 6 (Inches) |
| Width | 4 (Inches) |
| Height | 4 (Inches) |
| Weight | 1 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| Pivoting and Rotating 5 ¼” Injection Molded Polypropylene Cone Woofer | |
| Pivoting ¾” Treated Silk Dome Tweeter | |
| U.S. Patent No. D419,561 & 6,101,262 |
