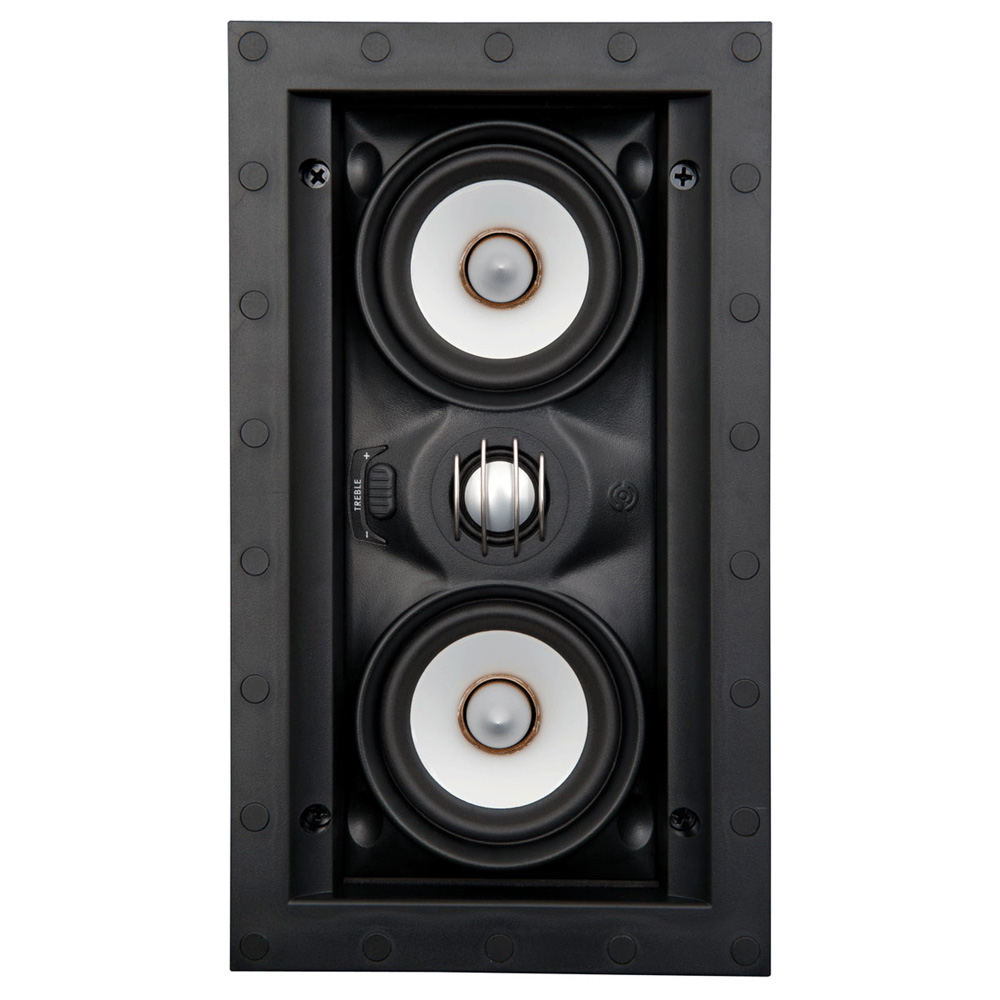

AIM LCR speakers deliver powerful, compelling home theater sound in slim, easy-to-mount in-wall models. The front baffles tilt so you can aim the sound exactly where you want it. AIM LCR and AIM LCR3 models are available with Profile grilles as an option.
FEATURES
- Flangeless Appearance
- Pivoting Baffle
- Two 3″” Aluminum Woofers with Phase Plugs
- Pivoting 3⁄4″” Aluminum Tweeter
- 2-Position Treble EQ Switch
- Sensitivity: 86dB 1W/1m
- Power Handling: 60 Watts
- Impedance: 8 Ohm
- Frequency Response: 78Hz – 20kHz
- Dimensions: (H x W x D) 101⁄2″” x 6″” x 3″” 254 mm x 146 mm x 76 mm (with Grille)
- Wall Cut-Out: (H x W) 9″” x 43⁄4″” 227 mm x 120 mm”
SPECIFICATIONS
| General | |
| Family | Profile AIM LCR |
| Woofer Size | 3 (Inches) |
| Woofer Construction | Two 3″ Aluminum Cone Woofers with Phase Plugs |
| Frequency Response | 78Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 60 (Watts) |
| Sensitivity | 86 (dB) |
| Timbre | Timbre-Matched to All Three Series Speakers |
| Switches | Front-Mounted 2-Position Treble Adjustment Switch |
| Dimensions | (H x W x D) 10-1/4″ x 6″ x 3″ (260 mm x 152 mm x 76 mm) |
| Hole Cutout Dimensions | (H x W) 9″ x 4-3/4″ (227 mm x 120 mm) |
| Shipping Info | |
| Length | 12.1 (Inches) |
| Width | 7.7 (Inches) |
| Height | 4.6 (Inches) |
| Weight | 4.95 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| Pivoting Woofer Baffle | |
| Two 3″ Aluminum Cone Woofers with Phase Plugs | |
| Pivoting ¾ Aluminum Dome Tweeter | |
| Front-Mounted 2-Position Treble Adjustment Switch | |
| U.S. Patent No. 7,522,742 B2 |
OTHER SPECIFICATIONS
- Flangeless Appearance
- Pivoting Woofer Baffle
- Two 3″ Aluminum Cone Woofers with Phase Plugs
- Pivoting ¾ Aluminum Dome Tweeter
- Front-Mounted 2-Position Treble Adjustment Switch
- U.S. Patent No. 7,522,742 B2
