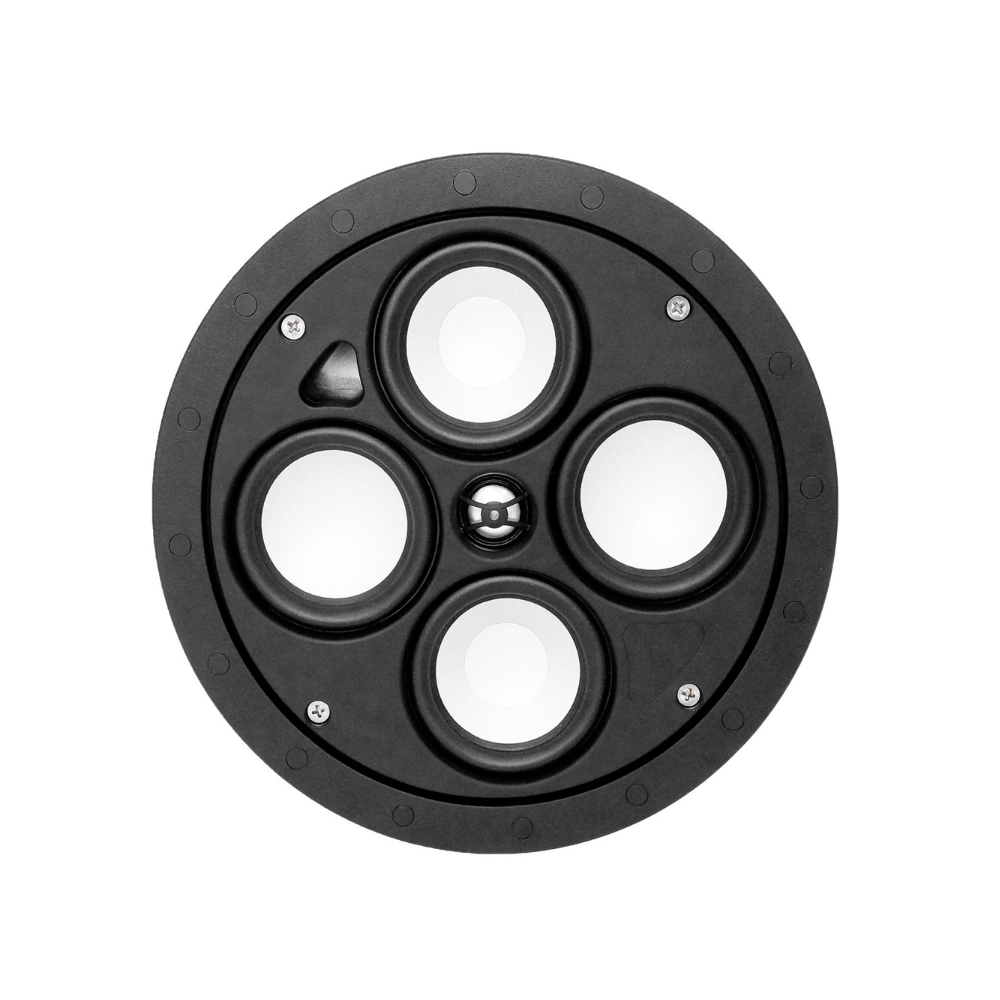

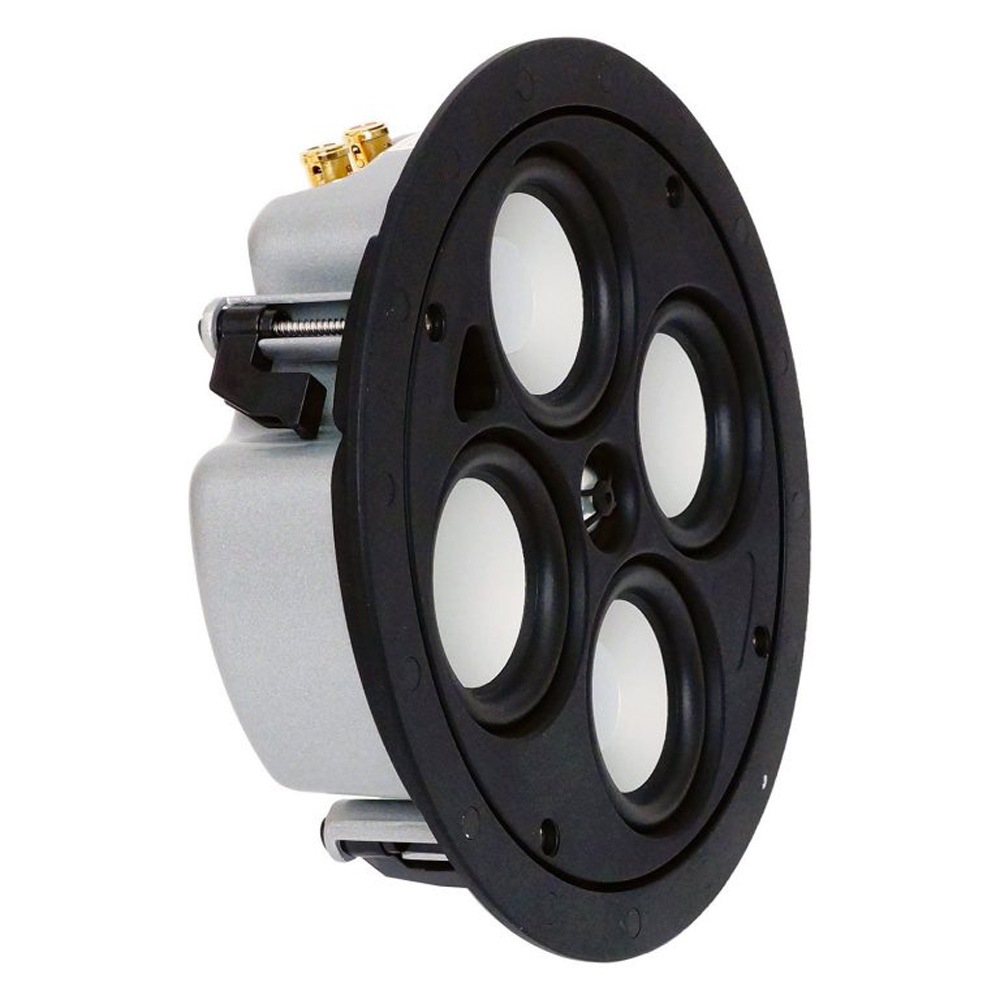

The AccuFit UltraSlim Series features a shallow 2”, steel enclosure to address space limitations, building code requirements, sound transfer to adjoining walls and living environment concerns. The Profile AccuFit UltraSlim Series of shallow depth, fully enclosed speakers ensure that the drivers have the proper amount of air space to deliver the best performance regardless of the installation environment.
FEATURES
- 3-Way, Shallow-Depth, Tuned Port, Magnetically Shielded Steel Enclosure
- Flangeless Appearance with Magnetically Attached Full Coverage Steel Grille
- Two 3” Custom Aluminum Inverted Dome Woofers
- Two 3” Custom Aluminum Inverted Dome Midrange Drivers
- 3/4” Aluminum Tweeter
- Extreme, Shallow-Depth Mounting Capability, Needing only 2” (51mm) of Depth
- Sensitivity: 90dB 1W/1m
- Timbre-Matched to All THREE Series Speakers
- Power Handling: 60 Watts
- Impedance: 8 Ohm
- Frequency Response: 90Hz – 20kHz
- STL (Sound Transmission Loss) Feature, 20dBA Sound Reduction / Measuring signal: Pink Noise
- Diameter x Depth: 9 15/16” x 2” (252mm x 51mm)
- Cut-Out Diameter: 8 1/4” (210mm)
OTHER SPECIFICATIONS
| General | |
| Family | Profile Specialty |
| Woofer Size | 3 (Inches) |
| Woofer Construction | Two 3″ Custom Aluminum Inverted Dome Woofers |
| Midrange Driver | Two 3″ Custom Aluminum Inverted Dome Midrange Drivers |
| Tweeter | 3/4″ Aluminum Tweeter |
| Frequency Response | 90Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 60 (Watts) |
| Sensitivity | 90 (dB) |
| Timbre | Timbre-Matched to All THREE Series Speakers |
| Dimensions | Diameter x Depth: 9 15/16″ x 2″ (252mm x 51mm) |
| Hole Cutout Dimensions | 8 1/4″ (210mm) |
| Shipping Info | |
| Length | 11.9 (Inches) |
| Width | 11.9 (Inches) |
| Height | 6.1 (Inches) |
| Weight | 4.9 (Lbs) |
| Unit of Measure | Each |
| UPC | 664254021312 |
| Master Pack Qty | 4 |
