EL-600-IW-6

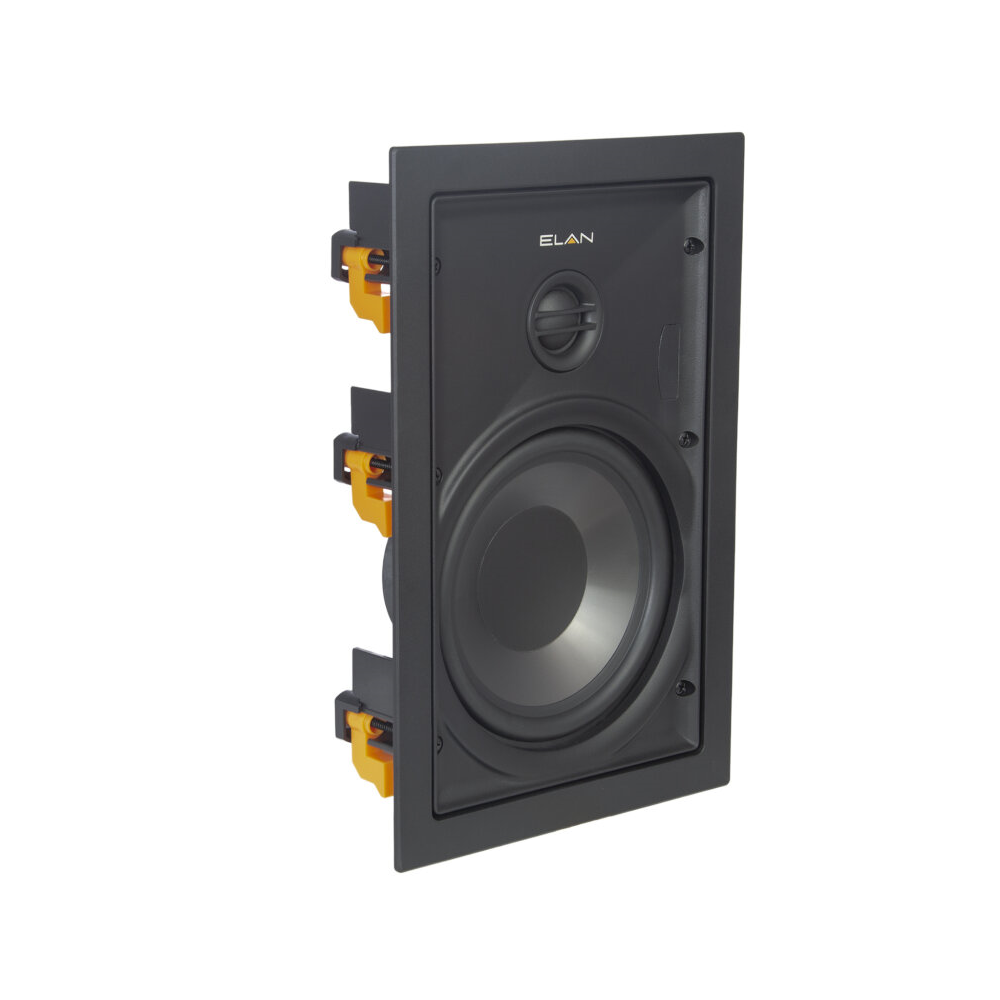

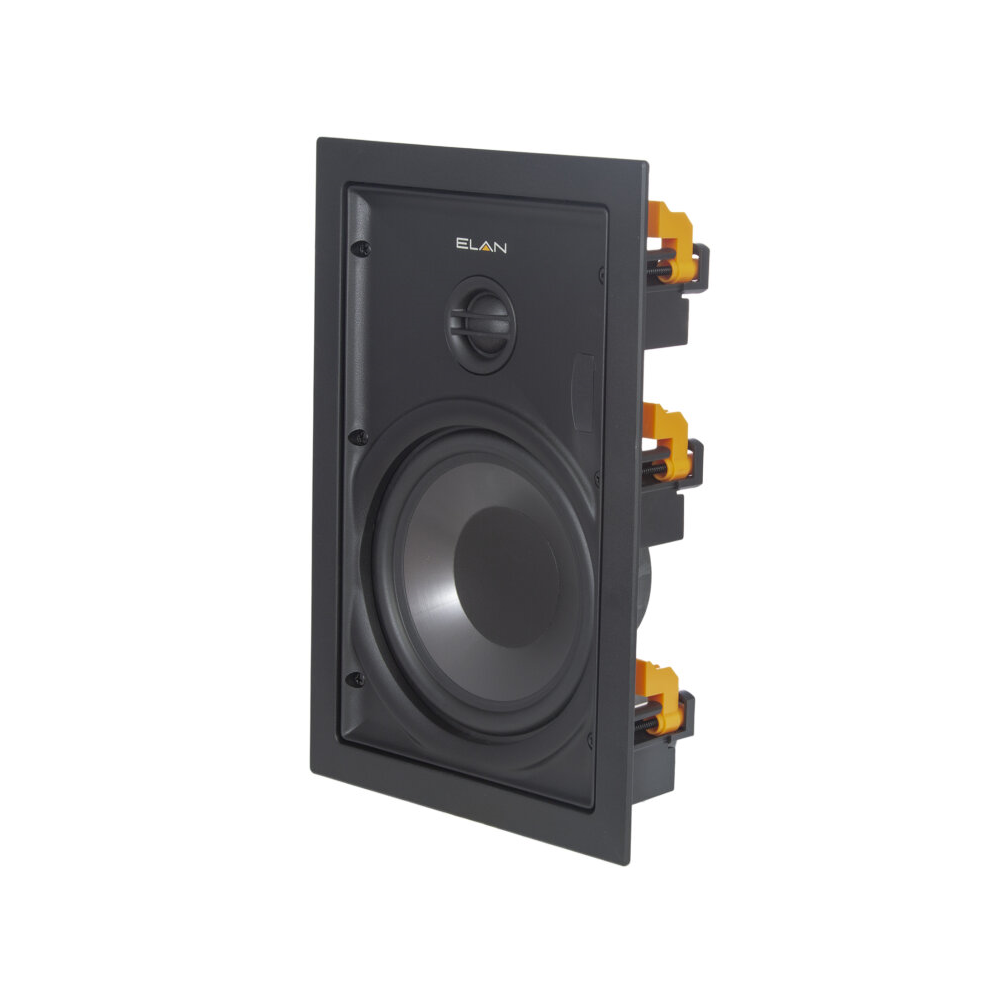

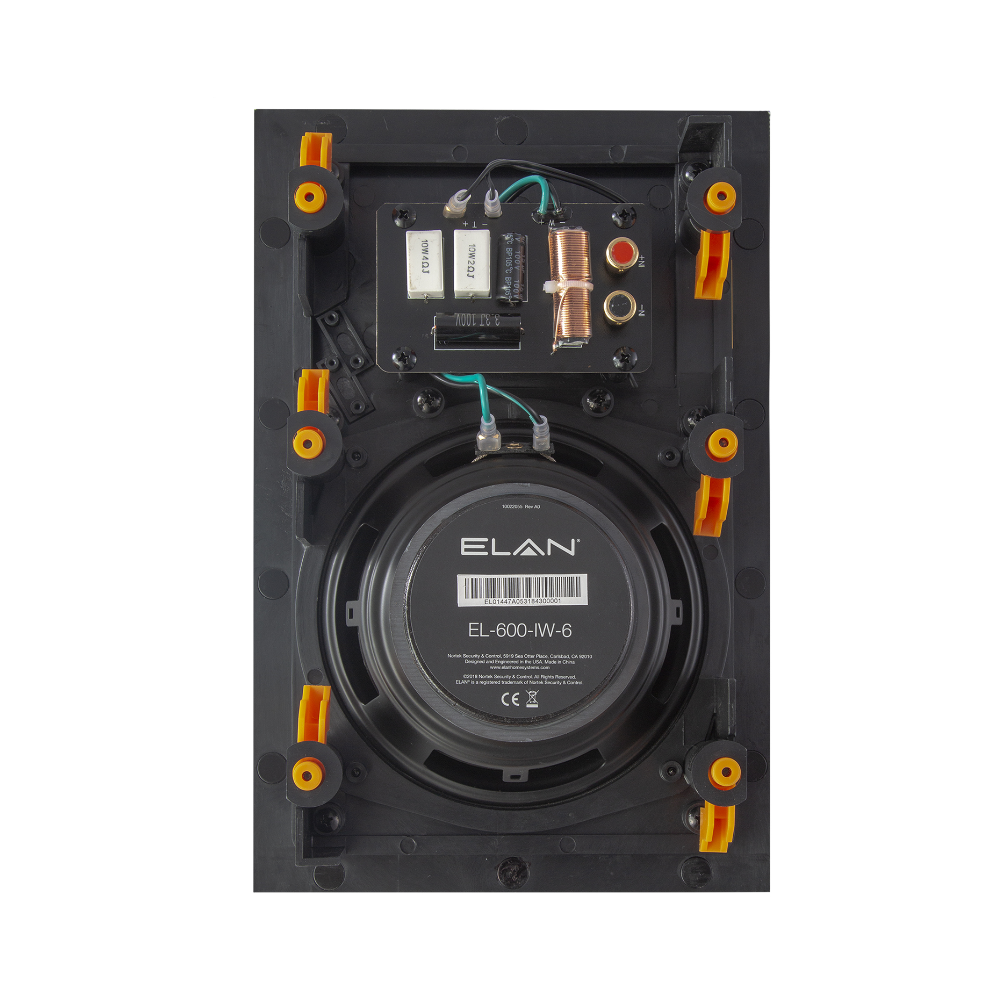

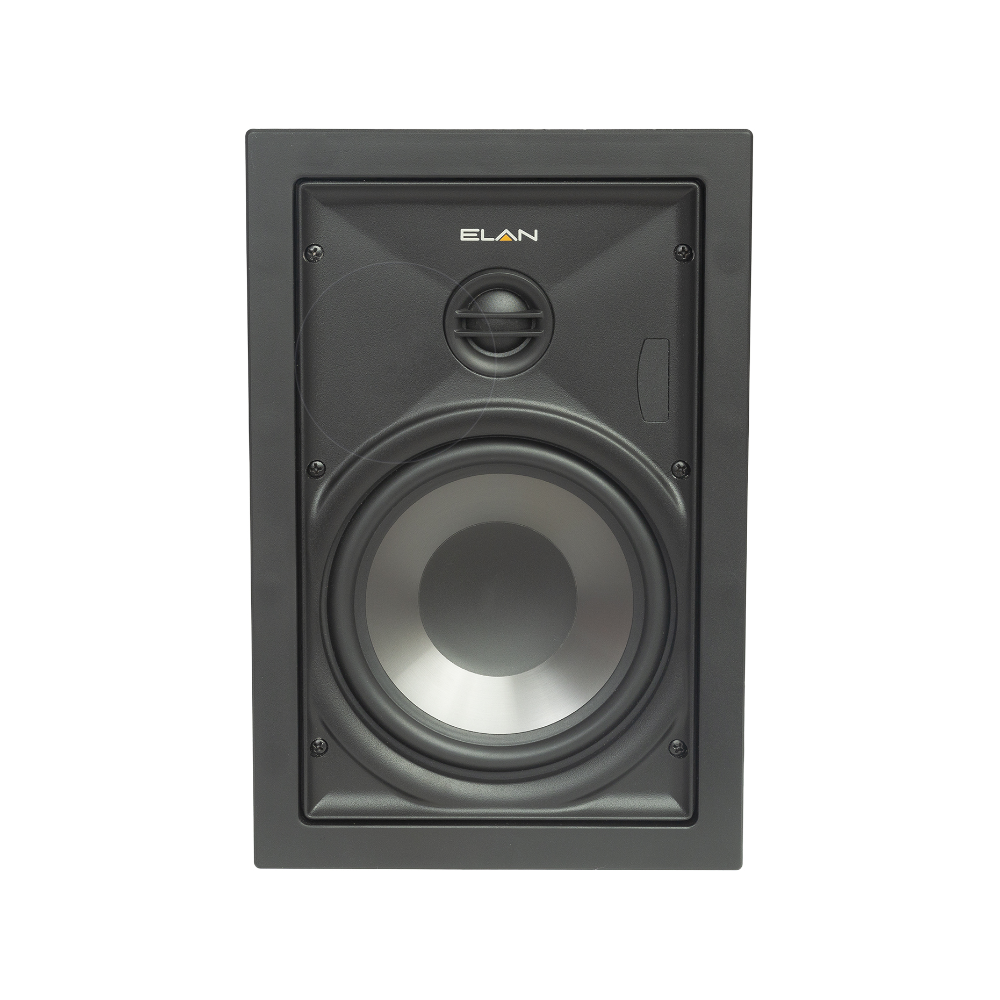

ELAN 600 Series 6-1/2″ (160mm) In-Wall Speakers (Pair)

Kategoriler
  • Genel
  • Mekanik
  • PRO-AV
    • Audio Product
      • Audio Converter
      • Audio Monitor
      • Audio Processor
      • Audio Splitter
      • Audio Switcher
      • Dolby Digital Decoder
      • Power Amplifier
      • Speaker
    • Converter
    • Digital Signage
    • Display
    • Extender
    • Matrix
    • Others
    • Scaler
    • Splitter
    • Streamer
    • Switcher
    • Video Conference
    • Videowall
  • Test ve Ölçü
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • OTHER SPECIFICATIONS
  • DOWNLOADS

A multipurpose speaker with step-up performance, the EL-600-IW-6 includes an upgraded injection molded polypropylene cone woofer and pivoting 1″ silk dome tweeter that’s perfect for distributed audio or home theater.

FEATURES

Room Filling Sound
Low Crossover points and a woofer that’s mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Silky Smooth Highs
Silk dome tweeters reduce the severity of break-up modes resulting in silky smooth sound which is pleasing to the ear- even at high volumes

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Secure Connection
All Nice/ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All Nice/ELAN Architectural speakers are backed by a limited lifetime warranty

SPECIFICATIONS

Woofer Size: 6-1/2″ / 160mm
Woofer Construction: Injection Molded Polypropylene Cone
Tweeter: 1″ / 25mm Pivoting Silk Dome
Frequency Response: 51Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 110 (Watts)
Sensitivity: 88 (dB)
Timbre: Timbre-Matched to all 600 Series Speakers
Dimensions: 7.9″ / 200mm Width x 11.9″ / 303mm Height x 3.2″ / 86mm Depth
Hole Cutout Dimensions: 6.75″ / 172mm Width 10.9″ / 276.3mm Height
Mounting Depth: 3.3″ / 83mm

OTHER SPECIFICATIONS

General

  • Woofer Size6.5 (Inches)
  • Shipping Info
  • Length13.5 (Inches)
  • Width10 (Inches)
  • Height10.04 (Inches)
  • Weight4.7 (Lbs)
  • Unit of MeasurePair
  • UPC844039014474

Other Specifications

  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Injection Molded Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Silk Dome
  • Frequency Response 51Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 110 (Watts)
  • Sensitivity 88 (dB)
  • Timbre Timbre-Matched to all 600 Series Speakers
  • Dimensions 7.9″ / 200mm Width x 11.9″ / 303mm Height x 3.2″ / 86mm Depth
  • Hole Cutout Dimensions 6.75″ / 172mm Width 10.9″ / 276.3mm Height
  • Mounting Depth 3.3″ / 83mm

Proposition 65 Warning

  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

DOWNLOADS

ELAN EL-600-IW-6 Datasheet
