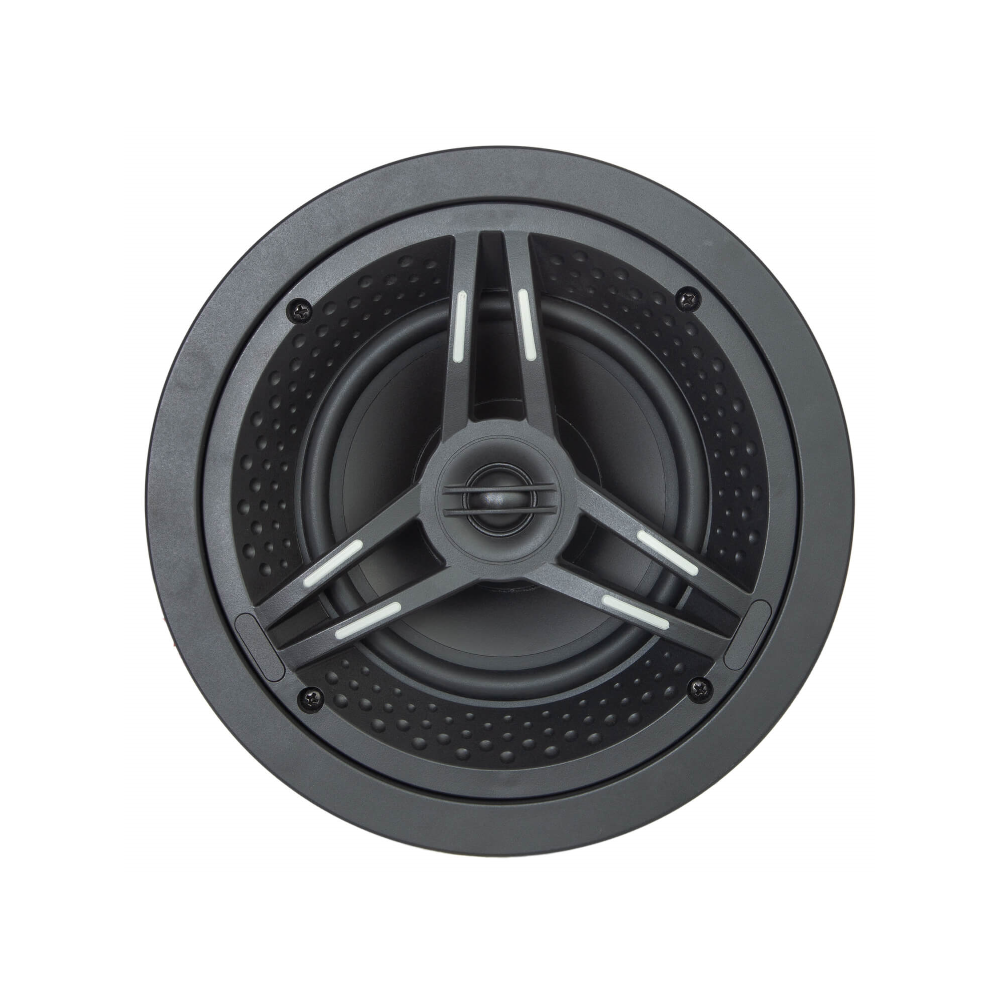

Featuring a 6 ½ -inch poly woofer cone, and ½-inch silk tweeter, the DX-EC6 In-Ceiling Speakers are ideal for ambient music applications where reliable and consistent performance is desired.
FEATURES
6 1/2-Inch Polypropylene Woofer
Low Crossover points and a poly woofer that’s mounted as close to the surface as possible delivers reliable and consistent performance
1/2 ” Silk Dome Tweeter
Silk dome tweeters deliver silky smooth highs which are pleasing to the ear
Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area sound stage control, even when the speaker is mounted in less than ideal locations
Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor
Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes
Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.
Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Stage E series speaker
SPECIFICATIONS
- Woofer Size: 6-1/2″ / 160mm
- Woofer Construction: Polypropylene Cone
- Tweeter: 1/2″ / 13mm Fixed Silk Dome
- Frequency Response: 52Hz-20kHz
- Impedance: 8 (Ohms)
- Power Handling: 100 (Watts)
- Sensitivity: 88 (dB)
- Timbre: Timbre-Matched to all Evoke Series Speakers
- Dimensions: 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
- Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter
- Mounting Depth: 3.7″ / 94mm
OTHER SPECIFICATIONS
| General | |
| Woofer Size | 6.5 (Inches) |
| Shipping Info | |
| Length | 13.1 (Inches) |
| Width | 16 (Inches) |
| Height | 11.4 (Inches) |
| Weight | 3.88 (Lbs) |
| Unit of Measure | Pair |
| UPC | 844039014405 |
| Other Specifications | |
| Woofer Size | 6-1/2″ / 160mm |
| Woofer Construction | Polypropylene Cone |
| Tweeter | 1/2″ / 13mm Fixed Silk Dome |
| Frequency Response | 52Hz-20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 100 (Watts) |
| Sensitivity | 88 (dB) |
| Timbre | Timbre-Matched to all 400 Series Speakers |
| Dimensions | 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth |
| Hole Cutout Dimensions | 8-1/4″ / 210 mm Diameter |
| Mounting Depth | 3.7″ / 94mm |
| Proposition 65 Warning | |
| Warning: | WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
