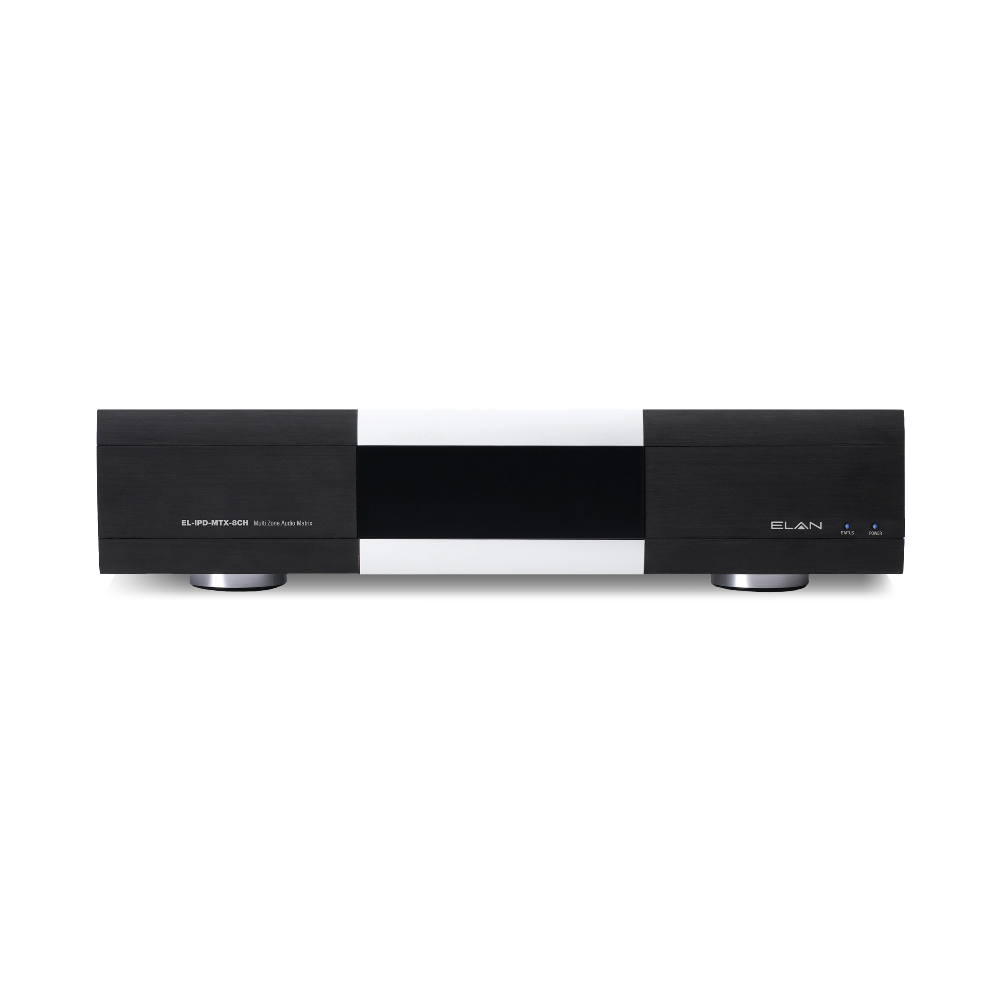

EL-IPD-MTX-8CH
Multi Zone Audio Matrix Amplifier

Important Note: EL-IPD-MTX-8CH replaces the S86A. Reach out to your RSM for any questions.

The EL-IPD-MTX-8CH Multi Zone Audio Matrix amplifier can be used in a stand-alone configuration or with other amplifiers and pre-amps within the Nice/ELAN IP audio distribution family of products by adding the optional Dante™ Audio Networking Card.

Important Note: EL-IPD-MTX-8CH replaces the S86A. Reach out to your RSM for any questions.

The EL-IPD-8CH-MTX amplifier can be used in stand alone mode to support up to 13 input sources (4 digital, 8 mono / 4 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an Nice/ELAN System Controller). Each RCA analog input can be configured with another as a L/R pair or individually as mono. 8 speaker channels are available (up to 4 stereo zones or 8 mono zones). 4 line level outputs can be configured as up to 4 mono or 2 stereo output zones or as sub-woofer out. Each can be configured as left, right, mono, or sub out.

Adding the optional Dante™ Audio Networking card connects sources to and from other Dante™ enabled Nice/ELAN IP amplifiers using existing networks.

ELAN IP enabled audio distribution simplifies whole home audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, Nice/ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.

FEATURES

  • 4 Stereo or 8 Mono Amplified Zones and 2 Stereo or 4 Mono Pre-amp Zones
  • Expandable with Additional Chassis and Optional Dante Network Audio Card
  • 80WPC at 8Ω, 100WPC at 4Ω
  • 2 Optical, 2 Co-ax, and 4 Stereo / 8 Mono Analog Inputs
  • DSP with 5-Band EQ for Each Zone
  • Lip Sync Correction

SPECIFICATIONS

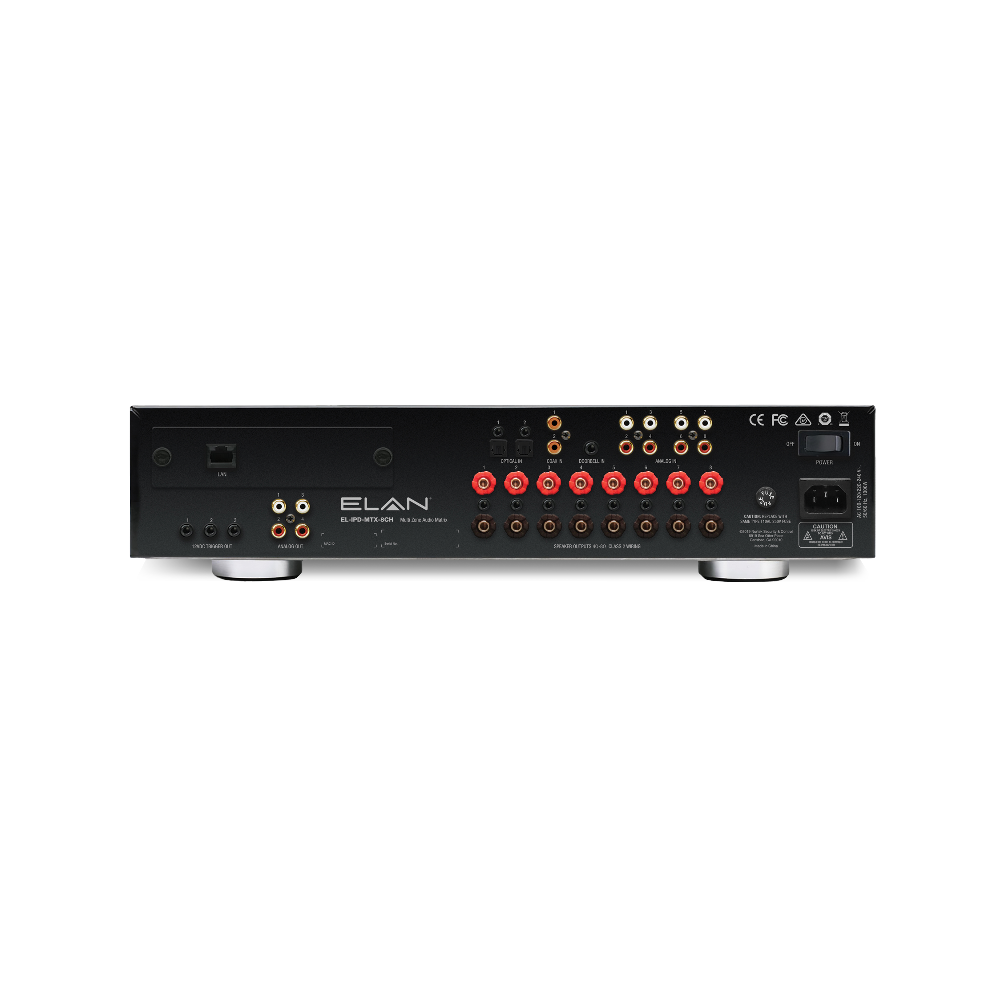

Digital Audio Inputs: 2 Optical TOSLINK Inputs

  • 2 Coaxial RCA Inputs
  • Stereo, PCM, 96kHz, 24-bit

Line Level Audio Inputs:4 Stereo / 8 Mono Analog RCA Inputs

  • Configurable to Left, Right, or Mono
  • Max input level: 2.0 VRMS
  • Input Sensitivity: 0dbV (1.0 VRMS)
  • Input Impedance: 47kΩ-49k Ω

Doorbell Audio Input:3.5mm Stereo Input

  • Maximum input level: 2.0 VRMS
  • Input sensitivity: 0dbV (1.0 VRMS)
  • Input impedance: 47k Ω to 49k Ω

Line Level Audio Outputs:Stereo / 4 Mono Analog RCA Pre-amp Outputs

  • Configurable to Left, Right, Mono, or Sub-woofer
  • Fixed or variable line level output Fixed: 0 dB nominal gain
  • Variable: -50 to +0dB at 0.5dB per step Unbalanced
  • Output impedance: 470 Ω

Amplifier Output :4 Stereo / 8 Mono Amplified Outputs

  • Configurable to Left, Right, or Mono
  • Output Power: 80W at 8Ω, 100W at 4Ω
  • THD: < 0.05% @ 1kHz :Frequency Response: 20Hz to 20kHz, +.5dB/-.5dB :Crosstalk: >60dB @ 1kHz/1W
  • Signal to Noise: >100dB

Lip Sync Delay:Individual Lip Sync Delay for Each Speaker and Preamp Zone

  • Delay Time: 0 – 400ms
  • Adjustable: 10ms increments

Tone Control:Individual Tone Control for Each Speaker and Preamp Zone

  • Five-band equalizer
  • Loudness on/off
  • High/Low pass
  • Adjustable Crossover Points

Trigger Outputs :3.5mm Mono

  • Zone Trigger / System Trigger Outputs
  • Pinout: Tip = signal, Sleeve = ground
  • Output: +12Vdc, 100mA current limit

Network :1 RJ45 Jack 100/1000 Ethernet DHCP Enabled by Default

Power:AC 100-120 / 220-240 V~ 50/60Hz, 1000W

Temperature:Operating Temperature: +5° C – +45° C (+41°F – +113°F)

  • Operating Humidity: 0 – 90% non-condensing
  • Storage Temperature: 0° C – +60° C (32°F – +140°F)

Dimensions:17D X 17W X 4H in. / 431.8D X 431.8W X 101.6H mm (with feet)

  • 17D X 17W X 3.5 in. / 431.8D X 431.8W X 88.9H mm (without feet)

Weight:21.9 lbs / 9.93 Kg
