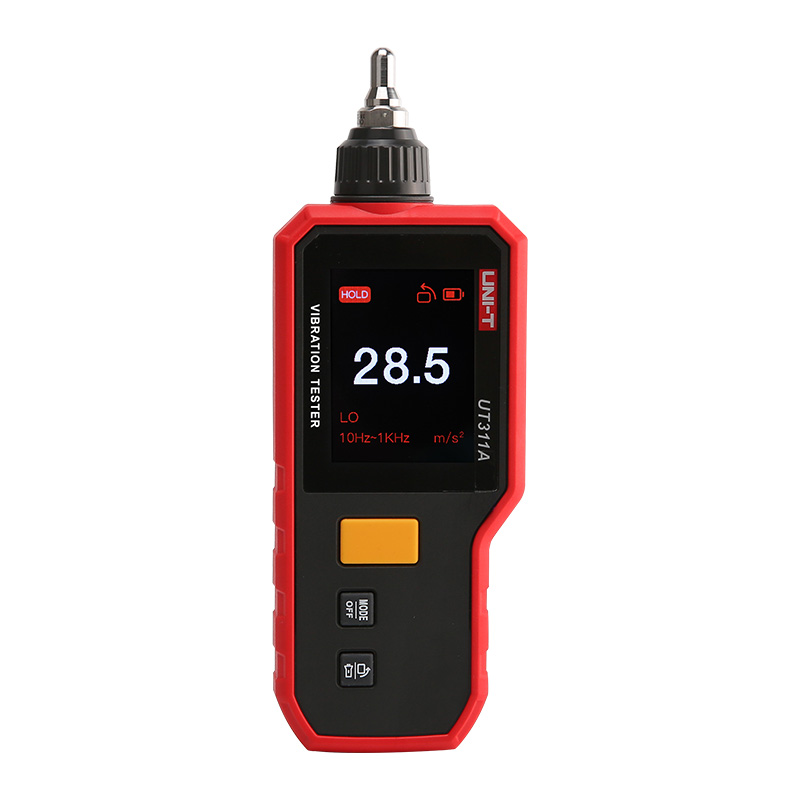

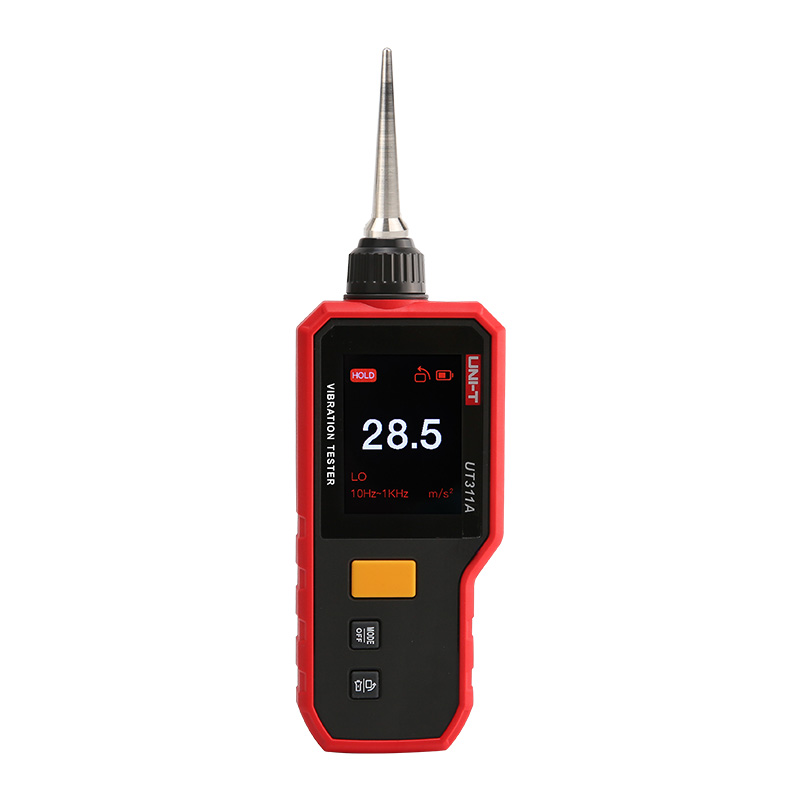

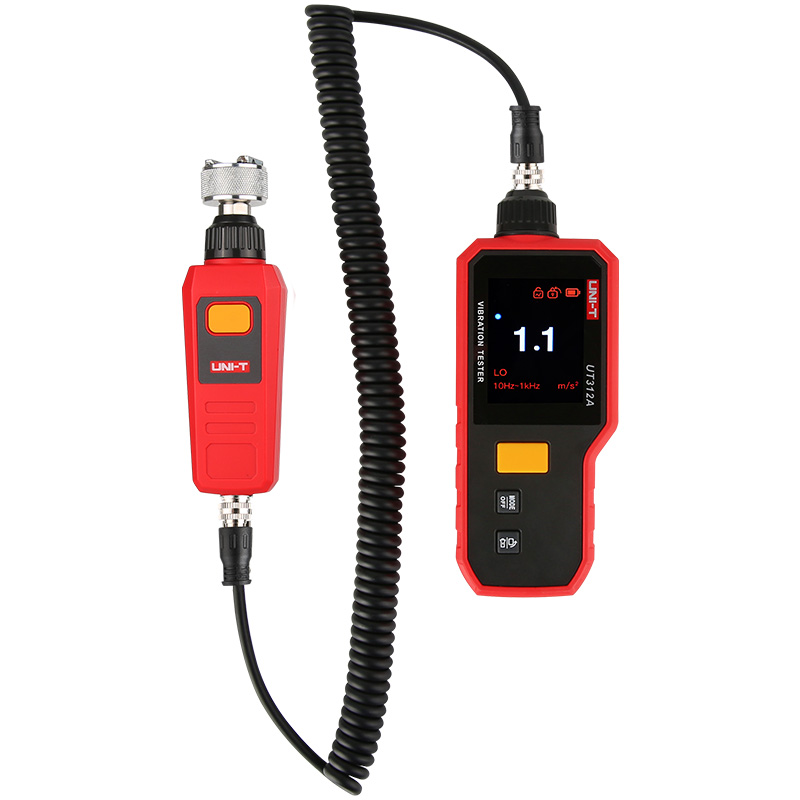

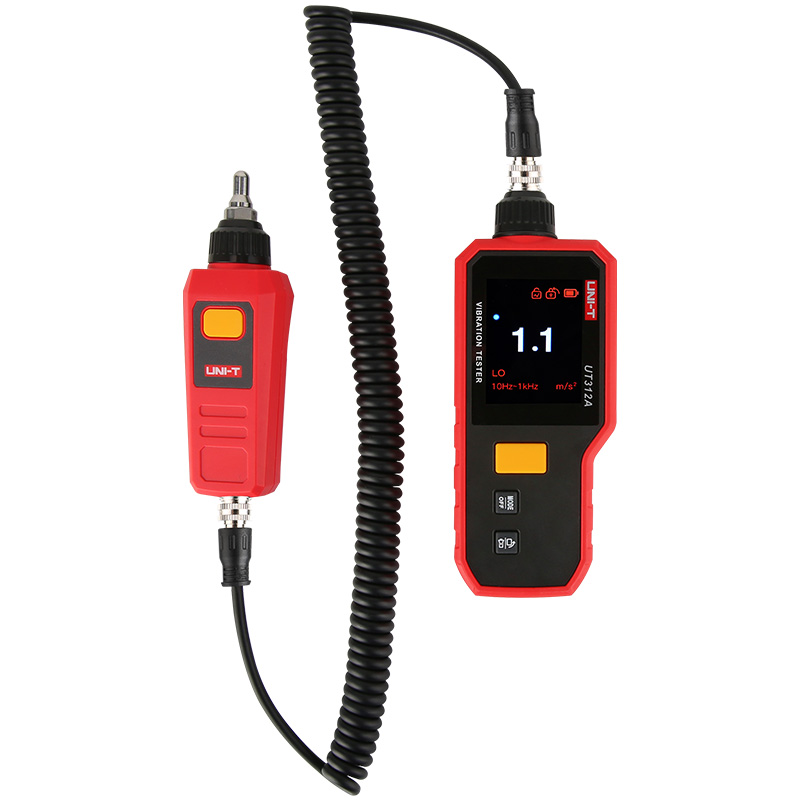

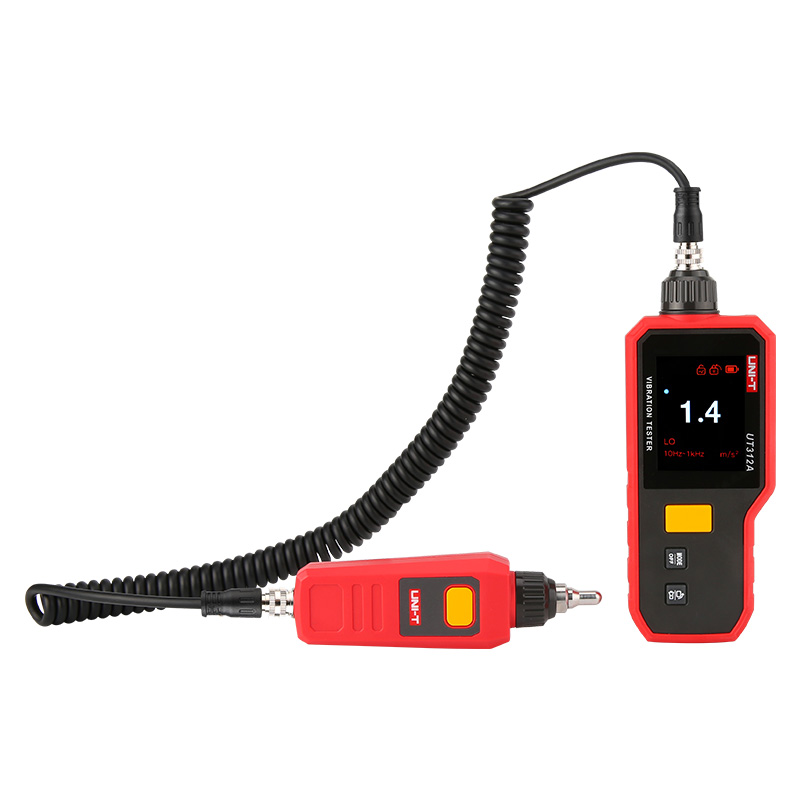

UT310A Series
Vibration Testers

UT310A seires is a handheld vibration tester which consists of acceleration sensor and digital display circuit. It is mainly used to measure vibration acceleration, velocity and displacement of mechanical equipment. It has the advantages of wide range, easy operation and convenient carrying. It is an ideal inspection tool that can be used for patrol detection of equipment vibration in power, metallurgic and petrochemical industries.

Models: UT311A, UT312A

Features of UT310A Series Vibration Testers

Certificates: CE, UKCA

Languages: EN, FR, DE, IT, ES, SV, PL, CZ

  • Acceleration/velocity/displacement measurement
  • High/low frequency acceleration modes
  • Multiple probes
  • High sensitivity sensor
  • Come with flashlight
  • LCD TFT and automatically rotatable screen
  • Rechargeable lithium battery
  • Simple design and compact structure

SPECIFICATIONS

Specifications of UT310A Series Vibration Testers

Sepecification UT311A UT312A
Parameter Range Frequency Resolution Accuracy
Acceleration(PEAK) 0.1-199.9m/s² LO: 10Hz-1kHz 0.1m/s² ±(5%+2dgts)
HI: 1kHz-15kHz
Velocity(RMS) 0.1-199.9mm/s 10Hz-1.5kHz 0.1mm/s
Displacement(P-P) 0.001-1.999mm 10Hz-1kHz 0.001mm ±(10%+2dgts)
Automatically rotatable screen √
High/Low frequency acceleration √
Datahold √
Flashlight √
LCD type 2.4″ TFT color screen, full view
LCD backlight √
Auto power off 5 minutes without operation
Probes Long and short probes (optional), magnetic sucker (UT312A only)
Battery indication √
Battery type 1350mAh/3.7V lithium battery
Charging interface Type-C
Charging voltage DC 5V
Charging time About 3h
Battery duration About 12h
Operating temperature and humidity 0℃~40℃; ≤80%RH, non-condensing
Storage temperature -20℃~60℃
General Characteristics
Standard accessories Long and short probe, U-type magnetic sucker (UT312A only), USB-C charging cable, User manual, Safety instructions
Productsize UT311A: 180×28×64mm (including the short probe); UT312A: 168×28×64mm
Product weight UT311A: About 191g (including the short probe); UT312A: About 364g (including the short probe)

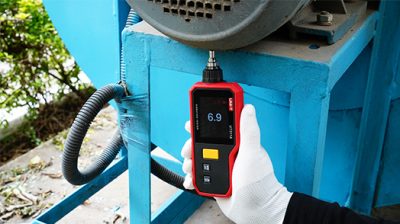

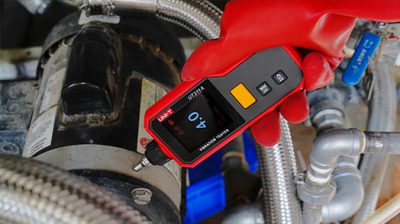

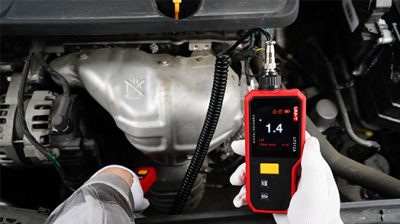

APPLICATIONS

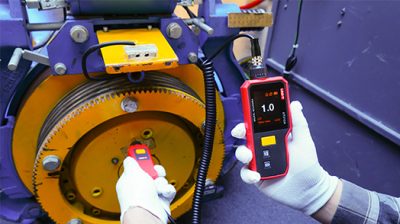

Applications of UT310A Series Vibration Testers
