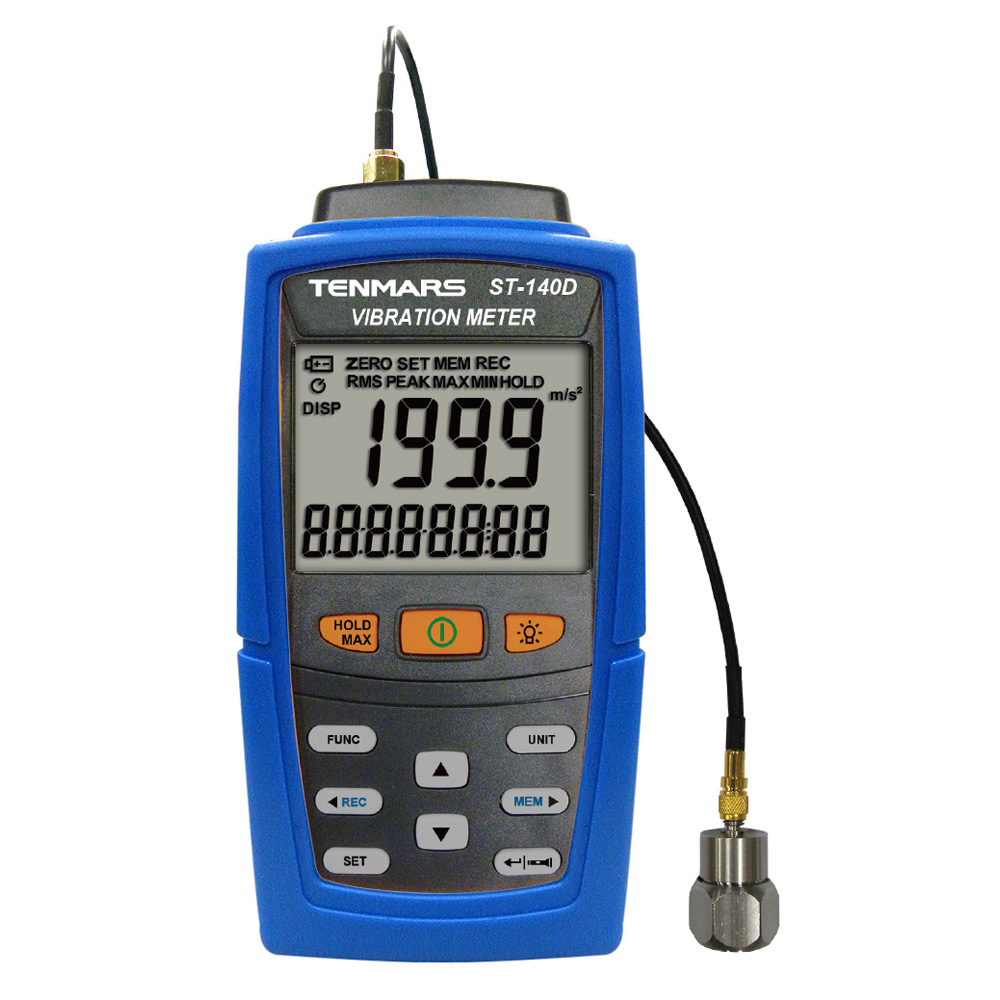

APPLICATION
This meter measures the vibrations of the rotating and reciprocating machines, as well as bearing damage, measurement items are acceleration, speed, displacement, which can check if the machine is to be repaired or upgrade.
FEATURES
-
The maximum display of the LCD is 1999.
-
Measurement item: VEL (velocity) / ACC (acceleration) / DISP (displacement).
-
Function: Acceleration (RMS, PEAK, MAX HOLD, HOLD).
Velocity (RMS, PEAK, MAX HOLD, HOLD).
Displacement (P-P, MAX HOLD P-P, HOLD). -
Unit: Acceleration: m/s², g, ft/s². Velocity: mm/s, cm/s, inch/s. Displacement: mm, inch.
-
Vibration sensor with magnetic adapter on1.2M (47.2) cable
-
Frequency Lo range :10Hz~1KHz meets ISO 2954 measurement
Hi range : 10Hz~5KHz -
Overload display: “OL”.
-
Offset adjustment used for zero function
-
Auto power (15 minutes) and disable auto power off.
-
Resolution:0.1m/s²,0.01g,1ft/s²,0.1mm/s,0.01cm/s,0.01inch/s,0.001mm,0.001inch
-
High sensitivity probe head for accurate measurement.
-
Provides long and short probe head.
-
Frequency LO range: 10Hz-1KHz
-
Stores 99records manually.(ST-140)
-
Data logger with 9999 records capacity.(ST-140D)
-
USB interface.(ST-140D)
SPECIFICATIONS
-
Dimensions:156x73x35mm(length x width x height).
-
Weight: Approximately 400 grams.(inchluding holster and accelerometer)
Electrical Specifications
Accurate environmental conditions are: 23°C ± 3°C and RH <80%
Accurate environmental conditions are: 23°C ± 3°C and RH <80%
|
Acceleration (RMS,PEAK,MAX HOLD) 1g=9.81m/S²
|
|||
|
Range
|
0.5~199.9 m/S²
|
0.05~20.39g
|
2〜656 ft/S²
|
|
Resolution
|
0.1 m/s²
|
0.01g
|
1 ft/S²
|
|
Accuracy
|
±(5%+5d)
@79.4Hz and 158Hz |
±(5%+5d)
@79.4Hz and 158Hz |
±(5%+5d)
@79.4Hz and 158Hz |
|
Calibration point
|
50m/S²
(158Hz) |
50m/S²
(158Hz) |
50m/S²
(158Hz) |
|
Velocity VEL (RMS, PEAK, MAX HOLD)
|
|||
|
Range
|
0.5~199.9mm/s
|
0.05~19.99
cm/s
|
0.02~7.87
inch/s
|
|
Resolution
|
0.1 mm/s
|
0.01cm/s
|
0.01
inch/s
|
|
Accuracy
|
± (5%+5d)
@79.4Hz and 158Hz
|
± (5%+5d)
@79.4Hz and 158Hz
|
± (5%+5d)
@79.4Hz and 158Hz
|
|
Calibration point
|
50m/s
(158Hz) |
50m/s
(158Hz) |
50m/s
(158Hz) |
|
Displacement DISP (P-P, MAX HOLD P-P)
|
|||
|
Unit
|
mm
|
inch
|
|
|
Range
|
0.005~1.999 mm
|
0.002~0.078 inch
|
|
|
Resolution
|
0.001 mm
|
0.001 inch
|
|
|
Degree of error
|
± (5%+5d)@79.4Hz
and158Hz |
± (5%+5d)@79.4Hz
and158Hz |
|
|
Calibration point
|
0.141mm
(158Hz) |
0.141mm
(158Hz) |
|
ACCESSORIES
-
User manual
-
Accelerometer
-
Low noise cable
-
Magnetic base
-
1.5V UM4/AAA battery
-
Carrying case
-
9V AC to DC adaptor
-
USB cable and Installation disk (ST-140D)
-
Handheld probe + round probe + pointed probe
