YS-20

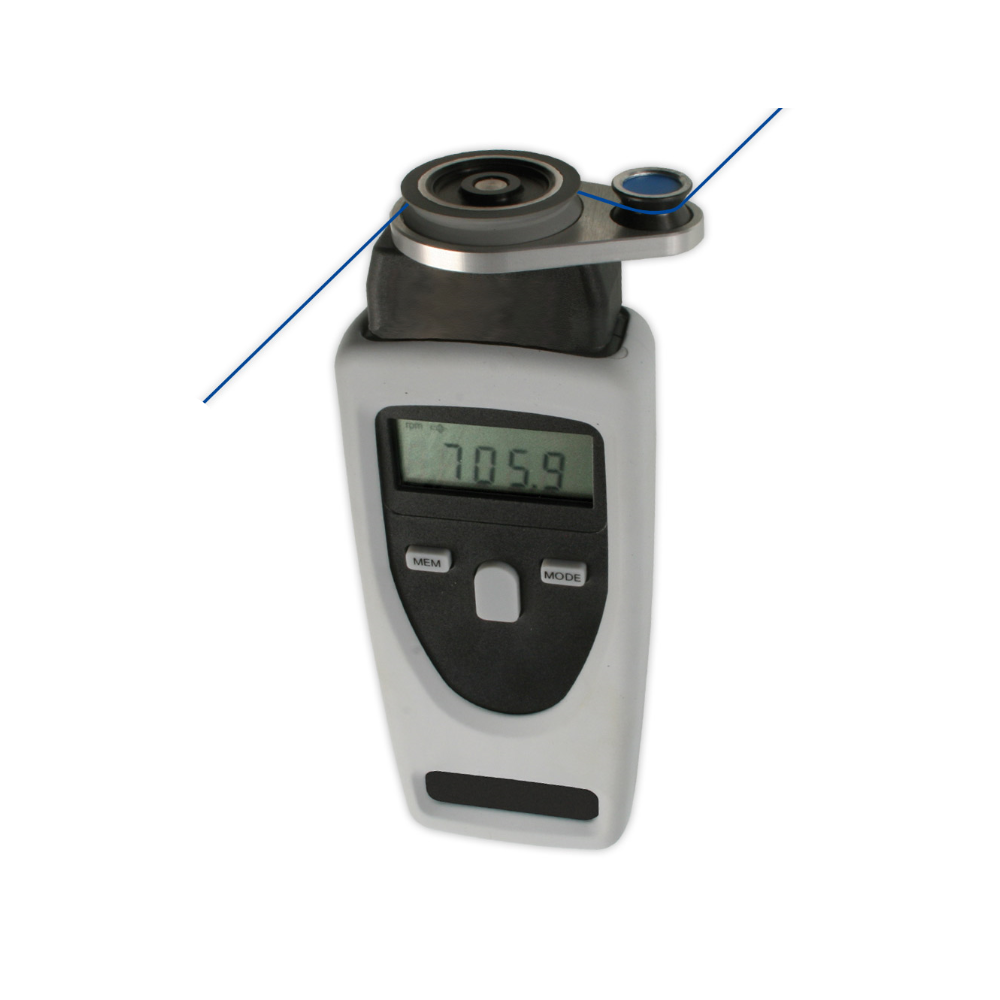

Yarn Speed and Length Meter

Combined hand-held tachometer:
– speed and length meter for filament and similar materials
– hand-held tachometer for contact and non-contact measurement e.g engine shafts

Tachometer with LCD display and 7 selectable measuring units

The most used yarn-speedmeter for circular knitting machines

Special Features

  • The yarn speed and length meter YS-20 combines the function of four separate instruments in one:
    – Speed and length meter
    – contact measuring of revolutions
    – contact measuring of velocity of rotation
    – non-contact measuring of revolutions
  • 2 Slide-in measuring adapters for yarn speed and length meter YS-20 make it simple to convert from contact to non-contact or to speed and length measurement
  • User-selected units
    Linear Speed: meters/min, feet/min, inches/min
    Length: meters, feet, inches
    Revolutions: rpm
  • The measurement is carried out, as long as the measuring key is pressed
  • Built-in memory for minimum, maximum and last values
  • Tachometer with big, easy to ready LCD display
  • Electricity saving electronic assures a long battery durability

Standard Features

  • Easy to use
  • Rugged plastic housing with rubber sheathing for firm and safe handling
  • Easy to read display

 Available Models

Model Application
YS-20 speed and length meter as well as hand-held tachometer

SPECIFICATIONS

Measuring ranges: Yarn speed measurement
0.10 … 1999 m/min
0.40 … 6550 ft/min
4.00 … 78700 in/min
0.10 … 33.30 m/sec
0.10 … 109 ft/sec
Yarn length measurement
0.00 … 99999 m
0.00 … 99999 ft
0.00 … 99999 in
Revolution measurement
Non-contact measurement: 1.00 … 99999 rpm
Contact measurement: 0.10 … 19999 rpm
Accuracy: ±0.2 % of displayed value ±1digit (not length measurement)
Measuring units: Speed: m/min, ft/min, in/min, m/sec, ft/sec
Length: m, ft, in
Revolutions: rpm
Display: 5 digit LCD, 10 mm high – floating decimal point
Measuring system: Speed/Length: Slide-on measuring head with 30 mm diameter measuring wheel and wrapper roller
Non-Contact Tachometer: Visible LED light beam
Contact Tachometer: Slide-on measuring head with cone tip and surface speed wheel (10 cm circumference)
Yarn/wire diameter: Yarn: max. 0.5 mm
Wire: max 0.3 mm
Memory: Min, Max, last reading, all retained in memory for the life of batteries
Sensing distance: Max. 600 mm
Display update time: 1 sec
Auto Power Off: After 30 s of non-use
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Power supply: Batteries 2 x 1.5 V type AA (approx. 20 h continuous use)
Housing material: ABS plastic
Dimensions: 145 x 60 x 30 mm (LxWxH)
Weight, net (gross): Approx. 150 g (700 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

10002R – Rubber Tip

For contact measurement of revolutions (rpm)
Order number: 10002R









 10004R – Funnel

For contact measurement of revolutions (rpm)
Order number: 10004R







 10003R – Extension

100 mm long
Order number: 10003R



 10001S – Rubber Measuring Wheel with 10 cm circumference

for measurement of line speed
Order number: 10001S







 10002S – Rubber Measuring Wheel with 6 inch circumference

for measurement of line speed
Order number: 10002S

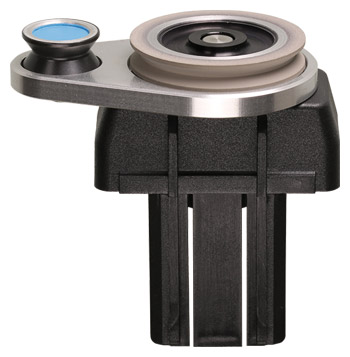

 YS-F – Yarn Measuring Adapter

Yarn measuring adapter with rubber coated measuring wheel and unique “wrapper” roller for speed and length measurement of filaments (max. 0.5 mm Ø) or thin, flexible wires (max. 0.3 mm Ø). This precision roller directs the filament on to the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage.
Order number: YS-F

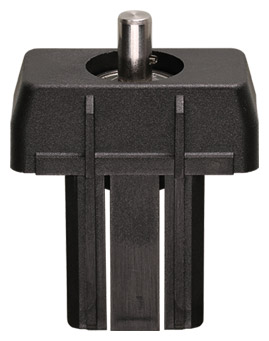

 10006R – Adapter

For contact measuring
Order number: 10006R

















 Reflective Tapes

10 strips with reflective tapes for non-contact measuring

SPARE PARTS

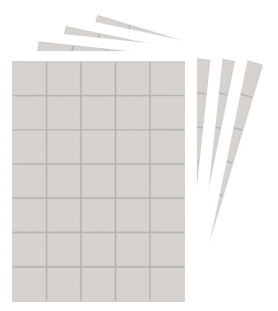

10009S – Reflective Tape Set

Set with 140 self-adhesiv reflective tapes, (1 Set = 4 x 35 pieces)
