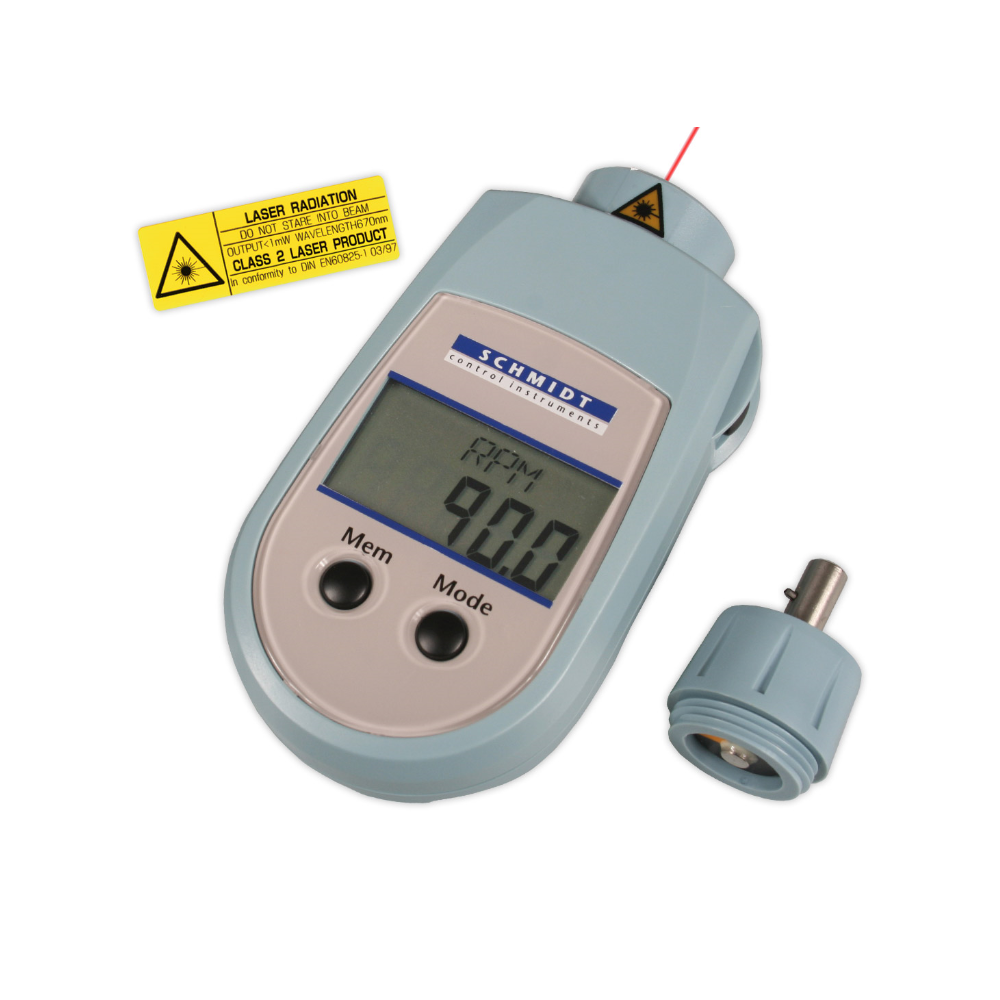

PH-200LC
Tachometer

Hand-held tachometer for contact measurement and non-contact measurement of revolution of engines or shafts as well as surface speed and length e.g. belts and conveyer belts

Tachometer with 10 selectable measuring units and memory

Low cost and efficient hand-held model

Special Features

  • Hand-held tachometer PH-200LC for non-contact measurement of revolutions and contact measurement of revolutions, line speed and length with an adapter;
    the measurement is carried out, as long as the measuring key is pressed

Non-contact measurement of revolutions, using a laser beam and reflective tape

Contact measurement of revolutions, surface speed and length

  • For accurate measuring of
    – revolutions per minute
    – total revolutions
    – length and velocity in different metric and English units
  • Bright, harmless laser beam
  • 10 user selectable measuring units ( rpm; rev; m/min; in/min; yd/min; ft/min; m; in; ft; yd)
  • Hand-held tachometer with automatic and manual memory (MAX, MIN, mean, last and 10 separate readings) or recall in display
  • Tachometer with big, easy to ready LCD display
  • Electricity saving electronic assures a long battery durability
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Standard Features

  • Tachometer with handy and ergonomically housing design
  • Easy to use
  • Rugged, handy lightweight plastic housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model Application
PH-200LC contact measuring and non-contact
Alternative
PH-200L non-contact
PH-100A contact measuring

SPECIFICATIONS

Measuring range:
(floating decimal point)		 Revolution (non-contact): 6 – 99999 rpm
Revolution (contact): 6 – 25000 rpm
Revolution(counter): 1 – 99999 rev
Speed: 1 – 3810 m/min; 36 – 99999 in/min; 3 – 12500 ft/min; 1.0 – 4167.0 yd/min
Length: 0.2 – 99999 m; 0.5 – 99999 ft; 0.01 – 99999 yd
Accuracy: Revolution: 6 – 599 ±1 rpm ±1 digit
600 – 25000 rpm ±2 ±1 digit
25001 – 9999 ±0.01 % of reading ±1 digit
Speed and length: ±0.4% of reading ±1 digit
Measuring units: Revolution: rpm
Total rotations (counter): rev
Speed: m/min; ft/min; yd/min; in/min
Length: m; ft; yd
Memory: 14 readings (10 readings MAX, MIN, mean and last) for 5 min after last use
Laser, class 2: Output<1 mW, wavelength 760 nm, max. measuring distance 2 m
Resolution: Length: 0.02362 m/Impulse (with adapter),
revolution: 1 Impulse/revolution (with adapter)
Display: 5 digit LCD 12 mm high
Display update: 1 s
Over range indicator: ”OVR” is flashing in the display
Auto power off: After 5 min of non-use
Power supply: 3 x 1.5 V Type AA, approx. 35 h continuous use
Low battery indicator: ”LO BAT” flashes in the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing: Polyamide, fiber-reinforced
Dimensions: 149 x 64 x 31 mm (LxWxH)
Weight, net (gross): Approx. 180 g (400 g)

Specifications subject to change without notice!

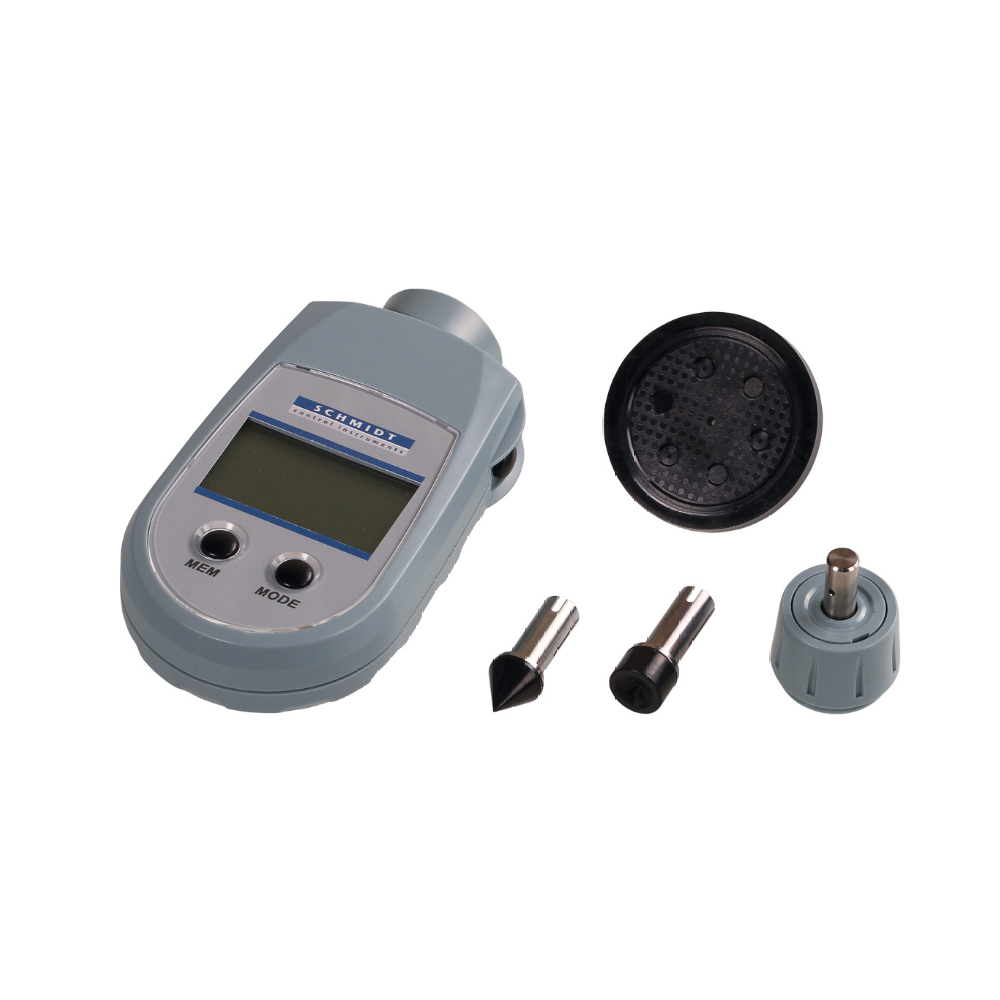

STANDARD ACCESSORIES

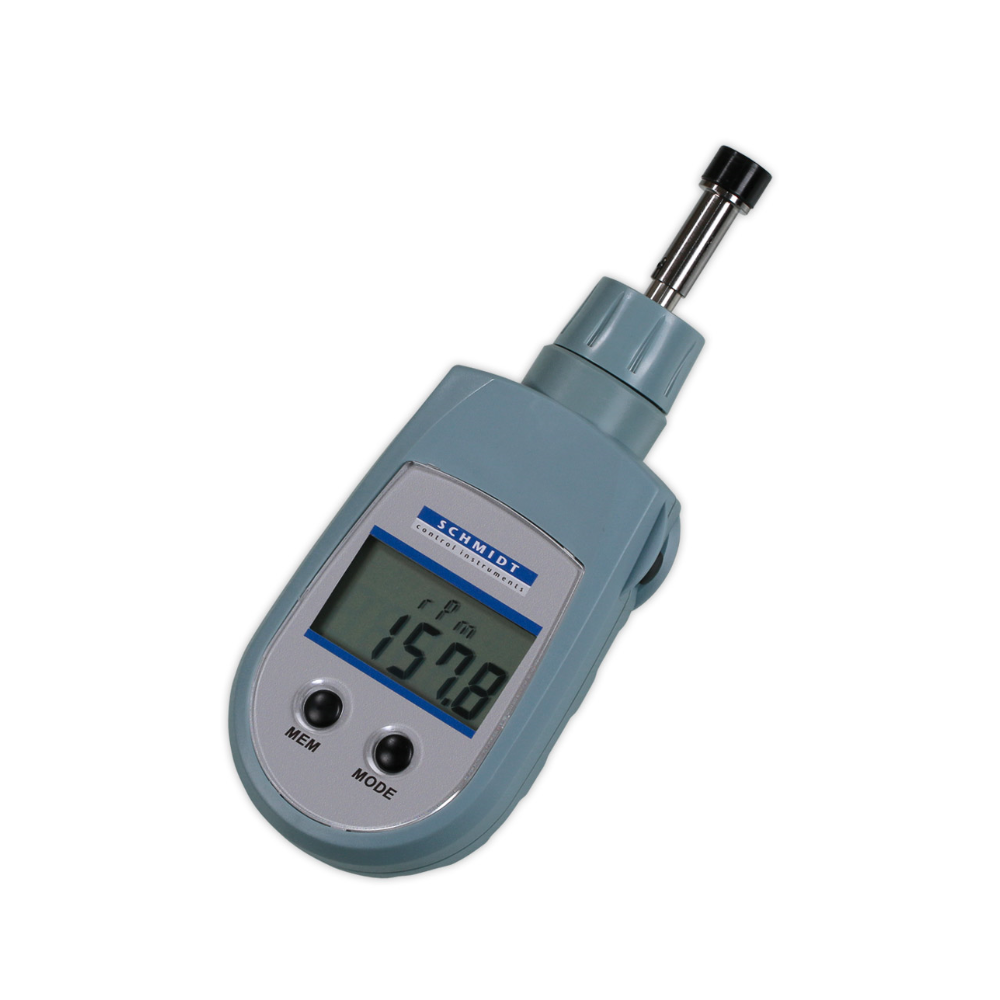

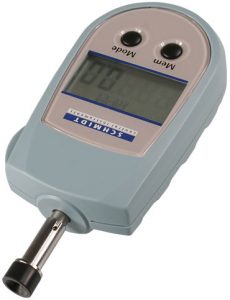

10006S – Rubber Tip

Tip for contact measurement of revolutions (min-1)
Order number: 10006S

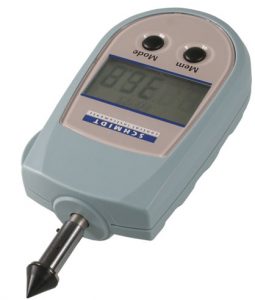

 10007S – Funnel Tip

Tip for contact measurement of revolutions (min-1)
Order number: 10007S

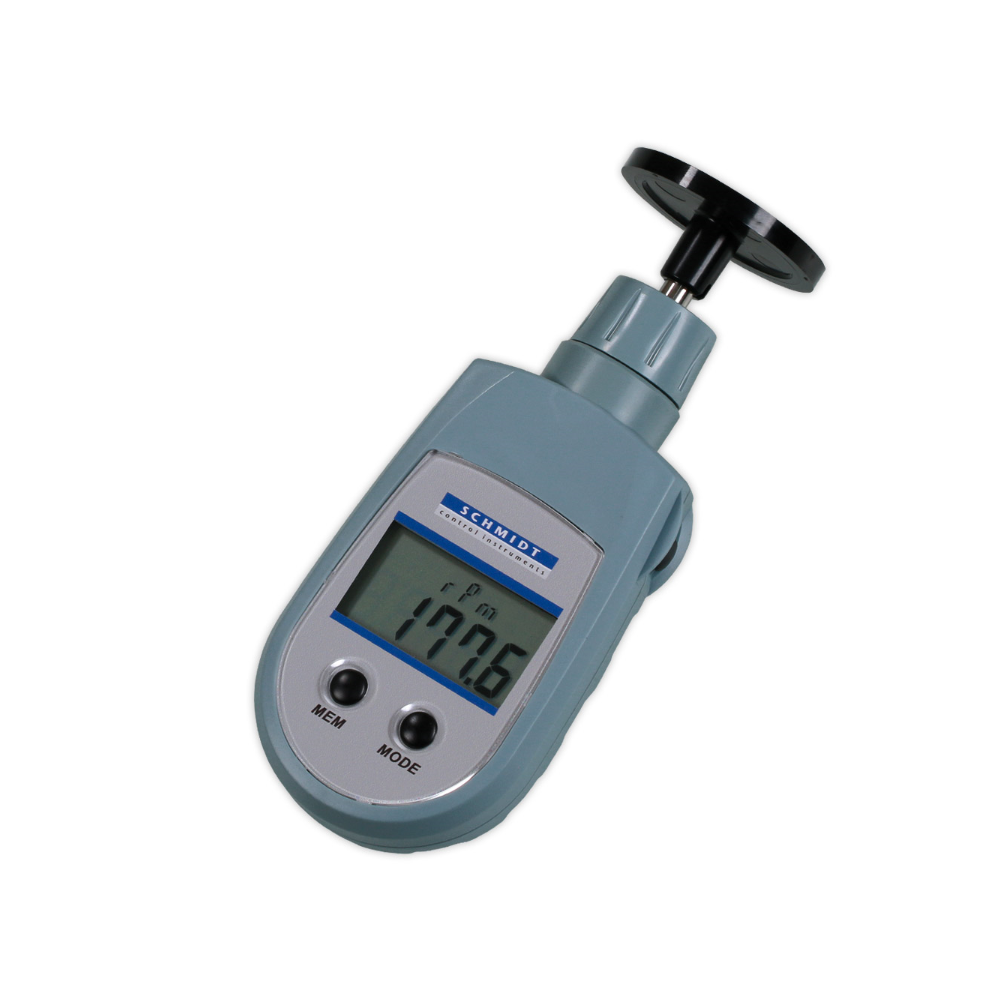

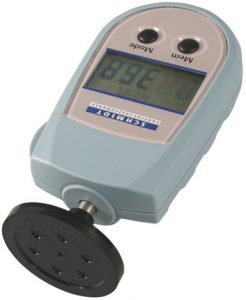

 10002S – Rubber Measuring Wheel

Wheel with 6 inch circumference for measuring line speeds
Order number: 10002S















 10013S – Adapter

Adapter for contact measuring with Tachometer PH-200LC
Order number: 10013











 Reflective Tapes

1 page (35 pieces), self-adhesive

OPTIONAL ACCESSORIES

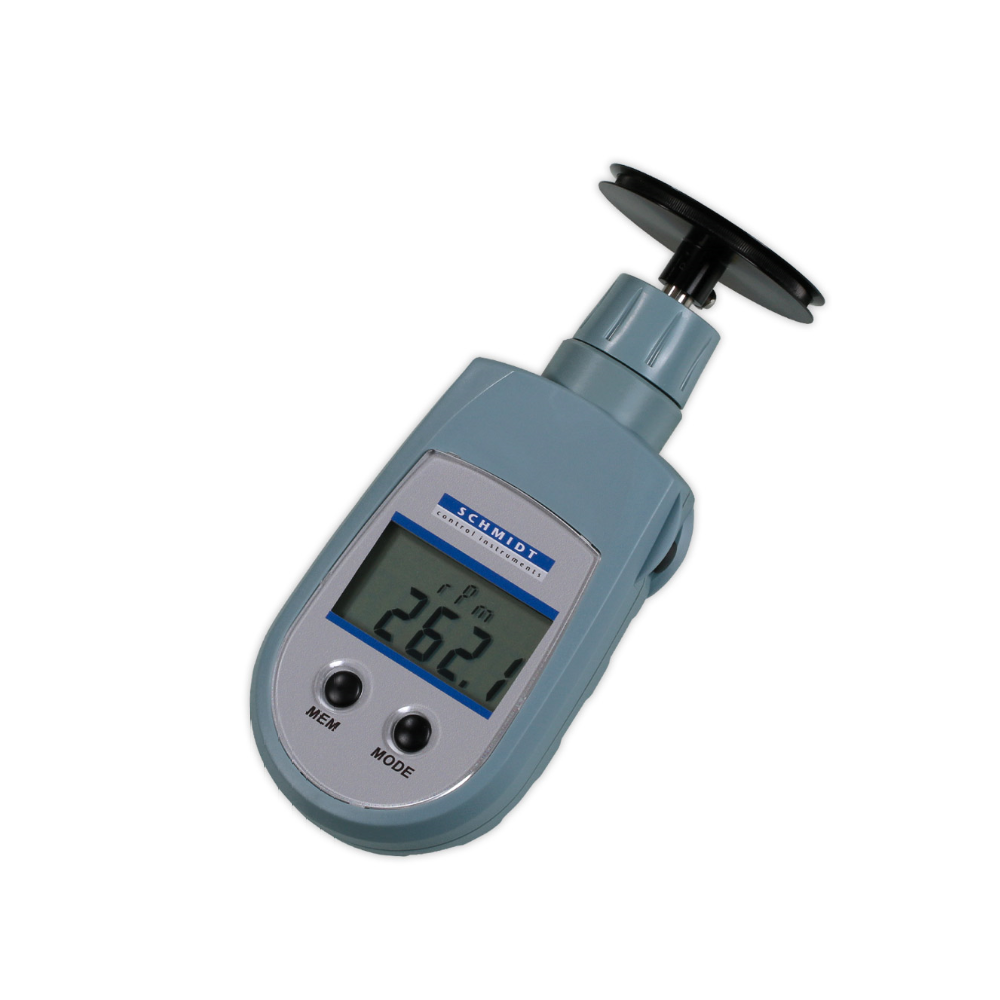

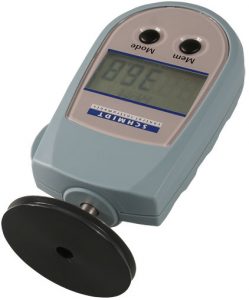

10005S – Grooved Wheel

Measuring wheel (6 inch circumference) with special groove for measuring yarn and wire speeds.
Order number: 10005S

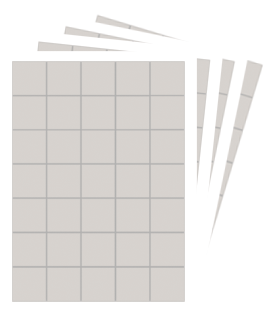

 10009S – Reflective Tape Set

Set with 140 self-adhesive reflective tapes, (1 Set = 4 x 35 pieces)
Order number: 10009S

DELIVERY INCLUDES

Tachometer PH-200LC with 3 batteries, carrying case, 1 adapter LC, 1 rubber tip, 1 funnel, 1 rubber measuring wheel (6 inch circumference), 1 page
reflective tapes (35 pieces), Certificate of Compliance with the order 2.1 according EN 10204 free of charge and operating instructions in German
and English
