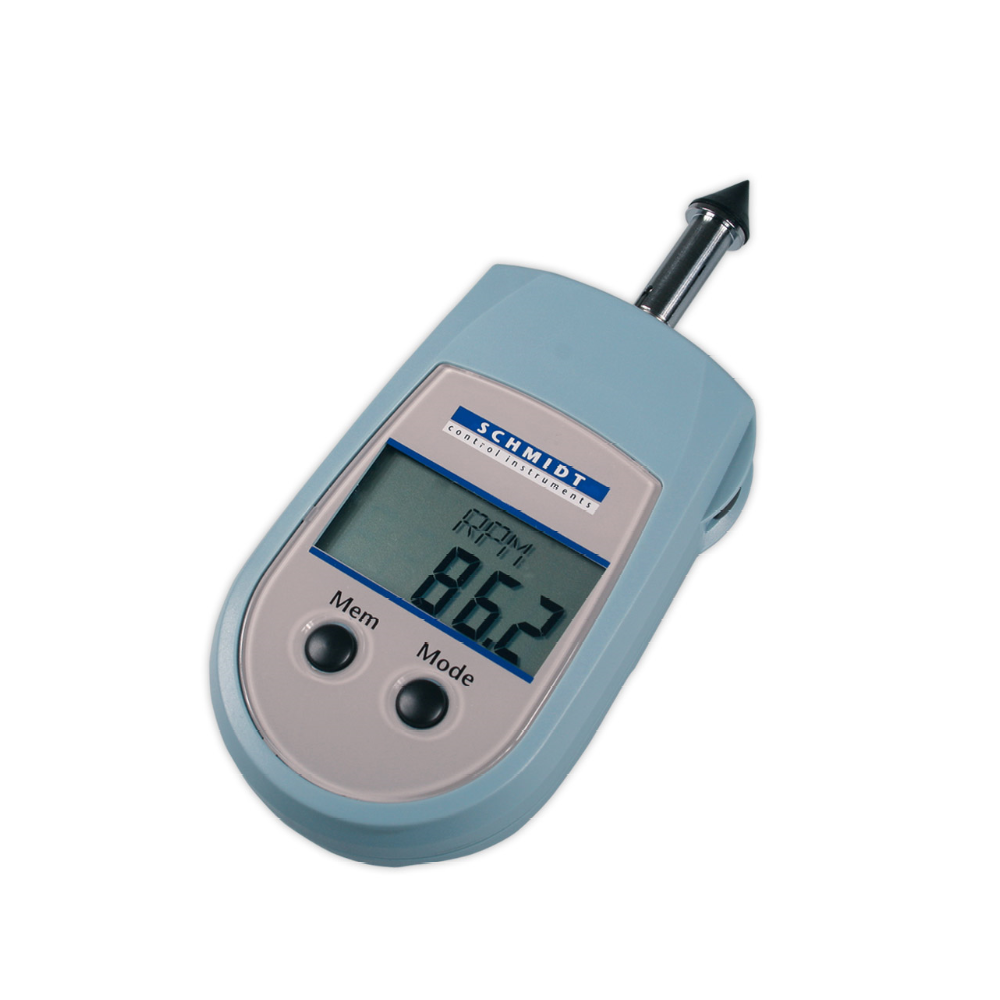

PH-100A
Tachometer

Hand-held tachometer for accurate contact measurement of revolution of engines or shafts as well as surface speed and length e.g. belts and conveyer belts.

Tachometer with 10 selectable measuring units and memory

Low cost and efficient hand-held model

Special Features

  • Hand-held tachometer PH-100A for contact measuring of revolutions, line speeds and length;
    the measurement is carried out, as long as the measuring key is pressed

Contact measurement of revolutions, surface speed and length

  • For exact measurements of
    – revolutions per minute
    – total revolutions
    – length and velocity with different metric and English units
  • 10 User selectable measuring units (rpm; rev, m/min; in/min; yd/min; ft/min; m; in; ft; yd)
  • Tachometer with big, easy to ready LCD display
  • Hand-held tachometer PH-100A with automatic and manual memory (Max, Min, mean, last reading and 10 separate readings) for recall in display
  • Electricity saving electronic assures a long battery durability

Standard Features

  • Tachometer with handy and erognomically housing design
  • Easy to use
  • Compact, rugged plastic housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Application
PH-100A contact measuring
alternative
PH-200LC contact and non-contact measuring
PH-200L non-contact measuring

SPECIFICATIONS

Measuring range:
(Floating decimal point)		 Revolution (contact):1 – 25000 rpm
Revolution (counter): 1 – 99999 rev
Speed: 0.1 – 3810 m/min; 3 – 99999 in/min; 0.2 – 12500 ft/min;
0.1 – 4167.0 yd/min
Length: 0.01 – 99999 m; 1 – 99999 in, 0.1 – 99999 ft; 0.01 – 99999 yd
Accuracy: Revolution: 1 – 599 ±1 rpm ±1 Digit
600 – 25000 rpm ±0.01 % of readings ±1 Digit
Speed and length: ±0.4% of readings ±1 Digit
Measuring units: Revolution: rpm;
Total revolution (counter): rev
Speed: m/min; ft/min; yd/min; in/min
Length: m; in; ft; yd
Memory: 14 readings (10 readings, MAX, MIN, mean and last) are stored for 5 minutes after last use
Resolution: Length: 0.00762 m/Impulse,
Revolution: 20 Impulse/revolution
Display: 5 digit LCD 12 mm high
Display update: 1 s
Over range indicator: ”OVR” flashes at the display
Auto power off: After 5 min of non-use
Power supply: Battery 3 x 1.5 V Type AA, (approx. 50 h continuous use)
Low battery indicator: ”LO BAT” flashes at the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing: Polyamide, fiber-reinforced
Dimensions: 123 x 64 x 31 mm (LxWxH)
Weight, net (gross): Approx. 180 g (400 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

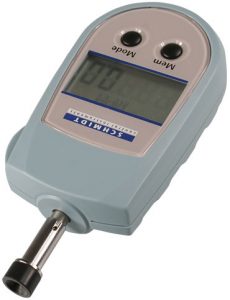

10006S – Rubber Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10006S

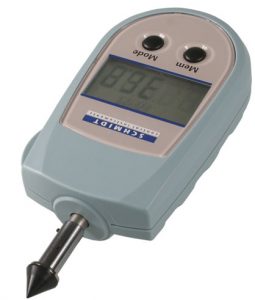

 10007S – Funnel Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10007S

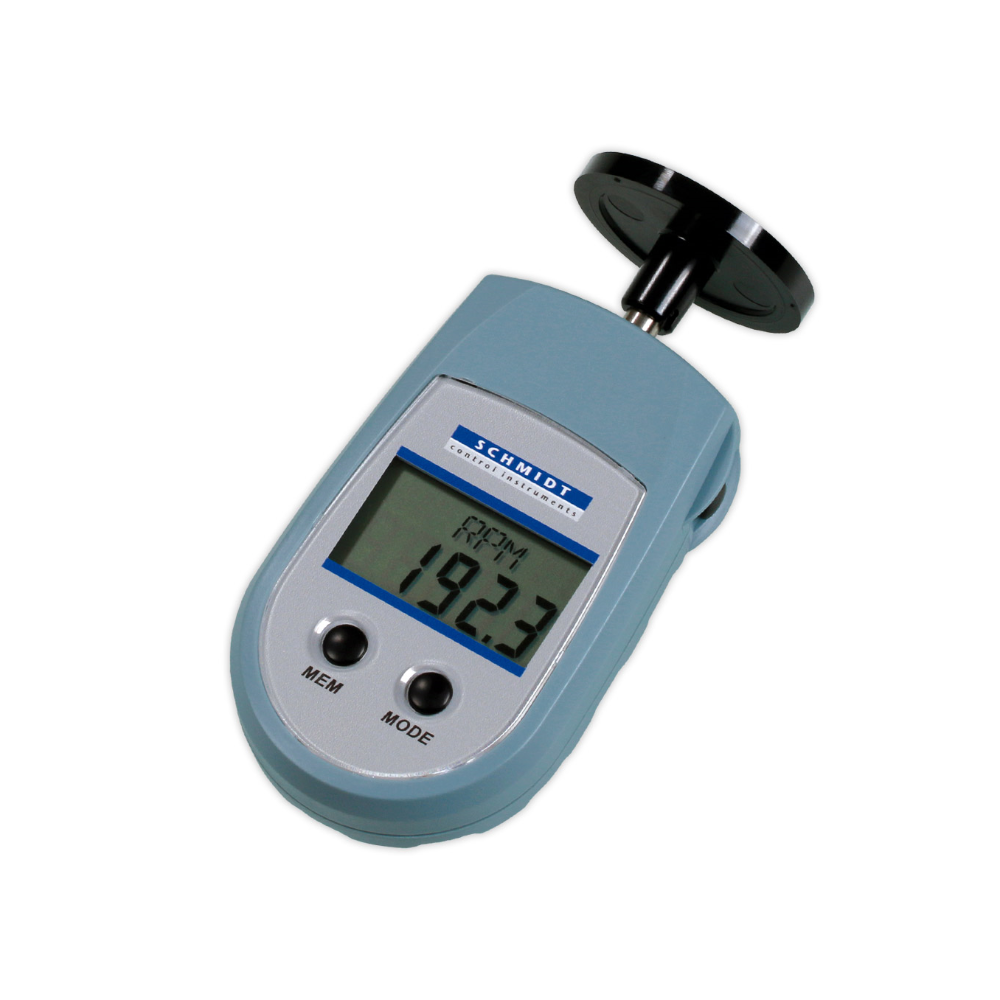

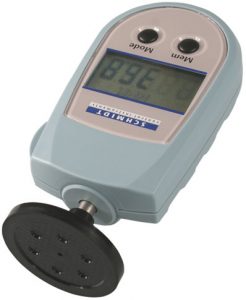

 10002S – Rubber Measuring Wheel

Wheel with 6 inch circumference for measuring line speeds
Order number: 10002S

OPTIONAL ACCESSORIES

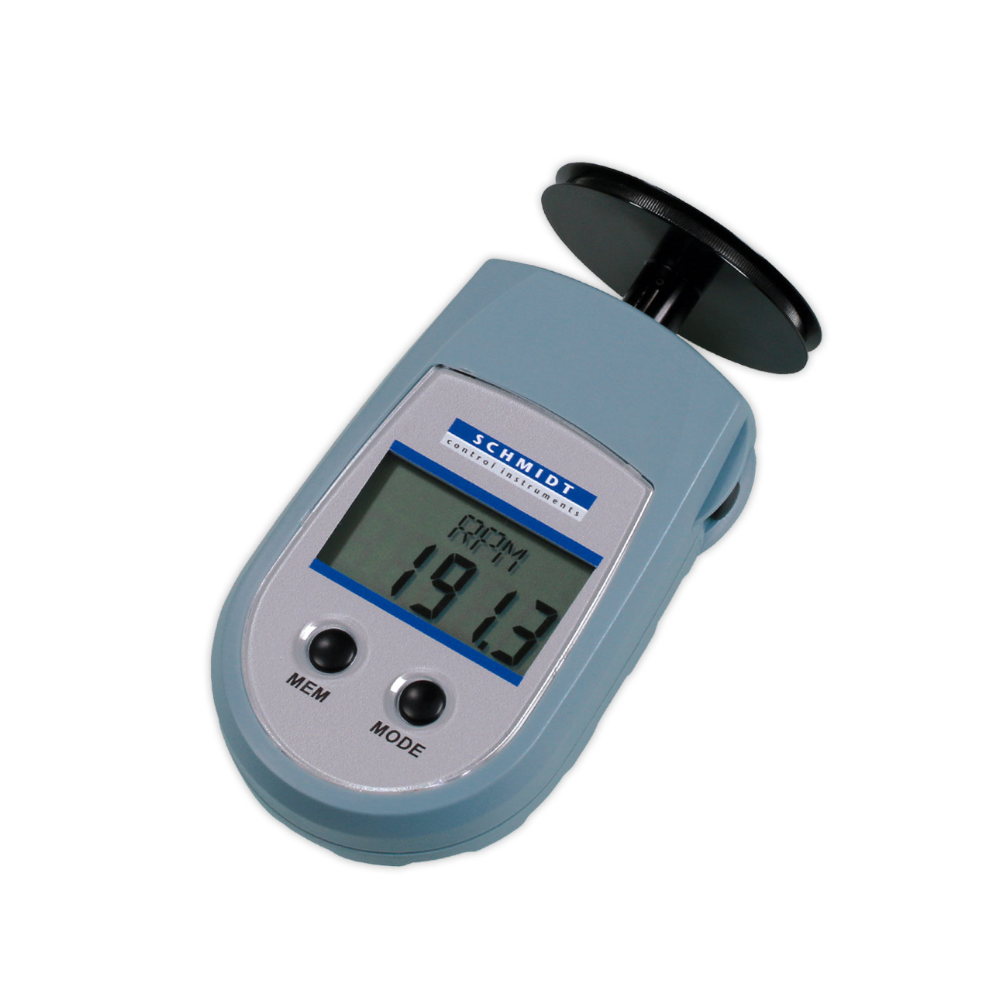

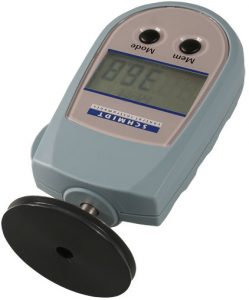

10005S – Grooved Wheel

Measuring wheel (6 inch circumference) with special groove for measuring yarn and wire speeds.
Order number: 10005S

DELIVERY INCLUDES

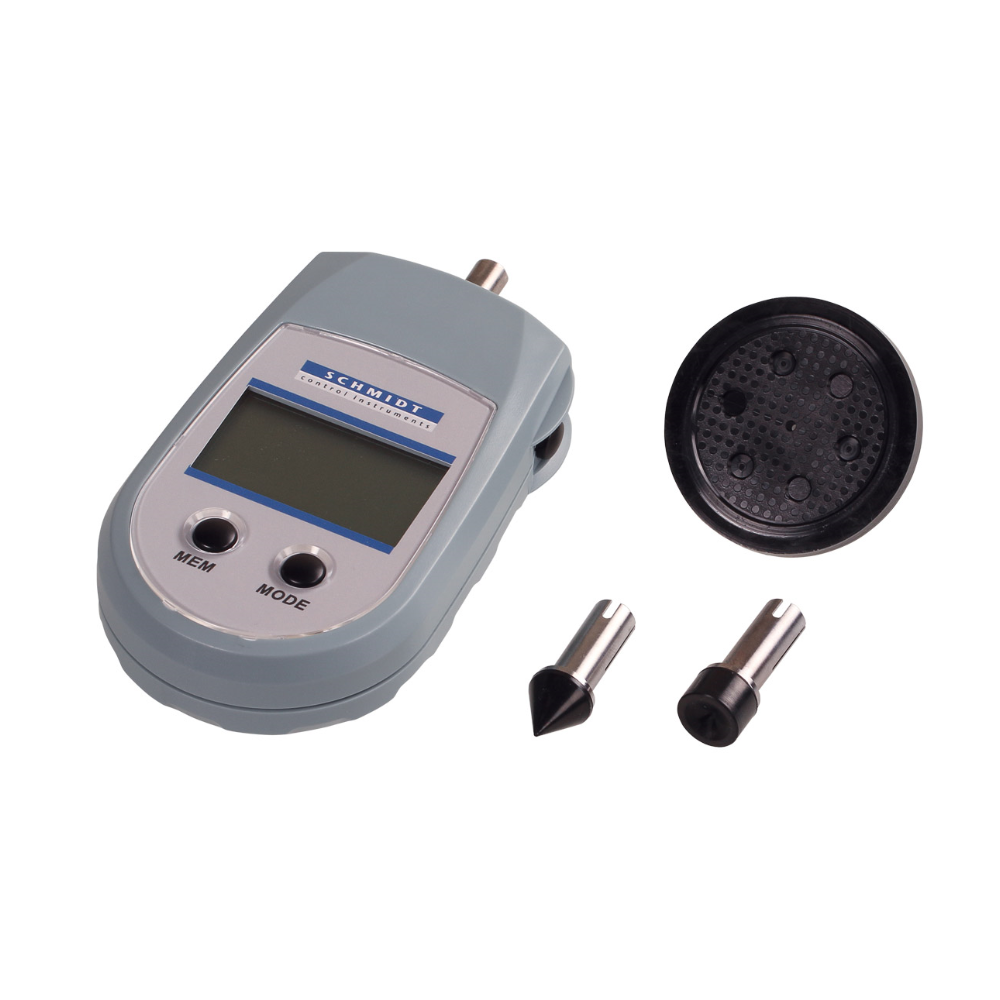

Tachometer PH-100A with 3 batteries, carrying case, 1 rubber tip, 1 funnel, 1 rubber measuring wheel (6 inch circumference), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
and operating instructions in German and English
