LMC-V, LMI-V
Yarn Length Meter

Measuring range 1 – 999999 cm or inch
Electronic length meter to measure the yarn consumption of a single yarn feeding system for one or more machine cycles of a circular knitting machine.

Measuring time is determined with start/stop signal of the magnetic sensor or manual by operator

Special Features

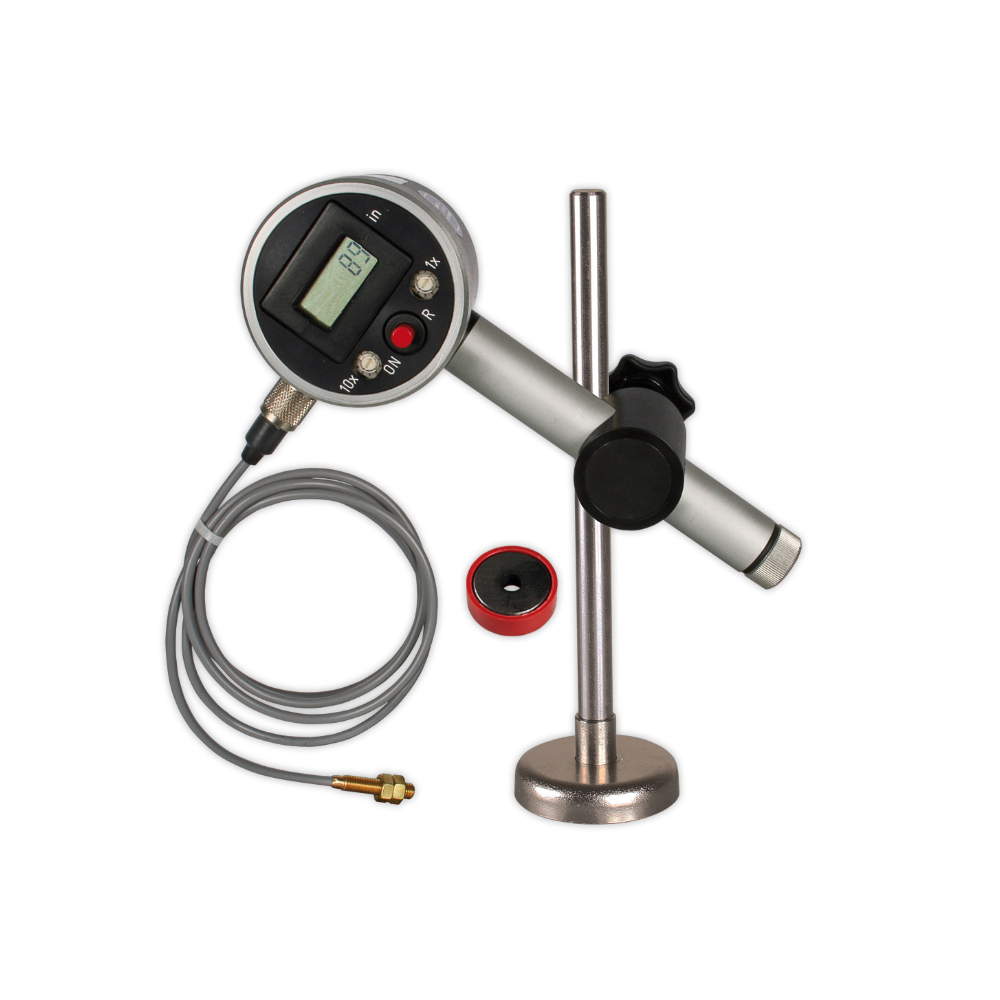

  • Yarn length meter LMC-V for measurements in cm and LMI-V for measurements in inch
  • Sensor controlled unit with a sensor (mounted on machine frame) and magnet (mounted on rotating part) for automatic start/stop signal

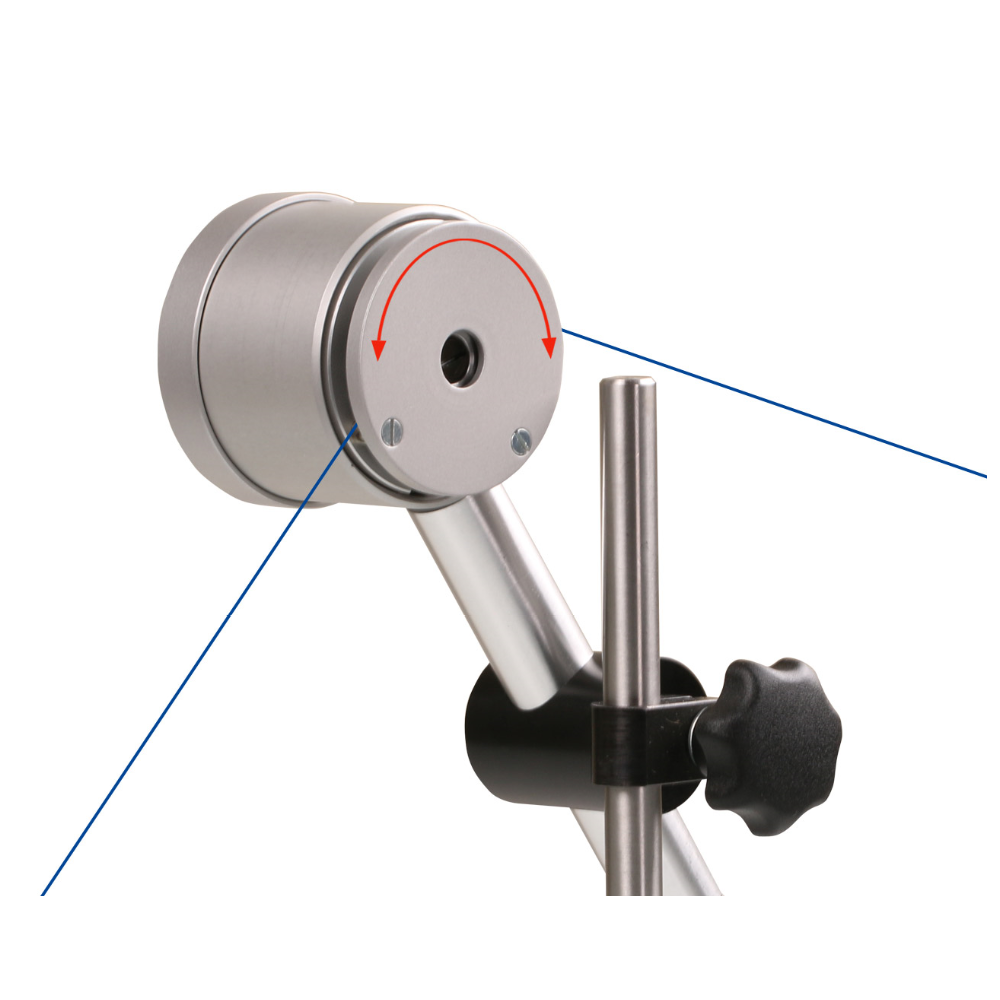

  • Precision, ball-bearing mounted wheel is recessed into an adjustable slot on the rear side

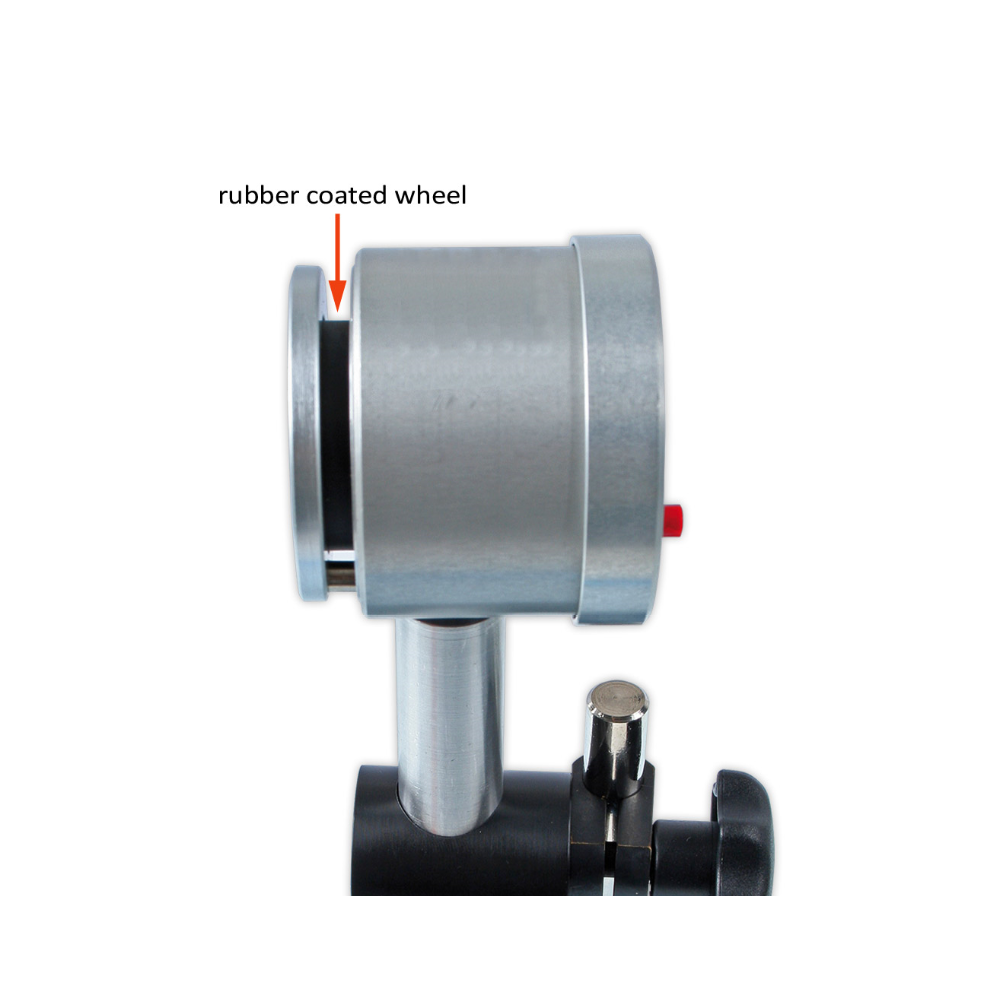

  • Material slip is eliminated by maximum enlacement of material (approx. 120°) with rubber coated wheel

It is stationary mounted between filament break monitors and filament guides using the supplied magnetic base.

 Standard Features

  • Easy to operate
  • Includes magnetic base for quick installation on the machine; it is stationary mounted on the zylinder ring between filament break monitors and filament guides
  • Battery operated length meter

 Available Models

Model Measuring Range
 Operation Mode
LMC-V 1 – 999999 cm with sensor/manual
LMI-V 1 – 999999 in with sensor/manual
alternative
LMC 1 – 999999 cm manual
LMI 1 – 999999 in manual

SPECIFICATIONS

Model LMC-V Model LMI-V
Measuring range: 1 – 999999 cm 1 – 999999 in
Resolution: 1 cm 1 in
Accuracy: ±0.1 % of displayed value ±1 digit ±0.1 % of displayed value ±1 digit
Measuring principle: Pulse counting Pulse counting
Preselect switch: 1 – 99 machine revolutions 1 – 99 machine revolutions
Display: LCD, 5 mm high LCD, 5 mm high
Auto power off: After 2 min of non-use After 2 min of non-use
Temperature range: 10 – 45 °C 10 – 45 °C
Air humidity: 85 % RH, max. 85 % RH, max.
Power supply: 2 x 1.5 V type AAA (approx. 30 h continuous use) 2 x 1.5 V type AAA (approx. 30 h continuous use)
Housing material: Aluminium Aluminium
Dimensions: Instrument: 160 x 55 x 51 mm (LxWxH)
magnetic base: high 175 mm, Ø 48 mm		 Instrument: 160 x 55 x 51 mm (LxWxH)
magnetic base: high 175 mm, Ø 48 mm
Weight: Instrument: approx. 300 g;
magnetic base: approx. 230 g
complete (gross): approx. 800 g		 Instrument: approx. 300 g;
magnetic base: approx. 230 g
complete (gross): approx. 800 g

Specifications subject to change without notice!

OPERATION

In ”Auto” mode a permanent magnet is mounted to a revolving part of the machine. The sensor supplies the start/stop signal. The predetermined number of revolutions (from 1- 99 rev. set on the rotary switches at the front side) are counted and the cumulated yarn consumption is displayed.
In ”Basic” mode the unit works without external sensor; Operator determines measuring time by pushing start/stop button.

Advantage of yarn length meter LMC-V and LMI-V use:

  • Continued measuring of the yarn consumption of all knitting feeds ensures uniform stitch lengths and hence homogeneous fabric structure.
  • Predetermined fabric specifications can be reliably maintained and repeated.
  • The quantities of each type of yarn which are required for producing particular fabrics can be simply and accurately calculated.
  • The use of LM ensures the same fabric quality, respectively structures can be produced on different machines in the same quality.

STANDARD ACCESSORIES

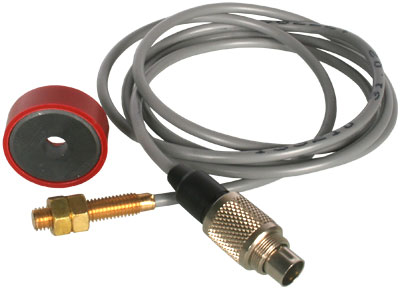

EK0631 – Sensor and Magnet

Magnetic sensor with cable (1 m long) and magnet
Order number: EK0631

OPTIONAL ACCESSORIES

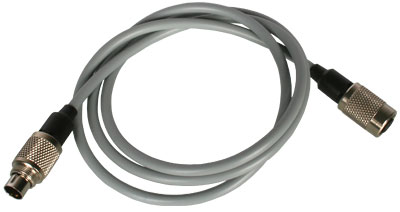

EK0630 – Extension Cable

Length 2 m
Order number: EK0630

DELIVERY INCLUDES

Yarn length meter LMC-V or LMI-V with transport packaging, 2 batteries, 1 magnetic base, 1 sensor with 1 m cable, 1 magnet, Certificate of Compliance of the order 2.1, operating instruction in German or English
