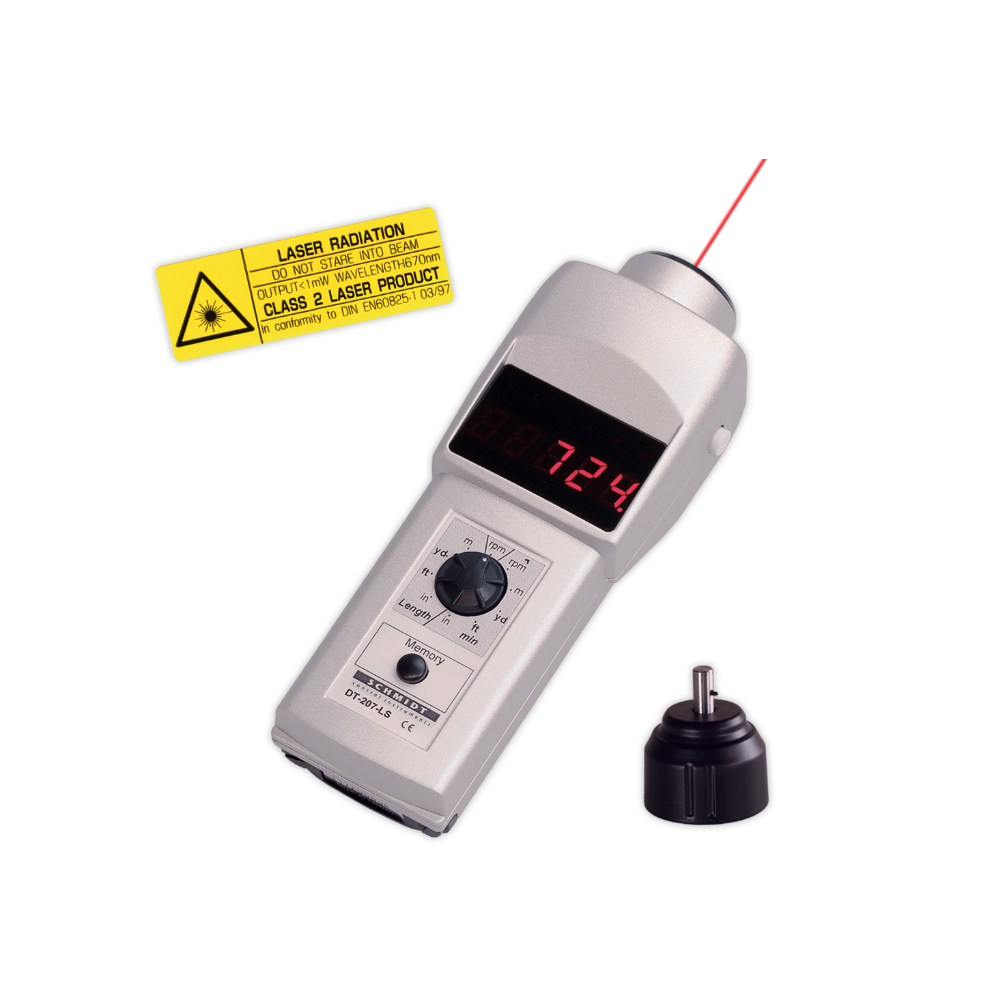

DT-207LS
Tachometer

Hand-held tachometer for accurate contact measurement and non-contact measurement of revolution of engines or shafts as well as surface speed and length e.g. belts and conveyer belts

Tachometer with LED display and many selectable units

High quality hand-held tachometer for professional use

Special Features

  • Hand-held tachometer DT-207LS for non-contact measurement of revolutions and contact measurement of revolutions, line speed and length with an adapter;
    the measurement is carried out, as long as the measuring key is pressed

Non-contact measurement of revolutions, using a laser beam and reflective tape

Contact measurement of revolutions, surface speed and length

  • For exact measurement of revolutions per minute, total revolutions, length and velocity with different metric and English units
  • 9 User selectable measuring units (rpm; m/min; ft/min; yd/min; in/min; m; in; ft; yd)
  • Tachometer DT-207LS with large, red, easy to read LED display, recommended at adverse lighting conditions
  • Hand-held tachometer DT-207LS with automatic and manual memory (MAX, MIN, last and 10 separate readings) for recall in display
  • Rugged aluminium housing with fixing for tripod (1/4-20 UNC thread)
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Standard Features

  • Measuring distance up to 2 m
  • Easy to use
  • Certificate of Compliance with the order 2.1 according EN 10204 is included

 Available Models

Model Application  Display
DT-207LS contact measuring and non-contact  LED
alternative
DT-205LS contact measuring and non-contact  LCD
DT-105AS contact measuring  LCD
DT-107AS contact measuring  LED

 The Tachometer is also available as DT-207L with 6 inch (circumference) rubber measuring wheel.

SPECIFICATIONS

Measuring range:
(floating decimal point)		 Revolution (contact): 6 – 25000 rpm;
Revolution (non-contact): 6 – 99999 rpm;
Speed: e. g. 0.02 – 3810 m/min; 0.9 – 99999 m/h; 0.6 – 99999 in/min; 0.05 – 12500 ft/min; 3 – 99999 ft/h; 0.02 – 4167 yd/min;
1.0 – 9999 yd/h; 0.0006 – 142.5 mil/h
Length: 0.5 – 99999 cm; 0.005 – 99999 m; 0.1 – 9999.9 in; 0.01 – 99999 ft, 0.005 – 9999.9 yd
Accuracy: 6 – 8300 rpm (±1 rpm) ±1 digit
8301 – 25000 rpm (±2 rpm) ±1 digit
25000 – 99999 rpm (±0.01% of reading) ±1 digit
Speed and length: ±0.4 % of reading ±1 digit
Measuring units: Revolution: rpm; rph
Total rotations (counter): rev
Speed: m/min; m/h; ft/min; ft/h;yd/min; yd/h; in/min; in/h; mil/h
Length: cm; m; in; ft; yd
Laser, class 2: Output<1 mW, wavelength 670 nm, max. measuring distance 2 m
Memory: 13 readings (incl. MIN + MAX + LAST) for 5 min after last use
Resolution: Length: 0.03810 m/impulse (with adapter),
Revolution: 8 impulse/revolution (with adapter)
Display: 5 digit, LED 10 mm
Display update: 1 sec
Over range indicator: Display is flashing
Auto power off: After 10 s of non-use
Power supply: 2 x 1.5 V type AA, approx. 25 h continuous
Low battery indicator: ”B” flashes at the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Tripod fixing: 1/4-20 UNC thread
Dimensions: 203 x 60 x 46 mm (LxWxH)
Weight, net (gross): Approx. 350 g (800 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

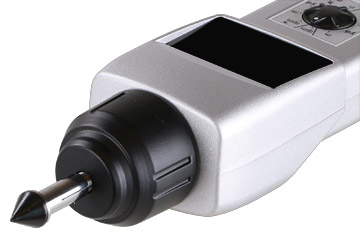

10006S – Rubber Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10006S

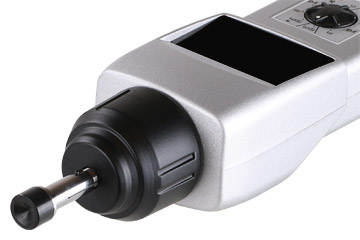

 10007S – Funnel Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10007S

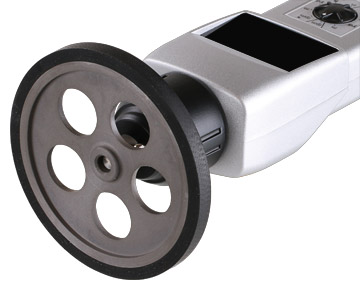

 10003S – Rubber Measuring Wheel

Wheel with 12 inch circumference for measuring line speeds
Order number: 10003S

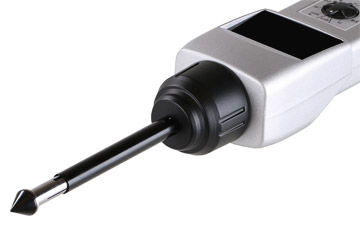

 10008S – Extension

Shaft 75 mm long
Order number: 10008S

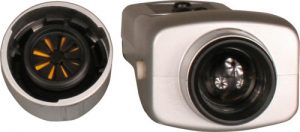

 10012S – Adapter – old version

Adapter with serrated lock washer (old version)
For contact measurement with series DT
Order number: 10012S

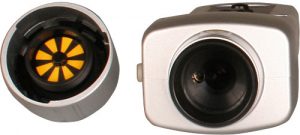

 10015S – Adapter – new version

Adapter without serrated lock washer (current version)
for contact measurement with series DT
Order number: 10015S





 Reflective Tapes

1 page (35 pieces), self-adhesive

OPTIONAL ACCESSORIES

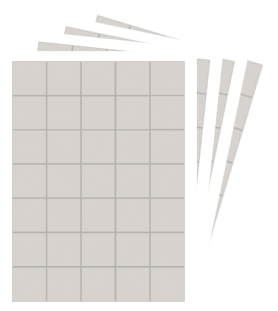

10009S – Reflective Tape Set

Set with 140 self-adhesive reflective tapes, (1 Set = 4 x 35 pieces)
Order number: 10009S

DELIVERY INCLUDES

Tachometer DT-207LS with 2 batteries, carrying case, 1 adapter H, 2 rubber tips, 1 funnel, 1 rubber measuring wheel with 12 inch circumference, 1 extension shaft 75 mm, 1 leaflet reflective tapes (35 pieces), Certificate of Compliance with the order 2.1according EN 10204 free of charge and operation instructions in German and English
