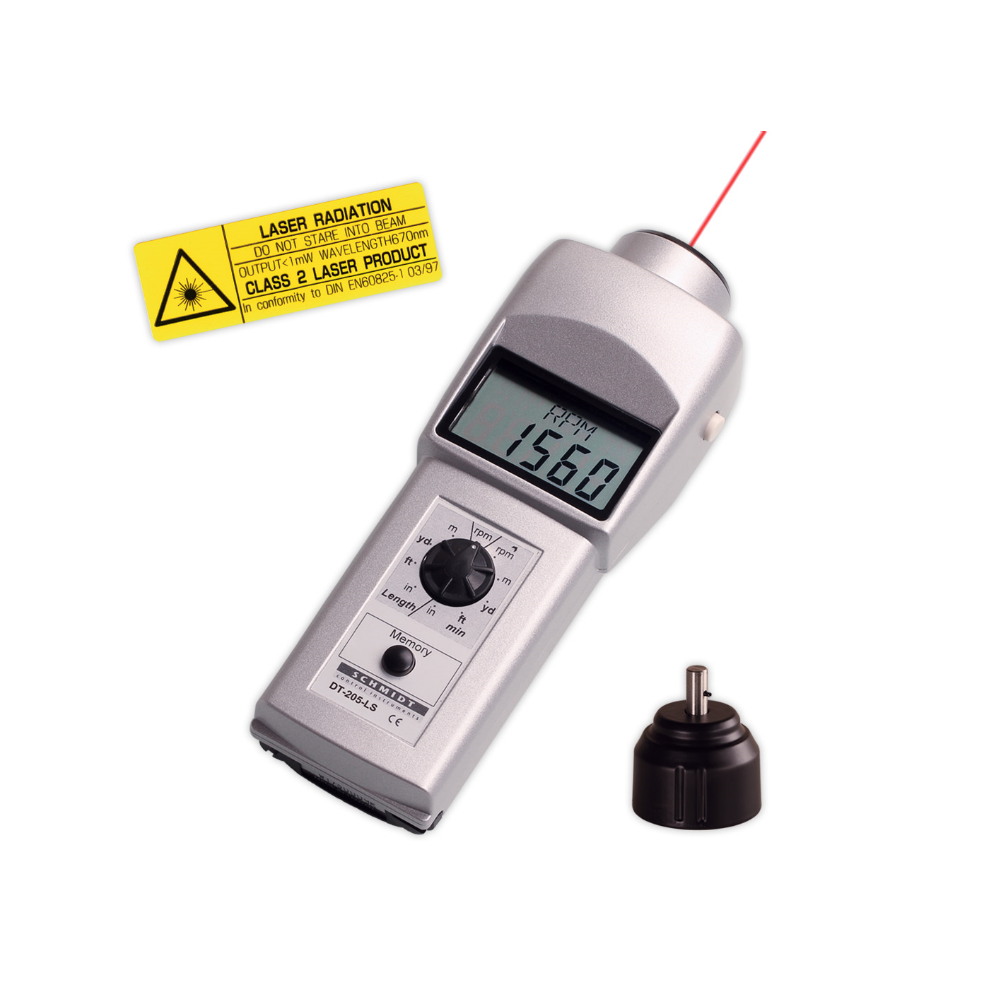

DT-205LS
Tachometer

Hand-held tachometer for accurate contact measurement and non-contact measurement of revolution of engines or shafts as well as surface speed and length e.g. belts and conveyer belts

Tachometer with LCD display and many selectable units

High quality hand-held tachometer for professional use

Special Features

  • Hand-held tachometer DT-205LS for non-contact measurement of revolutions and contact measurement of revolutions, line speed and length with an adapter;
    the measurement is carried out, as long as the measuring key is pressed

Non-contact measurement of revolutions, using a laser beam and reflective tape

Contact measurement of revolutions, surface speed and length

  •  For exact measurements of revolutions per minute, total revolutions, length and velocity with different metric and English units
  • 9 User selectable measuring units (rpm; m/min; ft/min; yd/min; in/min; m; in; ft; yd)
  • Tachometer with large, electricity saving LCD display
  • Tachometer DT-205LS with automatic and manual memory (MIN, MAX, last and 10 separate readings) for recall in display
  • Rugged aluminium housing with fixing for tripod (1/4-20 UNC thread)
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Standard Features

  • Good visible, harmless laser beam
  • Measuring distance up to 2 m
  • Easy to use
  • Certificate of Compliance with the order 2.1 according EN 10204 is included

 Available Models

Model Application  Display
DT-205LS contact measuring and non-contact  LCD
alternative
DT-207LS contact measuring and non-contact  LED
DT-105AS contact measuring  LCD
DT-107AS contact measuring  LED

The Tachometer is also available as DT-205L with 6 inch (circumference) rubber measuring wheel.

SPECIFICATIONS

Measuring range:
(floating decimal point)		 Revolution (contact): 6 – 25000 rpm;
Revolution (non-contact): 6 – 99999 rpm
Speed: e. g. 0.11 – 3810 m/min; 0.9 – 99999 m/h; 0.6 – 99999 in/min;
0.05 – 12500 ft/min; 3 – 99999 ft/h; 0.02 – 4167 yd/min; 1.0 – 9999 yd/h;
0.0006 – 142.5 mil/h
Length: 0.5 – 99999 cm; 0.005 – 99999 m; 0.1 – 9999.9 in; 0.01 – 99999 ft, 0.005 – 9999.9 yd
Accuracy: 6 – 8300 rpm (±1 rpm) ±1 digit
8301 – 25000 rpm (±2 rpm) ±1 digit
25001 – 99999 rpm (±0.01% of reading) ±1 digit
Speed and length: ±0.4 % of reading ±1 digit
Measuring units: Revolution: rpm; rph
Total rotations (counter): rev
Speed: m/min; m/h; ft/min; ft/h; yd/min; yd/h; in/min; in/h; mil/h
Length: cm; m; in; ft; yd
Laser, class 2: Output<1 mW, wavelength 670 nm, max. measuring distance 2 m
Memory system: 13 readings (incl. MIN + MAX + last) for 5 min after last use
Resolution: Length: 0.03810 m/impulse (with adapter)
Revolution: 8 impulse/revolution (with adapter)
Display: 5 digit, LCD 12 mm
Display update: 1 sec
Over range indicator: Display is flashing
Auto power off: After 5 min of non-use
Power supply: 2 x 1.5 V Type AA, approx. 40 h continuous use
Low battery indicator: ”Low Bat” flashes at the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Tripod fixing: 1/4-20 UNC thread
Dimensions: 203 x 60 x 46 mm (LxWxH)
Weight, net (gross): Approx. 350 g (800 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

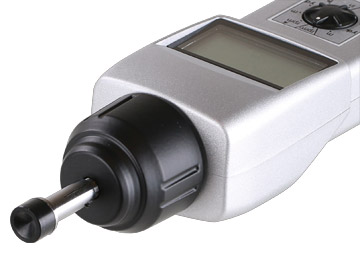

10006S – Rubber Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10006S

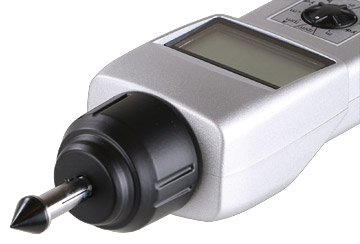

 10007S – Funnel Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10007S

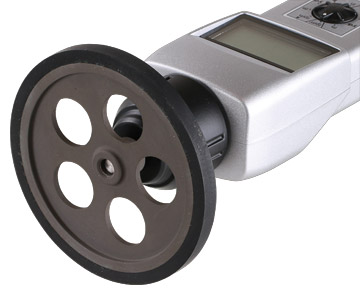

 10003S – Rubber Measuring Wheel

Wheel with 12 inch circumference for measuring line speeds
Order number: 10003S

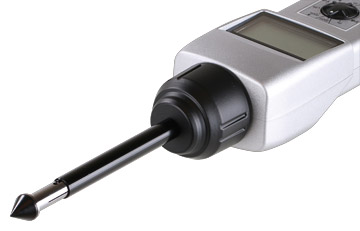

 10008S – Extension

Shaft 75 mm long
Order number: 10008S

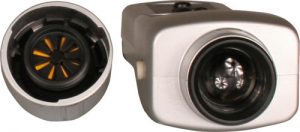

 10012S – Adapter – old version

Adapter with serrated lock washer (old version)
For contact measurement with series DT
Order number: 10012S

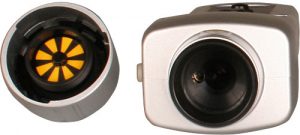

 10015S – Adapter – latest version

Adapter without serrated lock washer (current version)
for contact measurement with series DT
Order number: 10015S

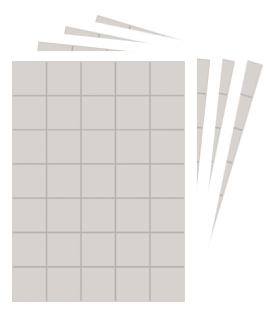

 Reflective Tapes

1 page (35 pieces), self-adhesive

OPTIONAL ACCESSORIES

10009S – Reflective Tape Set

Set with 140 self-adhesive reflective tapes, (1 Set = 4 x 35 pieces)
Order number: 10009S

DELIVERY INCLUDES

Tachometer DT-205LS with 2 batteries, carrying case, 1 adapter H, 2 rubber tips, 1 funnel, 1 measuring wheel with 12 inch circumference, 1 extension, 1 page reflective tapes (35 pieces), Certificate of Compliance with the order 2.1 according EN 10204 free of charge and operating instructions in German and English
