CDT-1000HD
Non-Contact Tachometer

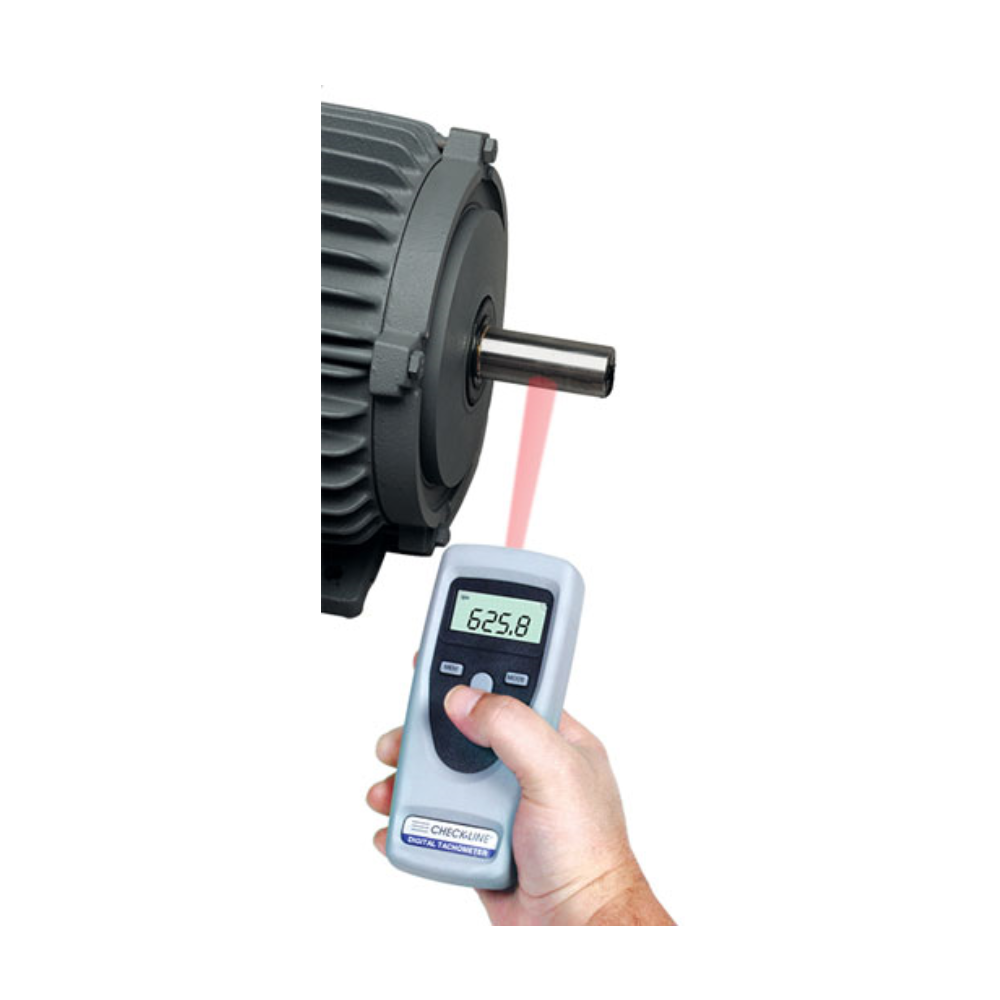

The CHECK-LINE CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.

The CHECK-LINE CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.
5 year warrantyThe CDT-1000HD’s rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

A combination Contact & Non-Contact model, the CDT-2000HD, is also available. Click here for data sheet.

Also known as Testo 465, Redpoint A5-1100

 LCD Display

Low Battery Indicator alerts the operator if the batteries are low.

On-Target Indicator confirms that the measurements are reliable.

Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.

 Complete Kit

The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and Traceable certificate — all supplied in a foam-fitted, hard-plastic Carrying Case.













Item Descrıptıon
CDT-1000HD
Non-Contact Tachometer Complete kit – Redpoint A5-1100
Accessorıes
ISO-17025-TS
ISO-17025 Certificate for Tachometer or Stroboscope
NISTCAL
NIST Traceable Calibration Certificate (replaces included DAKKS certificate)
CDT-TAPE
10 Strips of 1/2 x 4 inch reflective tape
205TS
Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares – TAB
205TS-4
Qty 4 Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares
BATT-RC4AA-WC
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
CDT-CC
Carrying Case for CDT-1000HD/2000HD

FEATURES

  • Includes DAkkS Traceable calibration Certificate
  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • NEW – Molded Rubber Shell Provides Additional Physical & Environmental Protection

SPECIFICATIONS

Measuring Range 1.00 – 99,999 rpm
Resolution .01 from 0 – 100
.1 from 100 – 1,000
1 from 1000 – 99,999
Accuracy ± 0.02% of reading or 0.01 digit (under 50)
Display 5 – Digit LCD, 10mm high
Decimal Point Automatic
Memory System Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System Visible LED light beam
Sensing Distance Up to 24 inches (60 cm)
Display Update Time 0.5 seconds or one measuring
Auto Power Off After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life 40 hours continuous use
Battery 2 AA (1.5 V) or rechargeable
Weight 6 ounces (170 grams)
Housing Material ABS Plastic housing with removable protective rubber shell
Housing Rating IP40
Operating Temperature 32 to 122° F (0 to 50° C)
Storage Temperature -4 to 150° F (-20 to 70° C)
Accessories included 10 Strips of 1/2 x 4 inch reflective tape
Calibration Certificate Included
