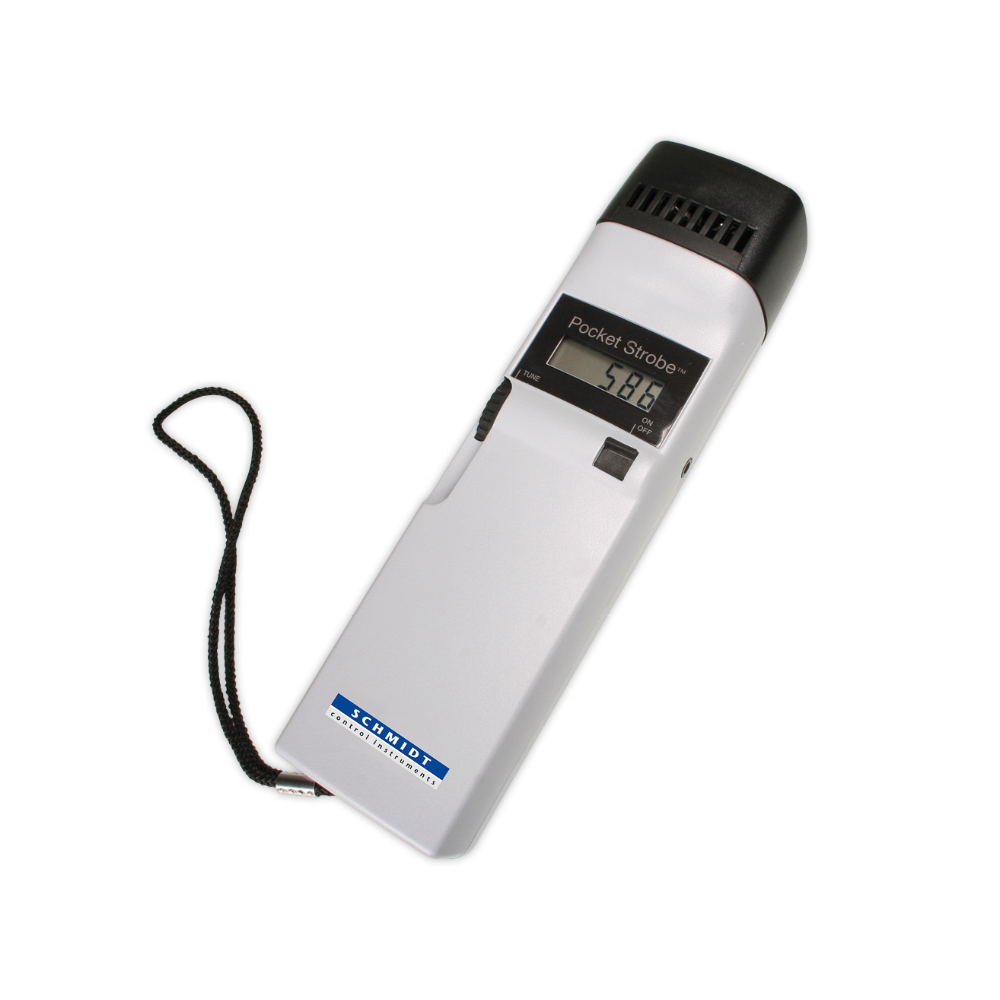

MS-1
Stroboscope

Measuring range 30 – 12500 flashes per minute (FPM or rpm)
Frequency range 0.5 – 208.3 Hz
Hand held stroboscope for non-contact determination of revolutions, for monitoring moving parts and ascertain the oscillation frequency of running systems.

Light intensive stroboscope with 1200 Lux at 20 cm distance to the measuring object

Small, handy stroboscope for one hand operation with LCD display and rechargeable battery

Special Features

  • Stroboscope MS-1 for measuring 30 to 12500 fpm (rpm) and higher using the harmonic – see general information about stroboscopes
  • Stroboscope with easy to read LCD display for one hand operation
  • Small, handy stroboscope for hard to reach applications
  • Battery operation with high quality Li-Ion batteries and short charging time, long battery duration (2h continuous use)
  • Operates when being recharged or run continuously via AC-power
  • Accepts input from sensor for external flash triggering
  • Last displayed value will be stored and stroboscope runs at that speed when switched on again
  • Brightest flash in his class 1200 Lux (at a distance of 20 cm to the object)
  • Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture
  • Delivery of stroboscope MS-1 includes a device-specific manufacturer`s test-certificate

Standard Features

  • Portable, lightweight and rugged construction
  • Designed for one hand use, easy to use
  • Bright Xenon-Longlife flash tube

 Available Models

Model Description
MS-1 digital display with mains and/or battery operation

SPECIFICATIONS

Flash range: 0.5 – 208.3 Hz = 30 – 12500 FPM (rpm)
Accuracy: ±0.01 % reading ±1 digit
Resolution: ±1 FPM
Light intensity: Approx. 1200 Lux at a distance of 20 cm,  running with 4500 rpm
Flash duration: < 9 µs
Display: 5 digit LCD, 9 mm high
Flash tube: Xenon-Longlife (lifetime approx. 200 million flashes),
energy of flash max. 170 mJ, Colours 6000…6500K
External trigger input: 0 – 5 V DTL/TTL compatible, Uout = 7.2 V unregulated,
Ri = 100 kΩ 3.5 mm 1/8
Tripod fixing: 1/4” 20 internal thread
Power supply: Li-Ion-rechargeable battery (2 h continuous, charging time 5 h)
and/or AC adapter 100…240 V DC, 50/60 Hz
Temperature range: 0 – 40 °C
Air humidity: 85 % RH, max.
Housing material: ABS
Dimensions: 240 x 65 x 40 mm (LxWxH)
Weight net (gross): Approx. 420 g (1300 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

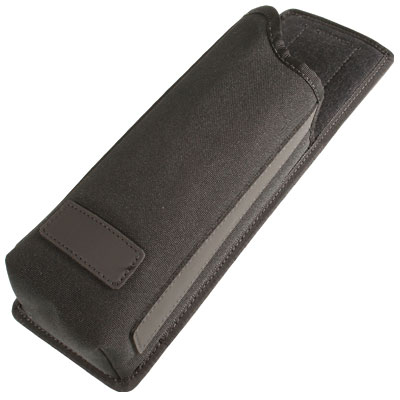

20003R – Belt-clip holster

Leather bag for take up the device. For fast mount on a belt.
Order number: 20003R





















SPARE PARTS

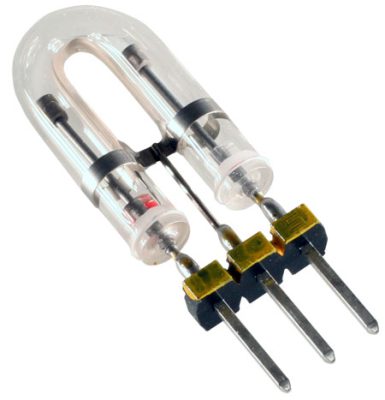

20020R – Flash Tube (new model)

Delivery includes 1 tube for stroboscopes with year of construction 2008 or later
Order number: 20020R



















 20001R – Flash Tube (old model)

Delivery includes 1 tube for stroboscope with year of construction up to 2008
Order number: 20001R

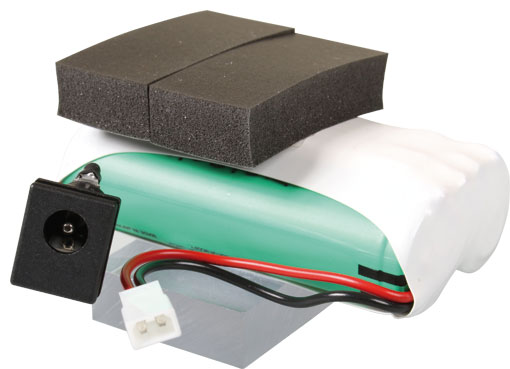

 20022R – Spare Accumulator

Lithium ion accumulator, 2-pole connector
for stroboscopes with year of construction 2008 or later
Order number: 20022R

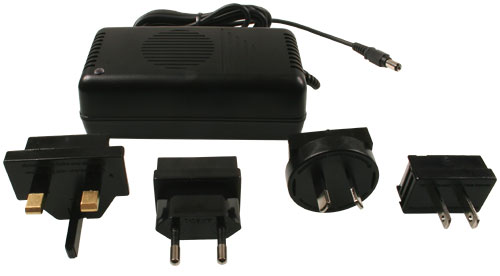

 20021R – Charger/Mains Adapter (new)

with 4 adapters for worldwide use, 100 – 230 V DC for Li-Ion battery
Order number: 20021R













 20002R – Charger/Mains Adapter (old)

with 4 adapters for worldwide use, 100 – 240 V DC for Ni-MH battery (old model)
Order number: 20002R

DELIVERY INCLUDES

Stroboscope MS-1 with carrying case, manufacturer`s inspection report, battery recharger with 4 adapters for world wide use, jack 3.5 mm plug for trigger signal, operating instruction in several languages.
