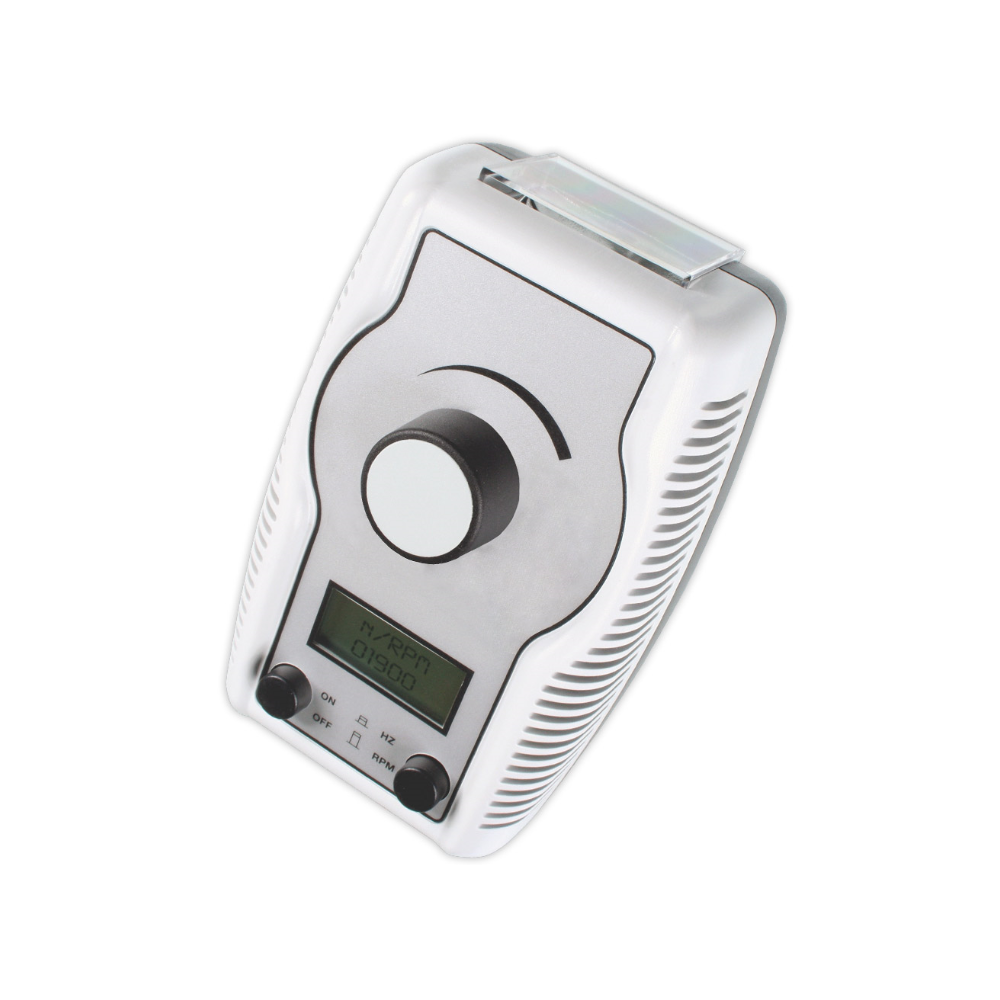

3000-ND and 3000-BD
Stroboscope

Measuring range 240 – 20100 flashes per minute (FPM or rpm)
Frequency range 4 – 335 Hz
Hand held stroboscope for non-contact determination of revolutions, for monitoring moving parts and ascertain the oscillation frequency of running systems.

Small, compact stroboscope with 450 Lux at 50 cm distance to the measuring object

Industrial stroboscope for mains or battery operation with LCD display

Special Features

  • Stroboscope series 3000 for measuring 150 to 20100 FPM (rpm) and higher using the harmonic – see general information about stroboscopes
  • 2 different models are available
    • Stroboscope 3000-ND: Mains operation 220 – 250 V AC
    • Stroboscope 3000-BD: 12 V DC or battery operation with accessory 2020.03
  • Hand-stroboscope with LCD display; the measured value will be shown in frequency as Hz or in revolutions in rmp
  • Fine adjustment of measuring range using a sensible push and turn encoder.
  • Automatic Standby: To protect with flash tube from wearing and to save power the instrument switches automatic off after a few minutes, if flash frequency is not changed. The last reading will be hold. By pushing the control knob the instrument starts again with the last displayed value.
  • Microprocessor-technics, high accuracy
  • Max. 450 Lux (depending in flash rate) at a distance of 50 cm

Standard Features

  • For best resolution automatic range switching
  • Handy, ergonomic shaped stroboscope with low weight
  • Bright Xenon-longlife flash tube
  • One hand use, easy to use
  • Industrial stroboscope with shatterproof plastic housing, VDE-approved

 Available Models

Model Description Frequency Range
3000-ND digital display for 220 – 250 V AC 4 – 335 Hz
3000-BD digital display for 12 V DC (optional battery pack 2020.03) 4 – 335 Hz
alternative
3000-NA analog display for 220 – 250 V AC 2.5 – 300 Hz
3000-BA analog display for 12 V DC (optional battery pack 2020.03) 2.5 – 300 Hz

If 115 V AC is needed, please indicate when you order e. g. Stroboscope 3000-NA-115
Special models with extended frequency range (up to max. 30000 rpm) or higher light intensity (max. 600 Lux) are available on request.

SPECIFICATIONS

Models: 3000-BD and 3000-ND
Flash range: 4 – 335 Hz = 240 – 20100 FPM (rpm)
with automatic range switching
Power supply: Stroboscope 3000-ND: 220 – 250 V AC, 50/60 Hz, 0.3 up to 0.5 A
Stroboscope 3000-BD: 12 V DC, 1.7 A
Light intensity: Max. 450 Lux (depending on flash rate) at a distance of 50 cm to the object
Flash duration: Approx. 2 – 7 µs
Accuracy: < 0.01 % of set value, ±1 digit
Adjustable measuring units: Hz or rpm
Display: Digital, 2 x 8 characters, LCD display
Standby mode: Data-Hold function, last setting is saved
Stroboscope 3000-BD: after 2 minutes
Stroboscope 3000-ND: after 5 minutes
Flash Tube: Xenon-longlife (durability approx. 250 h when flash is turned on)
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Plastic, shatterproof, VDE-approved
Dimensions: 155 x 95 x 80 mm (LxWxH)
Weight, net (gross): 3000-ND: approx. 600 g (800 g)
3000-BD: approx. 450 g (650 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

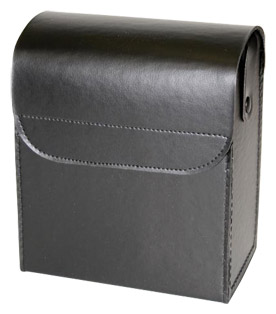

20030B – Leather Case

Leather imitation to keep save
Weight 0.2 kg, Dimensions 175 x 150 x 90 mm
Order number: 20030B















 2020.03 – Accumulator/Charger

Accumulator Case
maintenance-free Ni-MH accumulator, 12 V DC, 2.1 Ah
incl. spiral cord of total length 2.5 m with 3-pole twist lock plug.
Weight 450 g
Dimensions 70 x 50 x 30 mm

Plug Charger
with Euro/US adapters
100 – 240 V AC, 50 – 60 Hz
output processor controlled
Weight 210 g
Dimensions 104 x 47 x 36 mm
Order number: 2020.03

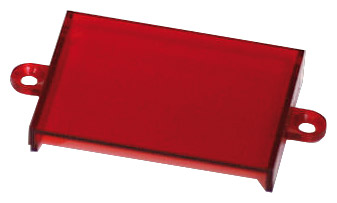

 20031B – Red Filter

supplies a better contrast to daylight and prevents the human eye from stress and symptoms of fatigue in case of long-time observation.
Order number: 20031B

SPARE PARTS

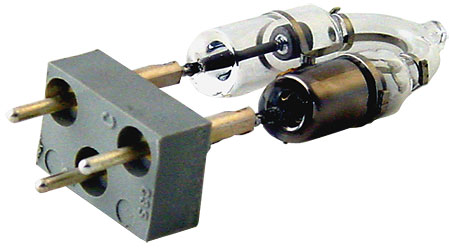

20010B – Flash Tube

 Order number: 20010B

DELIVERY INCLUDES

Stroboscope 3000-ND or 3000-BD with transport packing case, 1 clip cable with clamp for external 12 V power supply (only model 3000-BD) and 1 instruction manual in German and English
