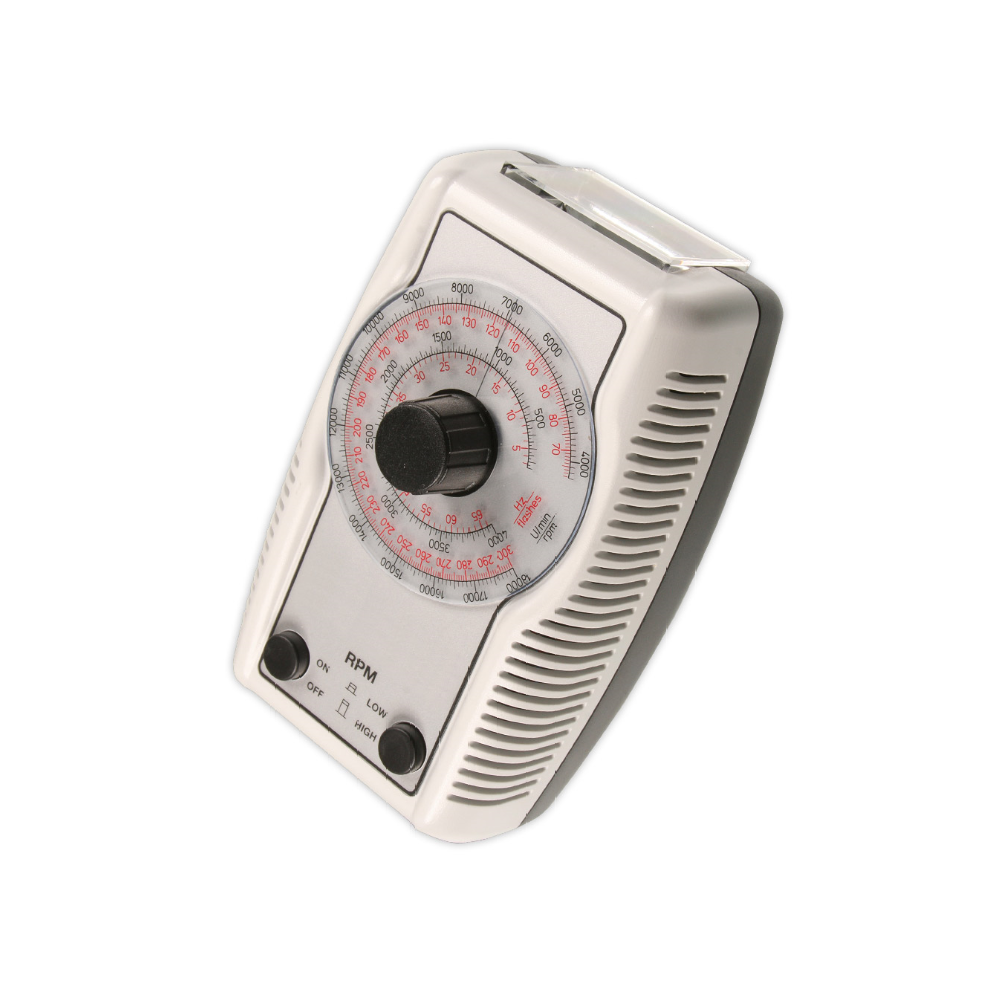

3000-NA and 3000-BA
Stroboscope

Measuring range 150 – 18000 U/min
Frequency range 2.5 – 300 Hz
Hand held stroboscope for non-contact determination of revolutions, for monitoring moving parts and ascertain the oscillation frequency of running systems

Small, compact stroboscope with 450 Lux at 50 cm distance to the measuring object

Small, compact stroboscope with 450 Lux at 50 cm distance to the measuring object

Special Features

  • 2 different models
    • Stroboscope 3000-NA: Mains operation 220 – 250 V AC
    • Stroboscope 3000-BA: 12 V DC (optional: battery operation with accessory 2020.03)
  • Fine adjustment of measuring range by push and turn encoder
  • Small, ergonomic designed stroboscope with low weight
  • Max. 450 Lux (depending in flash rate) at a distance of 50 cm

Standard Features

  • The measuring range is split in 2 overlapping ranges
    I. 150 – 4000 rpm (flashes/min)
    II. 3700 – 18000 rpm (flashes/min)
  • Voltage stabilized, constant-temperature
  • Xenon-longlife flash tube
  • Easy to use
  • Industrial stroboscope with shatterproof plastic housing, VDE-approved

 Available Models

Model Description Frequency Range
3000-NA analog display for 220 – 250 V AC 2.5 – 300 Hz
3000-BA analog display for 12 V DC (optional with Accumulator 2020.03) 2.5 – 300 Hz
alternative
3000-ND digital display for 220 – 250 V AC 4 – 335 Hz
3000-BD digital display for 12 V DC (optional with Accumulator 2020.03) 4 – 335 Hz

 If 115 V AC is needed, please indicate when you order e. g. stroboscope 3000-NA-115

SPECIFICATIONS

Model: 3000-NA and 3000-BA
Flash range: 2.5 – 300 Hz = 150 – 18000 U/min
Power supply: Stroboscope 3000-NA: 220 – 250 V AC, 50/60 Hz, 0.3 up to 0.5 A
Stroboscope 3000-BA: 12 V DC, 1.7 A
Light intensity: Max. 450 Lux (depending on flash rate) at a distance of 50 cm to the object
Flash duration: Approx. 2 – 7 µs
Accuracy: < ±2 % of set value

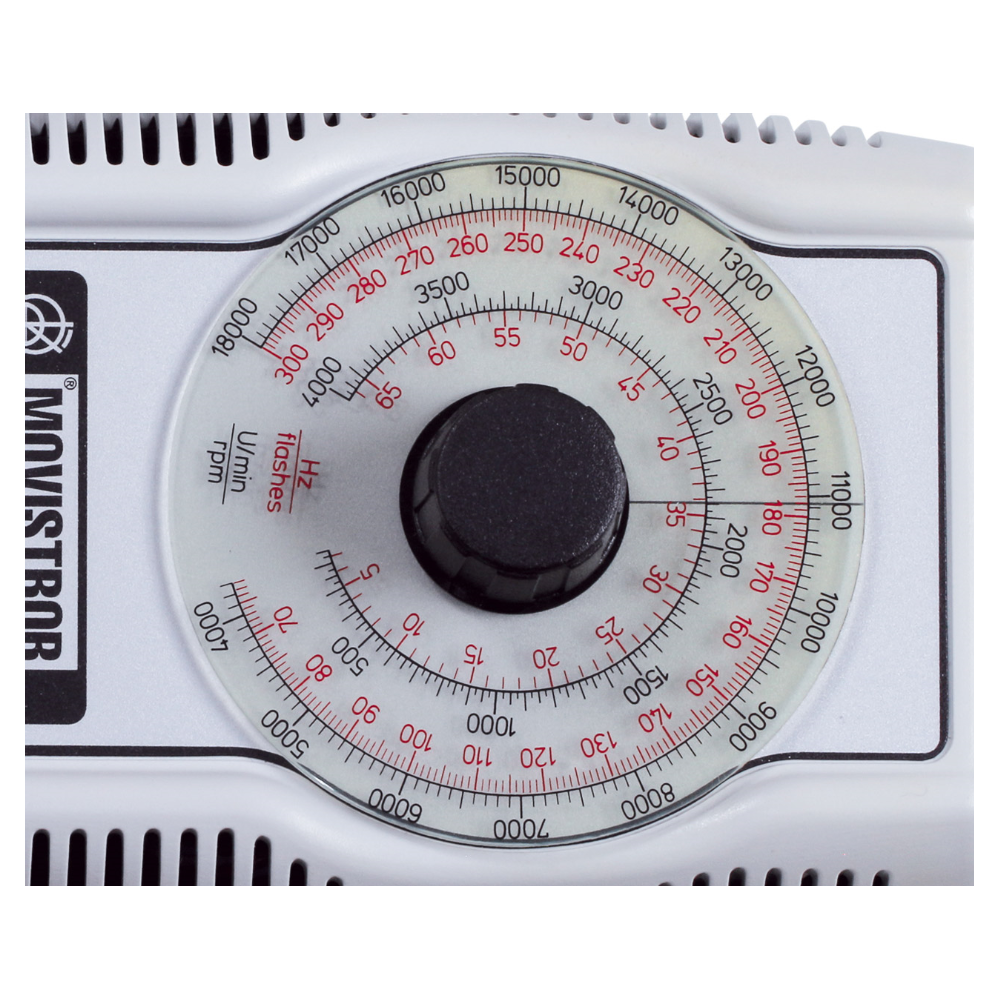

Display: Graduated dial analog, in Hz and rpm, split in 2 overlapping ranges:
I. 150 – 4000 U/min
II. 3700 – 18000 U/min
Flash tube: Xenon-longlife (durability approx. 250 h when flash is turned on)
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Plastic, shatterproof, VDE-approved
Dimensions: 155 x 95 x 85 mm (LxWxH)
Weight, net (gross): Stroboscope 3000-NA: approx. 600 g (800 g)
Stroboscope 3000-BA: approx. 450 g (650 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

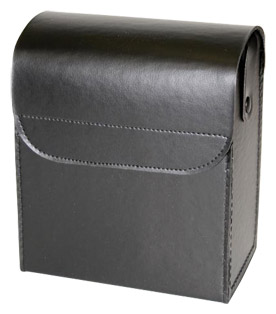

20030B – Leather Case

Leather imitation to keep save
Weight 0.2 kg, Dimensions 175 x 150 x 90 mm
Order number: 20030B

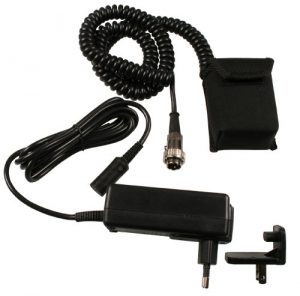

 2020.03 – Accumulator/Charger

Accumulator Case
maintenance-free Ni-MH accumulator, 12 V DC, 2.1 Ah
incl. spiral cord of total length 2.5 m with 3-pole twist lock plug.
Weight 450 g
Dimensions 70 x 50 x 30 mm

Plug Charger
with Euro/US adapters
100 – 240 V AC, 50 – 60 Hz
output processor controlled
Weight 210 g
Dimensions 104 x 47 x 46 mm
Order number: 2020.03

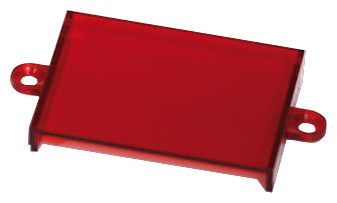

 20031B – Red Filter

supplies a better contrast to daylight and prevents the human eye from stress and symptoms of fatigue in case of long-time observation.
Order number: 20031B











SPARE PARTS

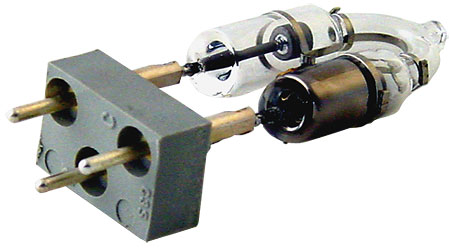

20010B – Flash Tube

Order number: 20010B

DELIVERY INCLUDES

Stroboscope 3000-NA or 3000-NB with transport packing case, 1 clip cable for external 12 V power supply (only model 3000-BA) and 1 operating instruction in German and English
