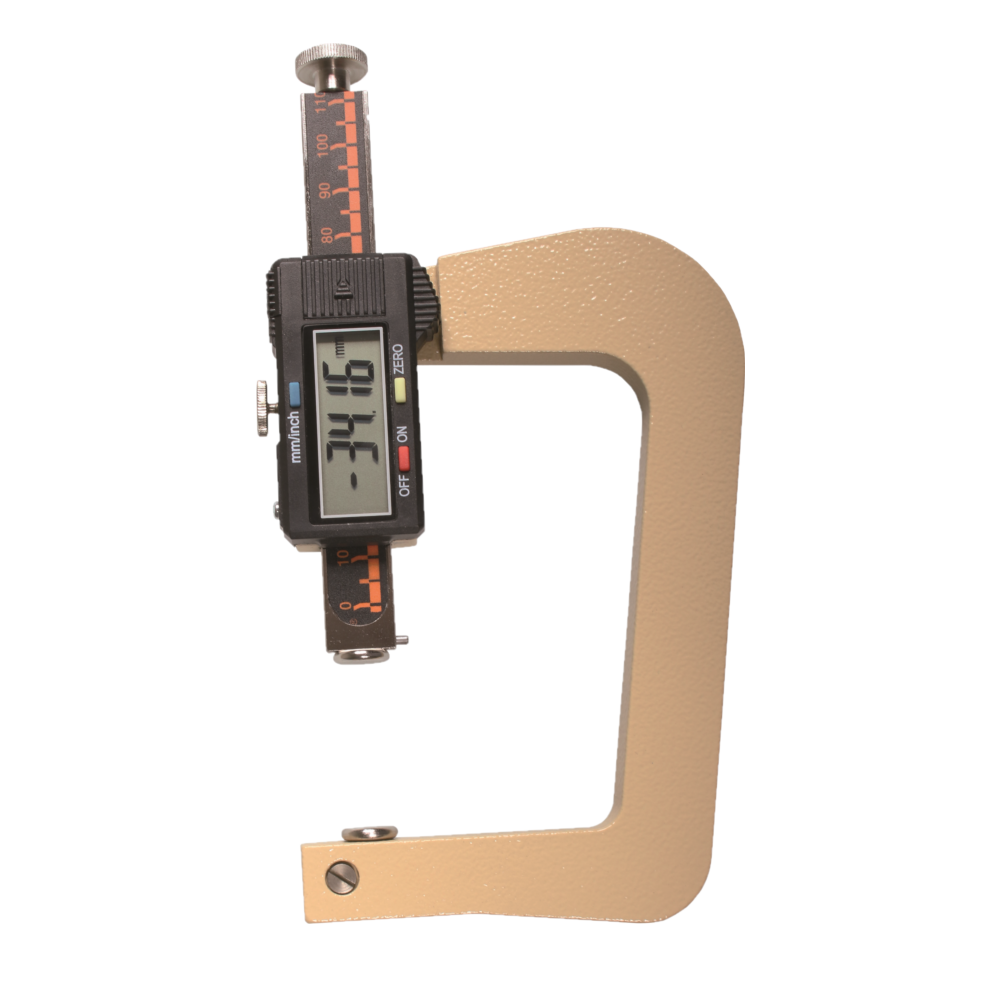

RMU-30-50-75
Thickness Gauge

Measuring range:
0 – 30 mm / 1.2 inch
0 – 50 mm / 2 inch
0 – 75 mm / 3 inch
Resolution: 0.01 mm / 0.0005 inch
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self opening thickness gauge with high accuracy and resolution

Special Features

  • thickness gauges RMU features an easy to read digital display along with the high accuracy
  • The RMU series is available with 5 different feelers, which can be found below
  • Screw for fixing the probe
  • Measuring by pressing the plunger rod
  • Opening by spring force – self opening thickness gauge RMU

  •  Output signal: USB

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Zero setting by pushing a button

 Available Models

Model
 Measuring Range
 Resolution Depth of Jaw
RMU-30 30 mm
1.2 inch		 0.01 mm
0.0005 inch		 50 mm
RMU-50 50 mm
2 inch		 0.01 mm
0.0005 inch		 50 mm
RMU-75 75 mm
3 inch		 0.01 mm
0.0005 inch		 50 mm
alternative
RMP-30 30 mm
1.2 inch		 0.01 mm
0.0005 inch		 40 mm

 To order, please indicate the desired feeler, e.g. RMU-30-B for gauge with feeler “B”

SPECIFICATIONS

Model RMU-30 Model RMU-50 Model RMU-75
Resolution: 0.01 mm / 0.0005 inch 0.01 mm / 0.0005 inch 0.01 mm / 0.0005 inch
Measuring range: 0 – 30 mm / 1.2 inch 0 – 50 mm / 2 inch 0 – 75 mm / 3 inch
Depth of jaw: 50 mm 50 mm 50 mm
Feeler shape: A/B/C/D/H A/B/C/D/H A/B/C/D/H
Measuring principle: Self opening Self opening Self opening
Display: LCD, 10 mm high LCD, 10 mm high LCD, 10mm high
Measuring system: Capacitive Capacitive Capacitive
Battery: 1.55 V SR 44 1.55 V SR 44 1.55 V SR 44
Data output: USB USB USB
Weight, net (gross): Approx. 200 g (250 g) Approx. 220 g (270 g) Approx. 250 g (300 g)

Specifications subject to change without notice!

Please note:
Calibration report is not available for these models

FEELER SHAPE

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards







 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge.

*meets no DIN EN ISO standards





 Feeler B (flat)

Suitable for rubber, felt*, soft materials*, non wovens*, etc. diameter 20 mm

*meets no DIN EN ISO standard











 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm















 Feeler G (spherical)

Suitable for sheet metal, etc. radius 1.5 mm















 Feeler H (spherical)

For hard leather, plywood, fiberboard, etc., radius 6 mm















To order, please indicate the desired feeler, e.g. RMU-30-B for gauge with feeler “B”

OPTIONAL ACCESSORIES

SW-53 – Software Measuring Tool

Software for data transfer, displaying and analysis of measured data on PC
– Actual value
– Average value
– List of all readings
– Maximum
– Minimum
– Data storage in Excel
Order number: SW-53

 35012W – Data cable

Data cable USB used for data transfer via USB interface
Order number: 35012W

DELIVERY INCLUDES

Thickness gauge RMU with battery and transport packing case.
