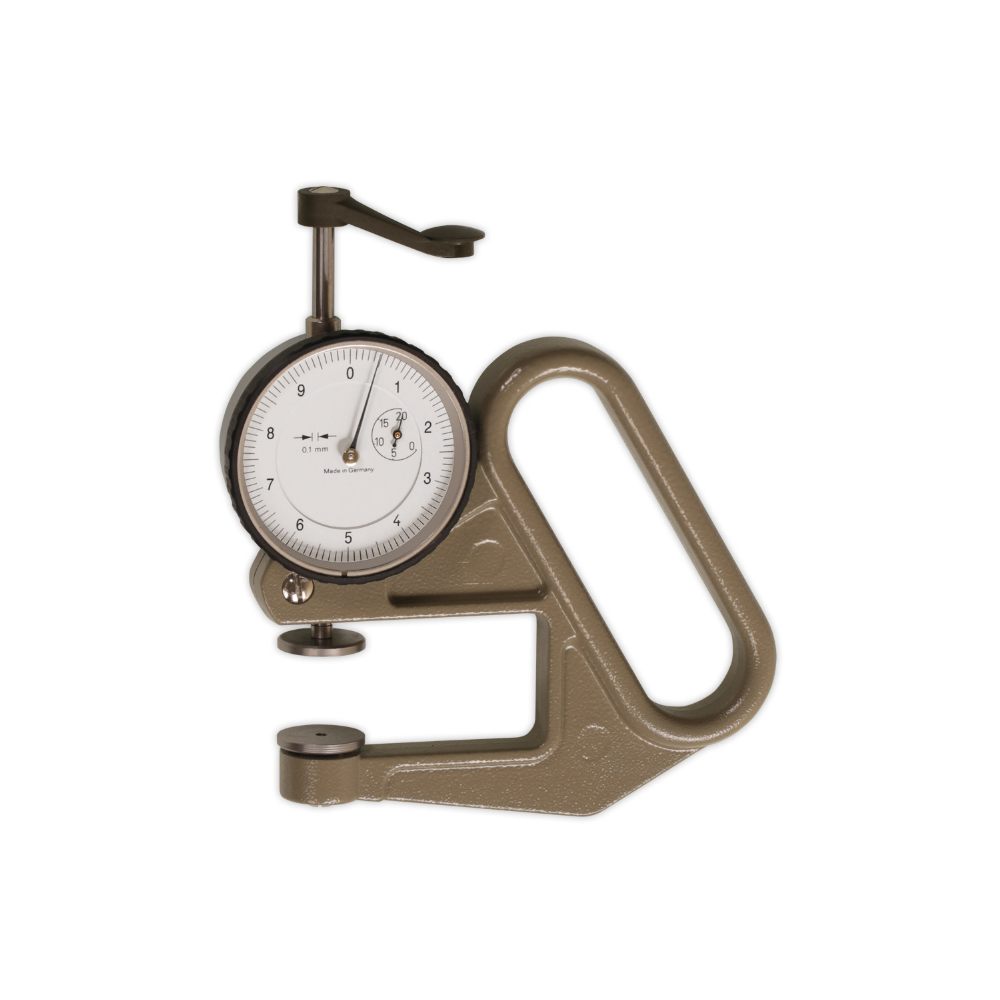

K-50-2
Thickness Gauge

Measuring range: 0 – 20 mm
Resolution: 0.1 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self opening thickness gauge for fast and reliably measurements

Special Features

  • Thickness gauge K-50-2 features an easy to read analog display along with the high accuracy
  • The thickness gauge is available with 5 different feelers, which can be found below
  • Measuring by pressing the plunger rod
  • Opening by spring force – self opening thickness gauge K-50-2

 Available Models

Model Measuring Range
 Resolution Depth of jaw
K-50-2 20 mm 0.1 mm 50 mm
alternative
K-15 10 mm 0.1 mm 15 mm
KA-50 10 mm 0.1 mm 50 mm
K-50 10 mm 0.1 mm 50 mm
K-50-3 30 mm 0.1 mm 50 mm
K-50-5 50 mm 0.1 mm 50 mm
K-100 30 mm 0.1 mm 100 mm
K-200 30 mm 0.1 mm 200 mm
K-300 30 mm 0.1 mm 300 mm
K-300-50 50 mm 0.1 mm 300 mm
K-400 30 mm 0.1 mm 400 mm
K-600-50 50 mm 0.1 mm 600 mm

To order, please indicate the desired feeler, e.g. K-50-2-B for gauge with feeler “B”

SPECIFICATIONS

Resolution: 0.1 mm
Measuring range: 20 mm
Depth of jaw: 50 mm
Bezel diameter: 54 mm
Feeler shape: A/B/C/D/E
Measuring principle: Self opening
Weight, net (gross): Approx. 300 g (350 g)

Specifications subject to change without notice!

FEELER

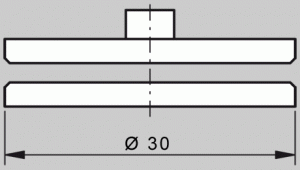

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards

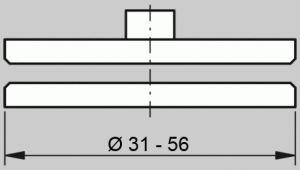

 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.,
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge

*meets no DIN EN ISO standards

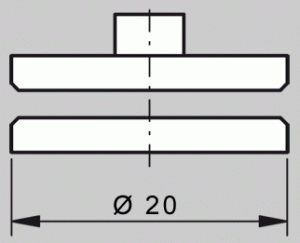

 Feeler B (flat)

For rubber, felt*, soft materials*, non wovens*, etc., diameter 20 mm

*meets no DIN EN ISO standard

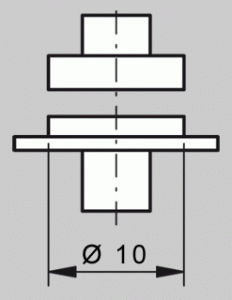

 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm

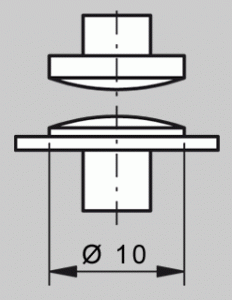

 Feeler D (curved)

For hard leather, plywood, fiberboard, etc., diameter 10 mm, radius 15 mm

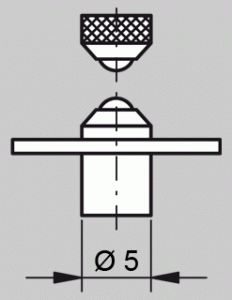

 Feeler E (spherical)

For sheet metal, etc. diameter 5 mm, radius 1.59 mm















To order, please indicate the desired feeler, e.g. K-50-2-B for gauge with feeler “B”

OPTIONAL ACCESSORIES

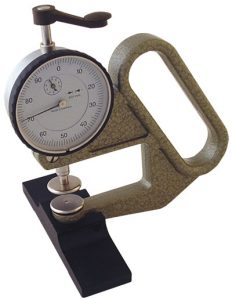

K30012K – Foot

The foot changes the for hand-held use designed thickness gauge K-50-2 for on-table operation. They can be used for a lot of applications.
Order number: 30012K

DELIVERY INCLUDES

Thickness gauge K-50-2 with transport packing case
