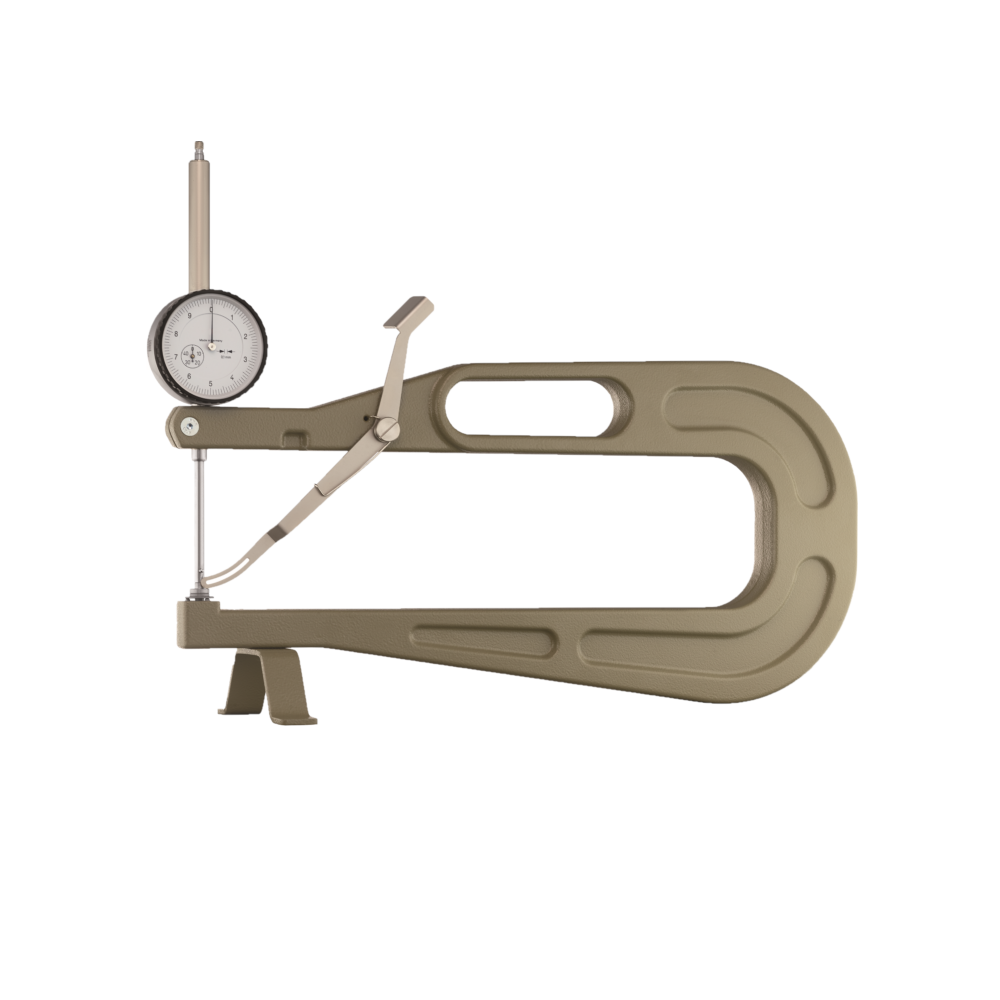

K-300-50
Thickness Gauge

Measuring range: 0 – 50 mm
Resolution: 0.1 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self closing thickness gauge for fast and reliable measurements

Special Features

Thickness gauge K-300-50 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force
Opening by lifting device – self closing thickness gauge K-300-50

Swing out foot for on-table operation

Available Models

Model	Measuring Range	Resolution	Depth of jaw
K-300-50	50 mm	0.1 mm	300 mm
	alternative
K-15	10 mm	0.1 mm	15 mm
KA-50	10 mm	0.1 mm	50 mm
K-50	10 mm	0.1 mm	50 mm
K-50-2	20 mm	0.1 mm	50 mm
K-50-3	30 mm	0.1 mm	50 mm
K-50-5	50 mm	0.1 mm	50 mm
K-100	30 mm	0.1 mm	100 mm
K-200	30 mm	0.1 mm	200 mm
K-300	30 mm	0.1 mm	300 mm
K-400	30 mm	0.1 mm	400 mm
K-600-50	50 mm	0.1 mm	600 mm

To order, please indicate the desired feeler, e.g. K-300-50-B for gauge with feeler “B”

SPECIFICATIONS

Resolution:	0.1 mm
Measuring range:	50 mm
Depth of jaw:	300 mm
Bezel diameter:	54 mm
Feeler shape:	A/B/C/D/E
Measuring principle:	Self closing
Weight, net (gross):	Approx. 3000 g (2000 g)

Specifications subject to change without notice!

FEELER SHAPE

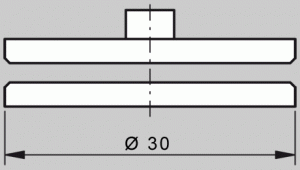

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards

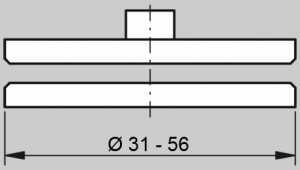

Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.,
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge

*meets no DIN EN ISO standards

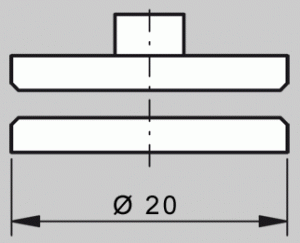

Feeler B (flat)

For rubber, felt*, soft materials*, non wovens*, etc., diameter 20 mm

*meets no DIN EN ISO standard

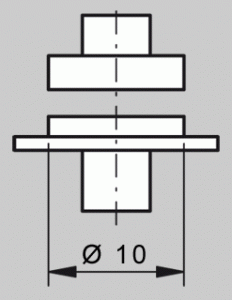

Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm

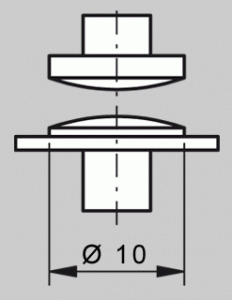

Feeler D (curved)

For hard leather, plywood, fiberboard, etc., diameter 10 mm, radius 15 mm

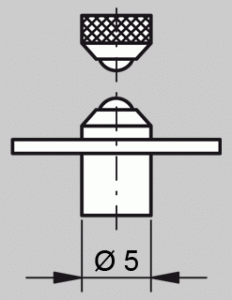

Feeler E (spherical)

For sheet metal, etc. diameter 5 mm, radius 1.59 mm
