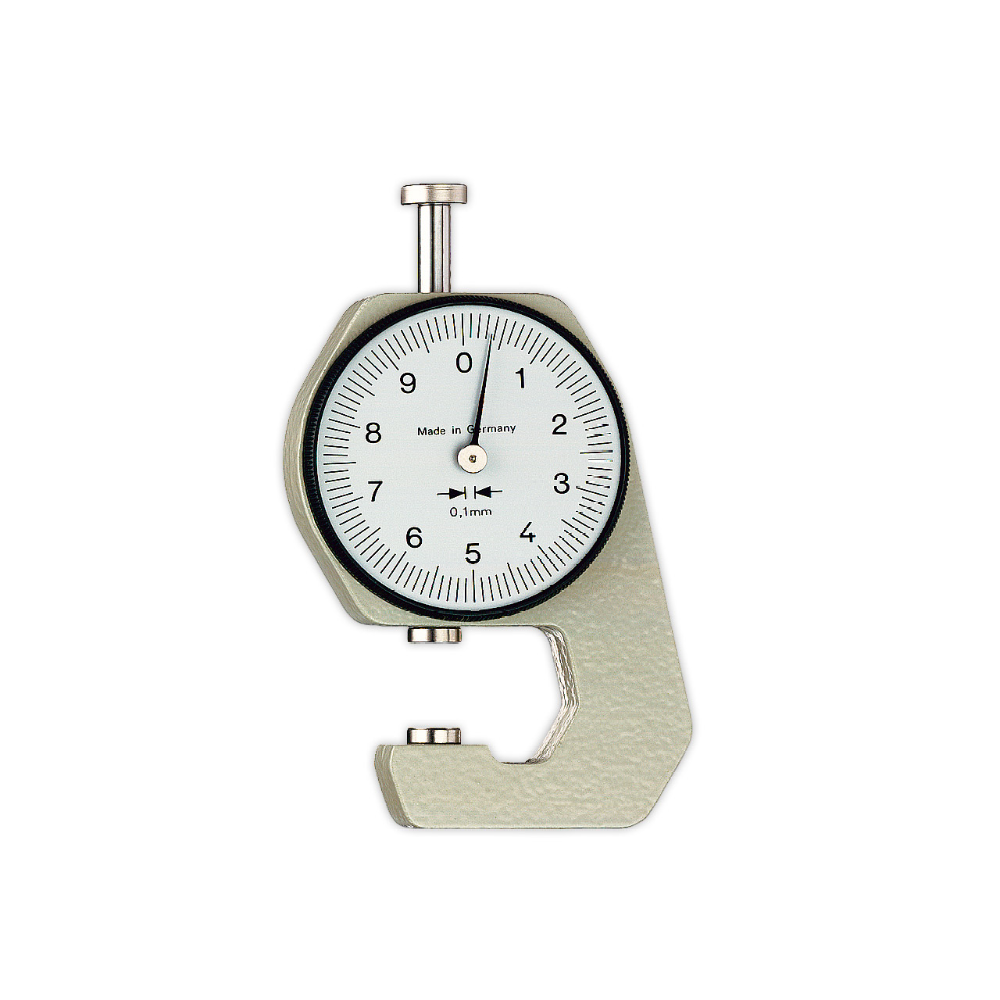

K-15
Thickness Gauge

Measuring range: 0 – 10 mm
Resolution: 0.1 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, foam and more

Self opening thickness gauge for fast and reliable measurements

Special Features

  • Thickness gauge K-15 features an easy to read analog display along with the high accuracy
  • The thickness gauge is fitted with a feeler Ø 6.35 mm
  • Measuring by pressing the plunger rod
  • Opening by spring force – self opening thickness gauge K-15

 Available models

Model Measuring Range
 Resolution Depth of jaw
K-15 10 mm 0.1 mm 15 mm
alternative
KA-50 10 mm 0.1 mm 50 mm
K-50 10 mm 0.1 mm 50 mm
K-50-2 20 mm 0.1 mm 50 mm
K-50-3 30 mm 0.1 mm 50 mm
K-50-5 50 mm 0.1 mm 50 mm
K-100 30 mm 0.1 mm 100 mm
K-200 30 mm 0.1 mm 200 mm
K-300 30 mm 0.1 mm 300 mm
K-300-50 50 mm 0.1 mm 300 mm
K-400 30 mm 0.1 mm 400 mm
K-600-50 50 mm 0.1 mm 600 mm

SPECIFICATIONS

Resolution: 0.1 mm
Measuring range: 10 mm
Depth of jaw: 15 mm
Bezel diameter: 36 mm
Feeler shape: F
Measuring principle: Self opening
Weight, net (gross): Approx. 60 g (110 g)

Specifications subject to change without notice!

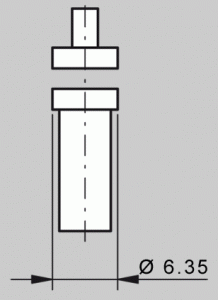

FEELER SHAPE

Feeler F (Flat)

For soft leather, plywood, fiberboard, etc.,diameter 6.35 mm

DELIVERY INCLUDES

Thickness gauge K-15 in leather case
