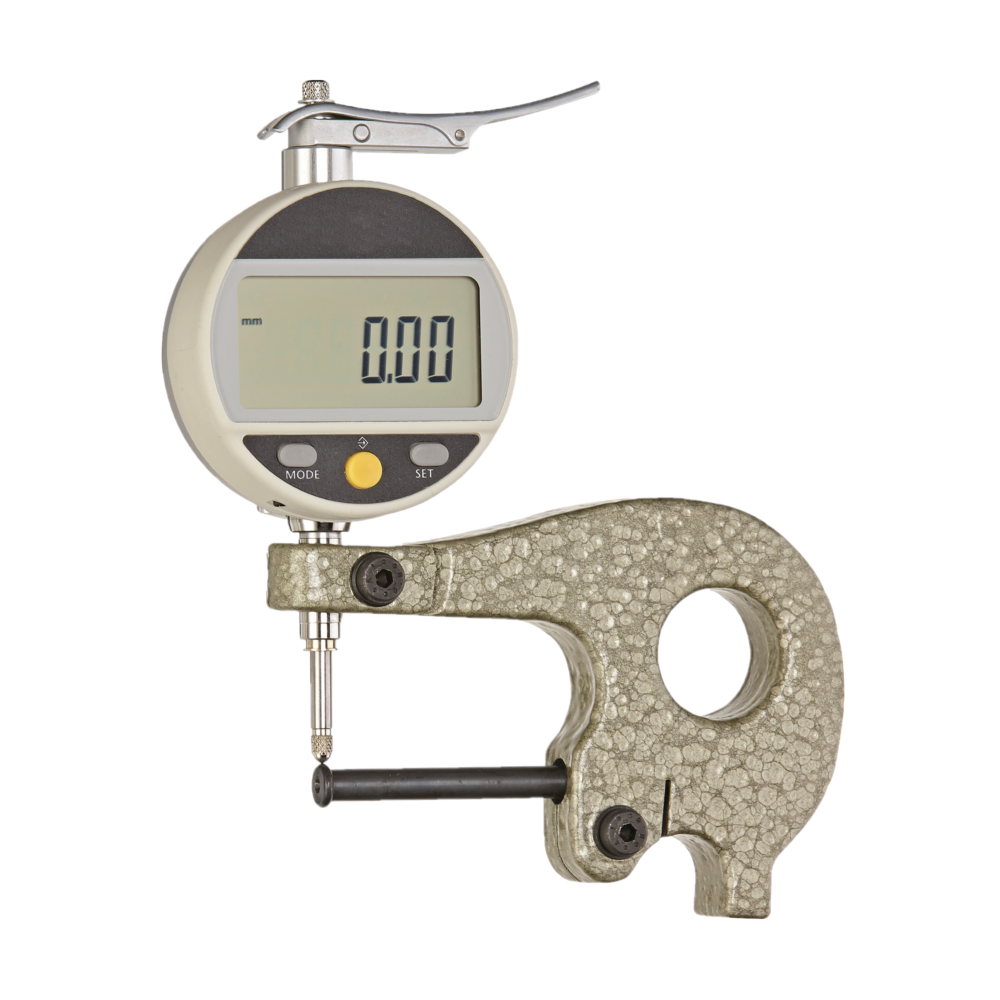

JD-50-W
Digital Thickness Gauge for Tube Walls

Measuring range: 0 – 12.5 mm / 0 – 0.5 Inch
Resolution: 0.01 mm / 0.0005 Inch
Thickness gauge for measuring tube walls

Self closing thickness gauge with high accuracy and resolution.

Special Features

  • Thickness gauge JD-50-W features an easy to read digital display along with the high accuracy. It is used to measure the wall thickness of tubes.
  • The gauge is equipped with a contact point 6 mm Ø, which has at its end a collar with a radius of 1 mm. This enables it to check tubes,
    which still have a burr from parting.
  • Measuring by specified spring force
  • Opening by lifting device (lever) – self closing thickness gauge JD-50-W

  •  Output signals:
    – USB
    – RS-232

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Thickness gauge with Sylvac dial gauge

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
 Display
JD-50-W 12.5 mm
0.5 inch		 0.01 mm
0.0005 inch		 50 mm digital
alternative
J-50-W 10 mm 0.01 mm 50 mm analog

SPECIFICATIONS

Resolution: 0.01 mm / 0.0005 inch
Measuring range: 0 – 12.5 mm / 0.5 inch
Depth of Jaw: 50 mm
Measuring principle: Self closing
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (350 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

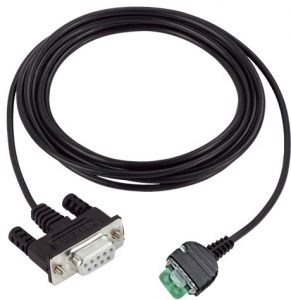

30051K – RS-232 Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the RS-232 output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a 9 pin plug. For dial gauges from January 2014
Order number: 30051K

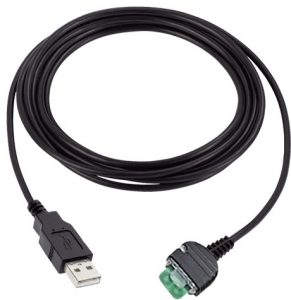

 30052K – USB Connecting Cable (For dial gauges from January 2014)





The data transmission cable allows a fast connection of the digital gauge with the USB output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a USB plug. For dial gauges from January 2014
Order number: 30052K

DELIVERY INCLUDES

Thickness gauge JD-50-W with battery and carrying case.
