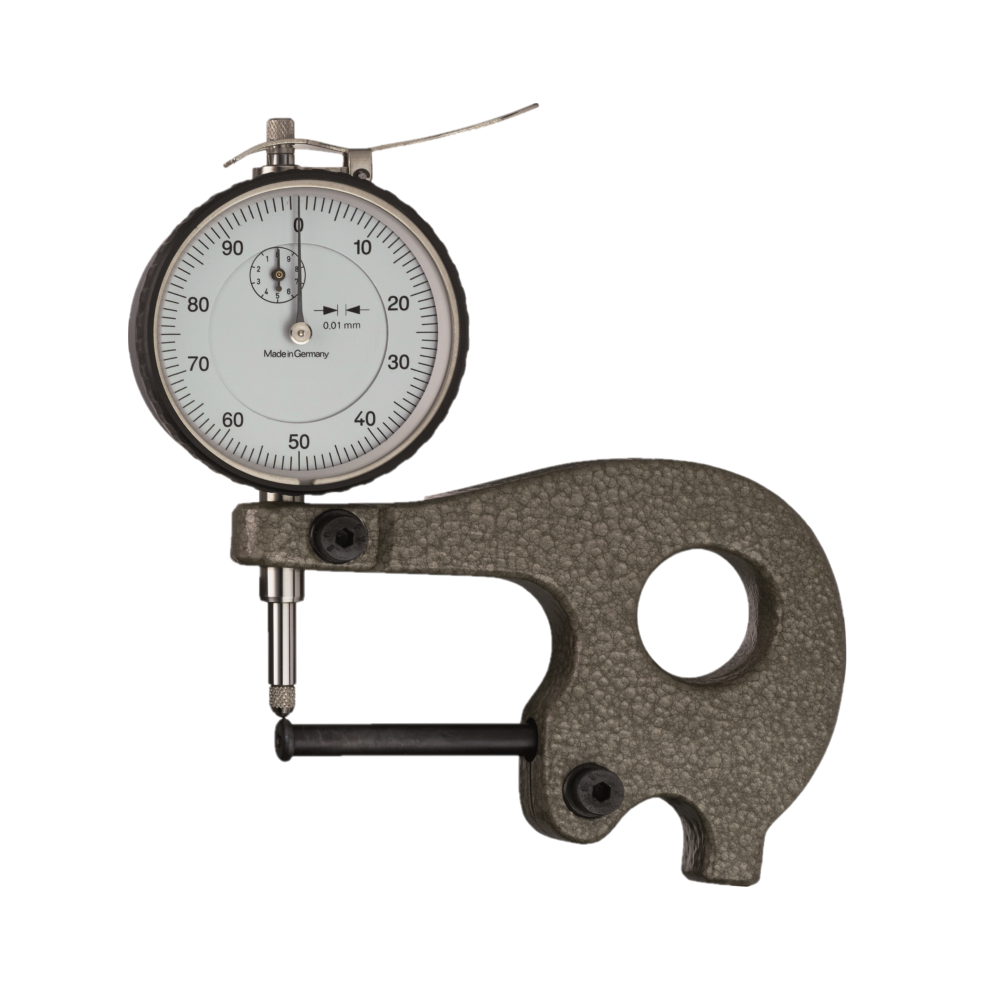

J-50-W
Analog Thickness Gauge for Tube Walls

Measuring range: 0 – 10 mm
Resolution: 0.01 mm
Thickness gauge for measuring tube walls

Self closing thickness gauge with high accuracy and resolution

Special Features

  • Thickness gauge J-50-W features an easy to read analog display along with the high accuracy. It is used to measure the wall thickness of tubes.
  • The gauge is equipped with a contact point 6 mm Ø, which has at its end a collar with a radius of 1 mm. This enables it to check tubes,
    which still have a burr from parting.
  • Measuring by specified spring force
  • Opening by lifting device (lever) – self closing thickness gauge J-50-W

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
 Display
J-50-W 10 mm 0.01 mm 50 mm  analog
alternative
JD-50-W 12.5 mm
0.5 Inch		 0.01 mm
0.0005 Inch		 50 mm digital

SPECIFICATIONS

Resolution: 0.01 mm
Measuring range: 10 mm
Depth of jaw: 50 mm
Bezel diameter: 54 mm
Measuring principle: self closing
Weight, net (gross): Approx. 300 g (350 g)

Specifications subject to change without notice!

DELIVERY INCLUDES

Thickness gauge J-50-W in transport packing case
