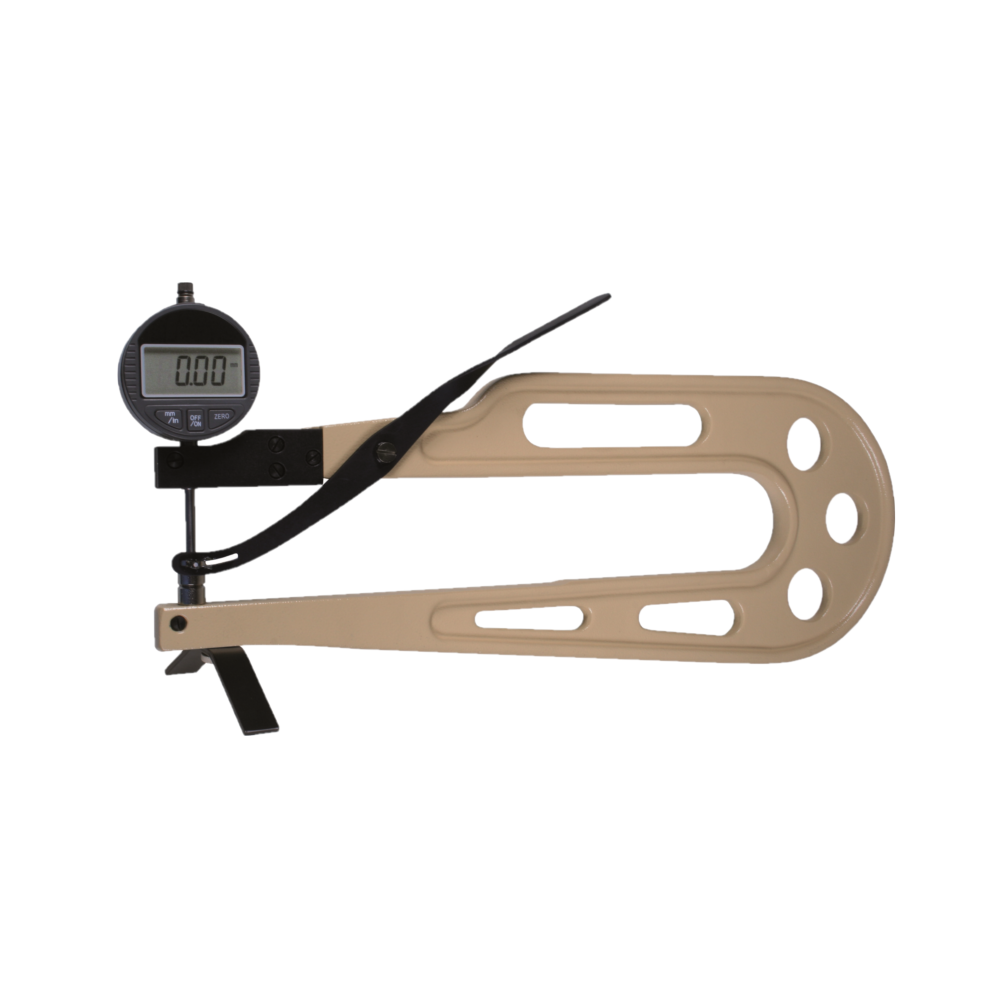

DMD-830-1-F
Thickness Gauge

Measuring range: 0 – 25 mm / 0 – 1 inch
Resolution: 0.01 mm / 0.0005 Inch
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foams and more

Self closing thickness gauge with high accuracy and resolution

Special Features

  • Thickness gauge DMD-830-1-F features an easy to read digital display along with the high accuracy
  • The thickness gauge is available with 5 different feelers, which can be found below
  • Measuring by spring force approx 2 N
  • Opening by lifting device (lever) – self closing thickness gauge DMD-830-1-F

  •  The thickness gauge is equipped with a big foot (Code F) for better operation
  • Output signal: USB

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Zero setting by pushing a button

 Available Models



Model Measuring Range
 Resolution Depth of Jaw
DMD-830-1-F 25 mm
1 inch		 0.01 mm
0.0005 inch		 300 mm
alternative
DMD-3 10 mm
0.4 inch		 0.01 mm
0.0005 inch		 50 mm
DMD-3-1 25 mm
1 inch		 0.01 mm
0.0005 inch		 50 mm
DMD-820 10 mm
0.4 inch		 0.01 mm
0.0005 inch		 200 mm
DMD-820-1 25 mm
1 inch		 0.01 mm
0.0005 inch		 200 mm
DMD-830F 10 mm
0.4 inch		 0.01 mm
0.0005 inch		 300 mm
DMD-850-F 10 mm
0.4 inch		 0.01 mm
0.0005 inch		 500 mm
DMD-850-1-F 25 mm
1 inch		 0.01 mm
0.0005 inch		 500 mm

To order, please indicate the desired feeler, e.g. DMD-830-1-F-B for gauge with feeler “B”

Thickness gauge DMD-830-1-F can optionally be equipped with an additional weight, to achieve a measuring pressure according international standards:
DD-300-T Code E for DIN EN ISO 5084 (textiles)
DD-300-V Code E for DIN EN ISO 9073-2 (standard fleece)
DD-300-L Code E for DIN 2589 (leather)

SPECIFICATIONS

Resolution: 0.01 mm / 0.0005 inch
Measuring range: 0 – 25 mm / 1 inch
Depth of jaw: 300 mm
Measuring pressure: 2 N
Measuring principle: Self closing
Feeler shape: A/B/C/G/H
Display: LCD 4 digit, 8 mm high
Measuring system: Capacitive
Data output: USB
Weight, net (gross): Approx. 1000 g (1050 g)

Specifications subject to change without notice!

FEELER SHAPE

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards

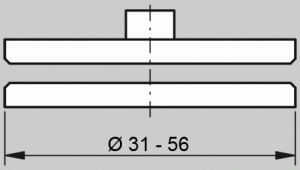

 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge.

*meets no DIN EN ISO standards





 Feeler B (flat)

Suitable for rubber, felt*, soft materials*, non wovens*, etc. diameter 20 mm

*meets no DIN EN ISO standard

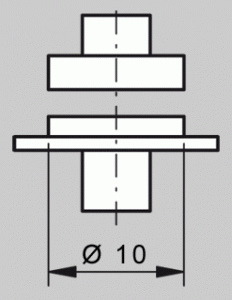

 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm

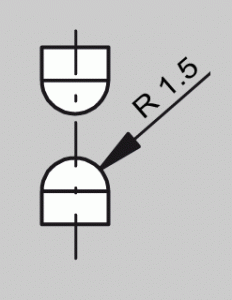

 Feeler G (spherical)

Suitable for sheet metal, etc. radius 1.5 mm

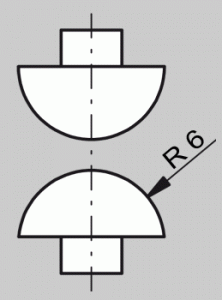

 Feeler H (spherical)

For hard leather, plywood, fiberboard, etc., radius 6 mm















To order, please indicate the desired feeler, e.g. DMD-830-1-F-B for gauge with feeler “B”

OPTIONAL ACCESSORIES

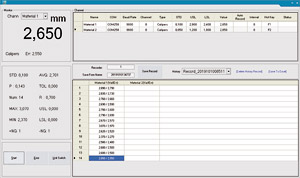

SW-53 – Software Measuring Tool

Software for data transfer, displaying and analysis of measured data on PC
– Actual value
– Average value
– List of all readings
– Maximum
– Minimum
– Data storage in Excel
Order number: SW-53

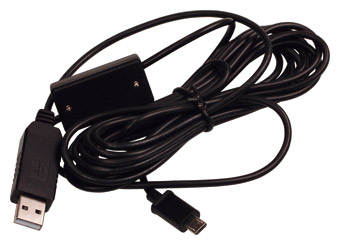

 35012W – Data cable

Data cable USB used for data transfer via USB interface
Order number: 35012W

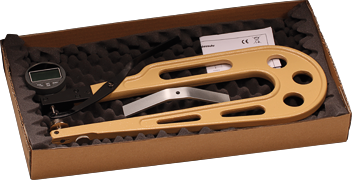

DELIVERY INCLUDES

Thickness gauge DMD-830-1-F with transport packing case
