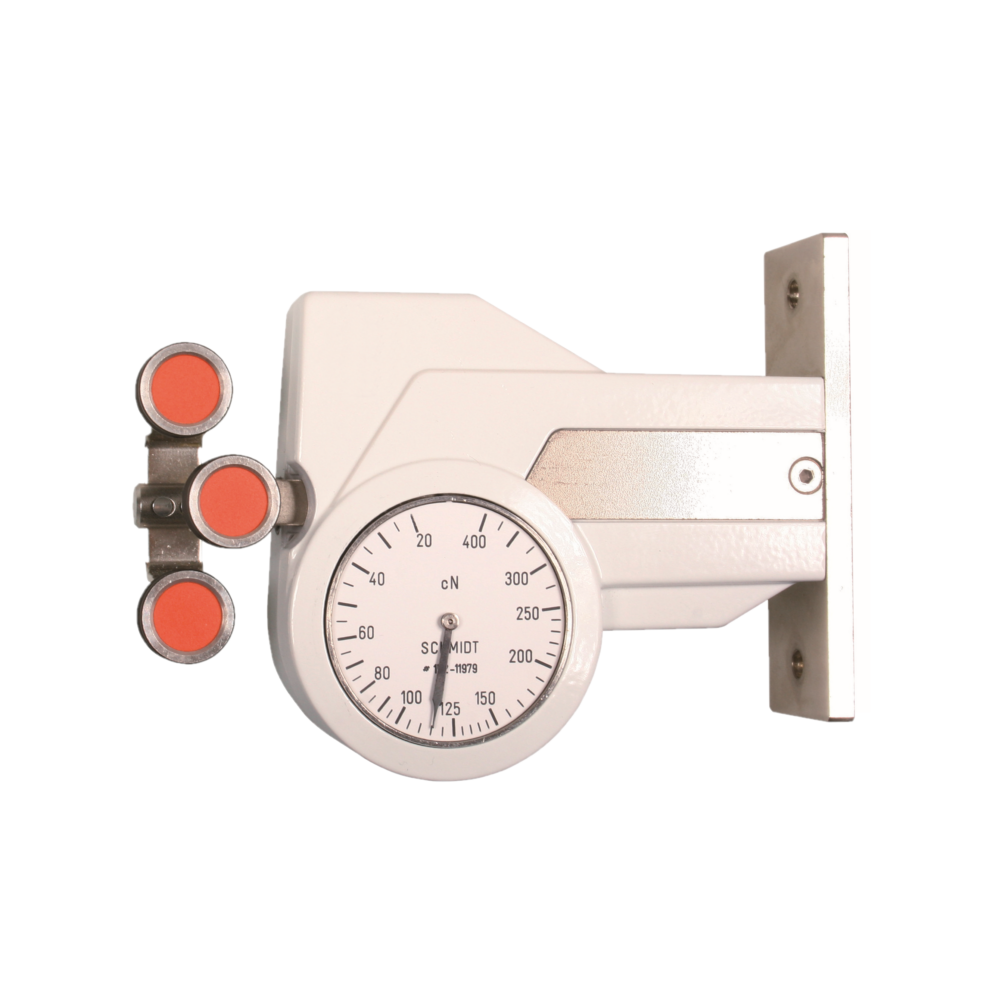

DX2S
Tension Meter

10 Tension ranges available
from 10 – 50 cN up to 5 – 20 daN
Stationary mechanical tension meter for measuring tensions of fibres, threads, wires, ribbons etc.

Universal tension meter for versatile applications in all sectors of industry

Special purpose models with big, small and tape rollers available

Special Features

  • The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
  • Easy online mounting with 2 screws
  • Tension meter DX2S is available with custom-built configurations and special calibrations
  • Note: Tension meter DX2S do not include a filament guide and material thickness compensator.

Standard Features

  • Everything in operator’s view:
    – the guide rollers
    – the measured material
    – the readings
  • Ball-bearing mounted, V-grooved guide rollers
  • Each instrument is individually calibrated for highest accuracy
  • 41 mm Ø scale
  • Tension meter with rugged aluminium housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Tension Range
 Measuring Head Width*
 SCHMIDT
Calibration Material**
DX2S-50 10 – 50 cN 54 mm PA: 0.12 mm Ø
DX2S-120 20 – 120 cN 54 mm PA: 0.12 mm Ø
DX2S-200 20 – 200 cN 54 mm PA: 0.12 mm Ø
DX2S-400 20 – 400 cN 54 mm PA: 0.20 mm Ø
DX2S-1000 50 – 1000 cN 54 mm PA: 0.30 mm Ø
DX2S-2000 200 – 2000 cN 116 mm PA: 0.50 mm Ø
DX2S-5000 400 – 5000 cN 116 mm PA: 0.80 mm Ø
DX2S-8000 1000 – 8000 cN 116 mm PA: 1.00 mm Ø
DX2S-10K 2.5 – 10 daN 116 mm PA: 1.00 mm Ø
DX2S-20K 5 – 20 daN 216 mm PA: 1.50 mm Ø

Other tension ranges, measuring head widths available on request.
Other units of measure available – g or kg.
* Outer distance between outside guide rollers
** Suitable for 95 % of applications – PA = Polyamide Monofilament

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross): Up to model DX2S-10K approx. 400 g (800 g)
DX2S-20K approx. 500 g (1000 g)

Specifications subject to change without notice!

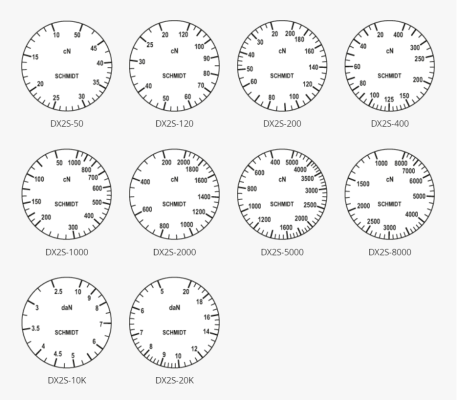

SCALES


SCHMIDT scales are manufactured according to the most stringent quality requirements. Printed scales are not used. Instead, each scale is individually marked for the instrument involved. This ensures highest quality. Our special procedure makes it possible to provide tension meter DX2S

  • calibrated to custom supplied material
  • fine tuned to a specific tension range
  • other units of measure such as g or kg

GUIDE ROLLERS

Order-Code Line Speed vmax. … m/min Roller Material
Standard 2000 Hard-coated aluminium
Code K 3500 Hard-coated aluminium
Code H 5000 Plasma-coated aluminium (model DX2S-120 and higher)
Code T 1000 Plastic (POM) black
Code W 1000 Nickel-plated steel
Code ST 1000 Hardened steel
Code B 1000 Tempered steel
Code CE2 1000 Aluminium ceramic-coated
Code ASY 1000 Hard-coated aluminium, asymmetrical groove
(model DX2S-120 and higher)
Code ASYB 1000 Tempered steel, asymmetrical groove
(model DX2S-120 and higher)
Code U 2000 Hard-coated aluminium (radius R3)

ATTACHMENT

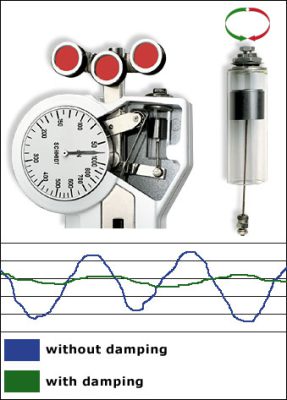

Code A – Air Damping

For tension range from 20 – 120 cN up to max. 400 – 5000 cN.
This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. This assures steady tension readings on scale.

DELIVERY INCLUDES

Tension meter DX2S in transport packaging, mounting screws, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
