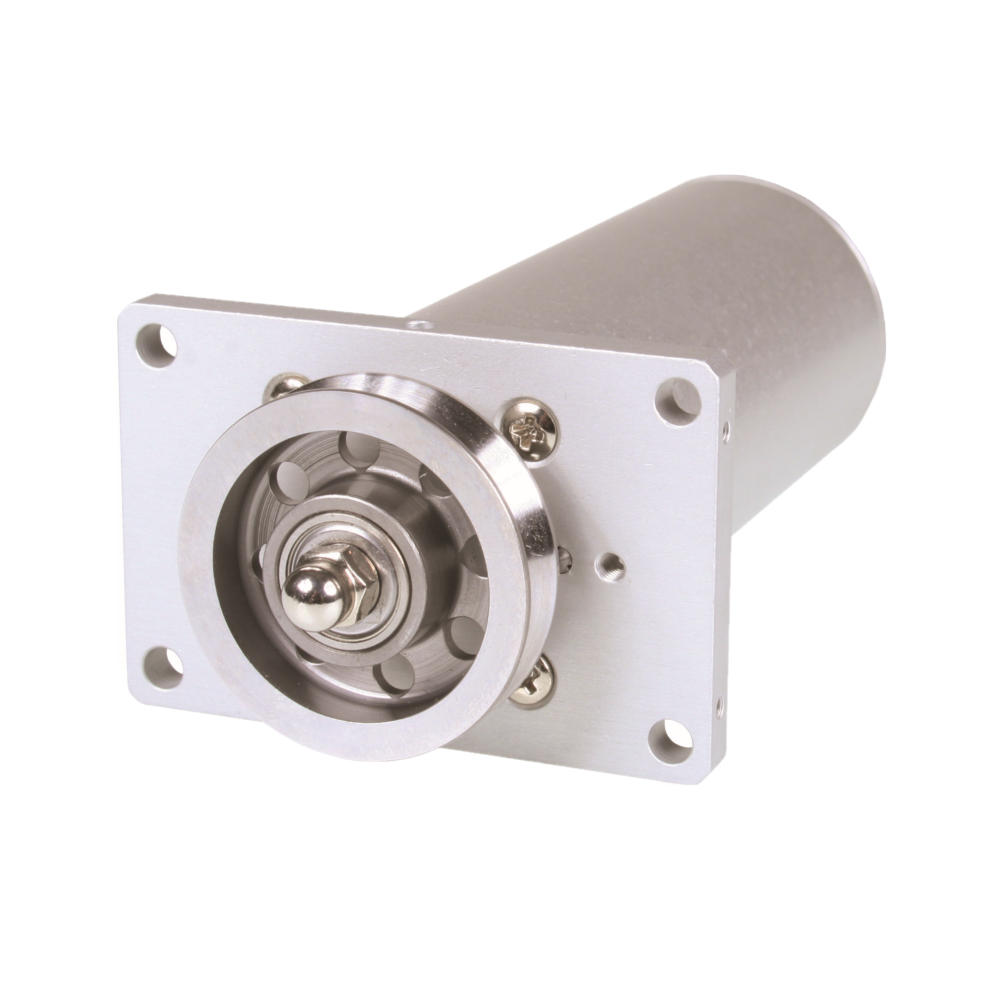

TSR
Tension Sensor

5 Tension ranges available
from 0 – 10 N up to 0 – 200 N
Online tension sensor for flexible material, as wires, thin ropes and cable up to 10 mm Ø, as well as linear materials up to 10 mm width

Large, hardened guide rollers for minimized material deflection with 29.5 mm or 70 mm groove Ø

Stationary electronic tension sensor, single roller system, for mounting at an existing deflection pulley

Special Features

  • Tension sensor TSR with integrated measuring amplifier and high accuracy 1 % FS
  • Sensor for installation at an existing deflection pulley; the in- and outcoming angle β has to be 20° or more
  • Ball-bearing mounted steel or aluminium guide rollers 29.5 mm and 70 mm groove Ø,
    – V-grooved (for material with max. 4 mm Ø)
    – U-grooved (for material with 3 up to 10 mm Ø)
    – tape grooved (for material with max. width of 10 mm)
  • Easy mounting of customer provided rollers – please contact us!
  • Various output signals are available
    – analog: 0 – 1 V (standard), 0 – 10 V (optional)
    – current: 4 – 20 mA (optional)
    – analog DMS: mV/V (optional)
  • Easy installation, even afterwards, on existing machines
  • Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – load cell with hight quality strain gauge bridge
  • Tension sensor with mechanical overload protection

Standard Features

  • Tension sensor with rugged aluminium housing
  • Required power supply +15…24 V DC (regulated)
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Nominal Load
TSR-10N 0 – 10 N
TSR-20N 0 – 20 N
TSR-50N 0 – 50 N
TSR-100N 0 – 100 N
TSR-200N 0 – 200 N

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale and ±1 digit
Other calibration material:
±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Natural frequency: Approx. 500 Hz, depending on tension range
Signal processing: Analog
Temperature drift: Less than ±0.05 % full scale/ºC
Output signal: Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 – 10 V DC (analog), 4 – 20 mA (current) or mV/V (DMS)
Damping (fg): Standard: 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, 21 mA regulated
Code A3: max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated
Housing material: Aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 250 g (400 g)

Specifications subject to change without notice!

MOUNTING

Tension sensor TSR can be easily mounted everywhere a deviating point respectively a guide roller is built in at the machine. These places can be used as measuring point, assumed the in and outgoing angle is constant.

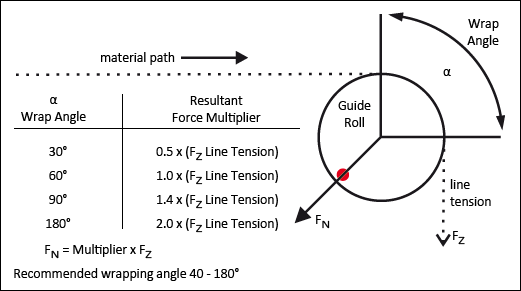

DETERMINING THE TENSION RANGE

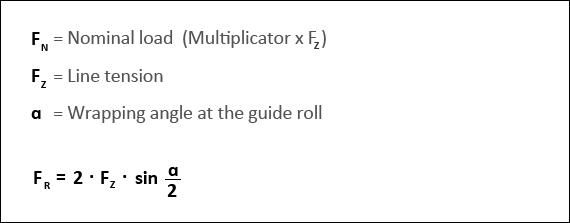

The tension range can be calculated for every wrapping angle with this formula:

When selecting the nominal measurement force it is necessary to take into account the weight of the guide roll and raise the nominal load respectively, particularly when working with small nominal forces.

GUIDE ROLLERS

Order-Code Line Speed vmax. … m/min Roller Material
Standard 4000 Hardened steel (max. Ø 4 mm)
Code R1 4000 Hard chrome-plated steel (radius R5)
Code F 4000 Hard-coated aluminium
Code FB 4000 Tempered steel
Code B6 2000 Hardened steel, width 6 mm
Code B10 2000 Hardened steel, width 10 mm

OPTIONAL ACCESSORIES

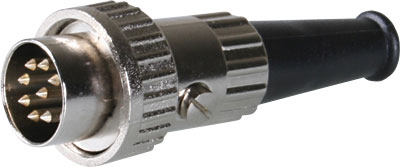

E10061 – Diode Plug with Bayonet Cap

Plug suitable for sensors of TS series,
cable outlet 3.5 – 6 mm
Order number: E10061

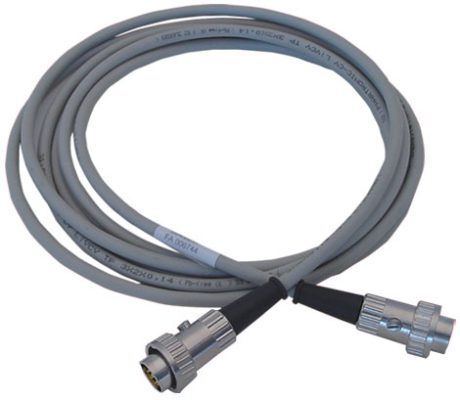

 EK0603, EK0605 and EK0610 – Connecting Cable with 2 diode plugs

Connecting cable with 2 diode plugs, for analog output and voltage signal.
For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m

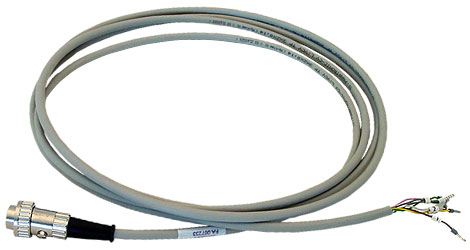

EK0612, EK0614 and EK0615 – Connecting Cable with 1 diode plug and open ends

Connecting cable with 1 diode plug and open ends, for analog output and current signal.
For connecting sensors of TS series to the display unit SC-PM.
Order number: EK0612, Length 3 m
Order number: EK0614, Length 5 m
Order number: EK0615, Length 10 m

OUTPUT SIGNAL

Standard

Output signal: 0 – 1 V DC











 Code A2

Output signal: 0 – 10 V DC











 Code A3

Output signal: 4 – 20 mA DC











 Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 3 m long

DELIVERY INCLUDES

Tension sensor TSR with transport packaging, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
