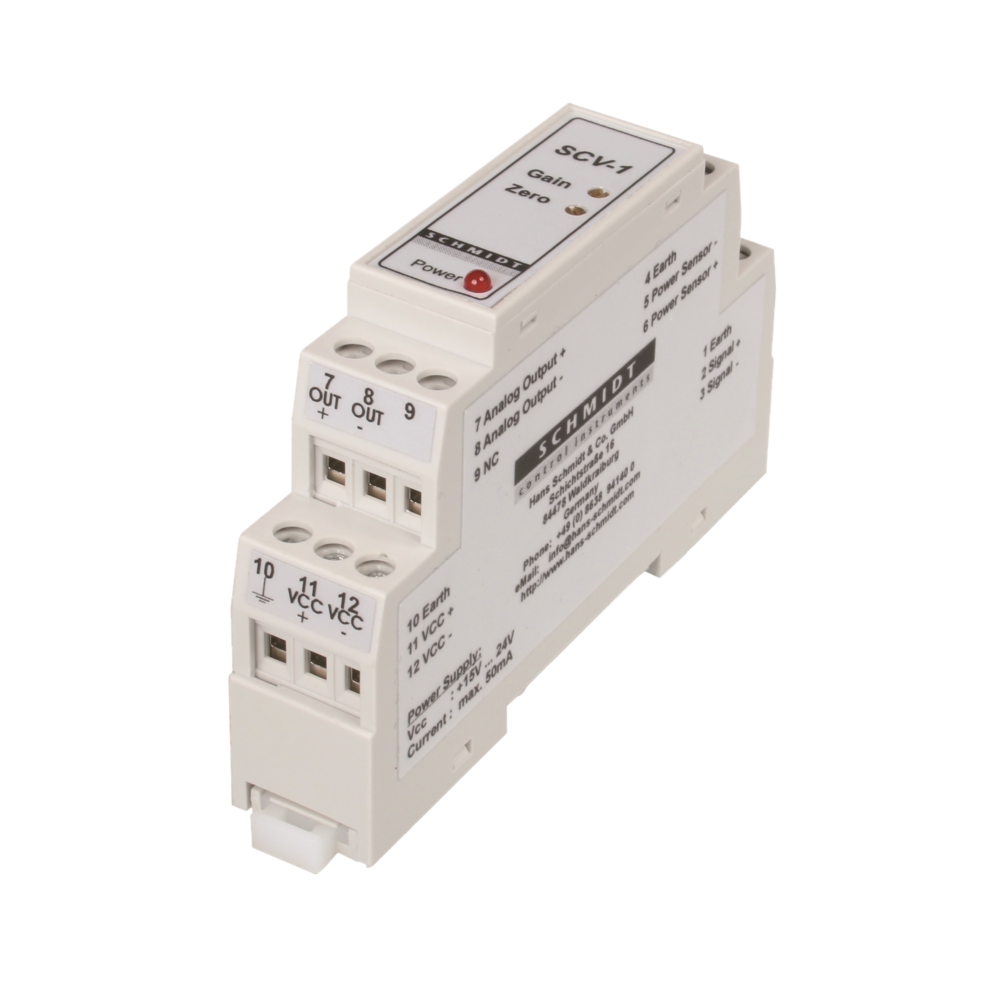

SCV-1
Amplifier

Strain gauge amplifier for sensors without integrated amplifier

Convenient for all sensors of TS, MZ and SF series

For fixing at a mounting rail DIN EN 60715

Special Features

  • Amplifier SCV-1 for connecting one sensor with mV/V output
  • DIN EN 60715 top hat rail box for snap in installation for mono rail track 17.5 mm
  • Various output signals are available:
    – analog 0 – 1 V (standard)
    – analog: 0 – 10 V DC (optional)
    – current: 4 – 20 mA (optional)
  • Easy calibration to customized material by the operator – zero and gain calibration is required for the connected sensor

Standard Features

  • Required power supply +15…24 V DC (regulated)
  • CE certified with sensor connected

 Available Models

Modle Connectable Sensors Output signal
SCV-1 Sensors without amplifier (mV/V) Standard: 0 – 1 V
Optional: 0 – 10 V DC, 4 – 20 mA

SPECIFICATIONS

Output signal: Analog: 0 – 1 V DC /R (Last) ≥ 5kΩ
Analog 0 – 10 V DC (option)
4 – 20 mA instead of 0 – 10 V DC
Input signal: mV/V
Exit hub: Terminal strip
Power supply: 15 – 24 V DC, 50 mA
Temperature range: 10 – 45° C
Air humidity: 85 % RH, max.
Housing: Plastics
Dimensions: 90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box
Weight, net (gross): Approx. 53 g

Specifications subject to change without notice!

OUTPUT SIGNAL

Standard

Output signal:
analog: 0 – 1 V DC









 Code A2

Output signal:
analog: 0 – 10 V DC









 Code A3

Output signal:
current: 4 – 20 mA

DELIVERY INCLUDES

Amplifier SCV-1 with transport packaging, operating instruction in German and English, Certificate of Compliance with the order 2.1 according EN 10204 free of charge
