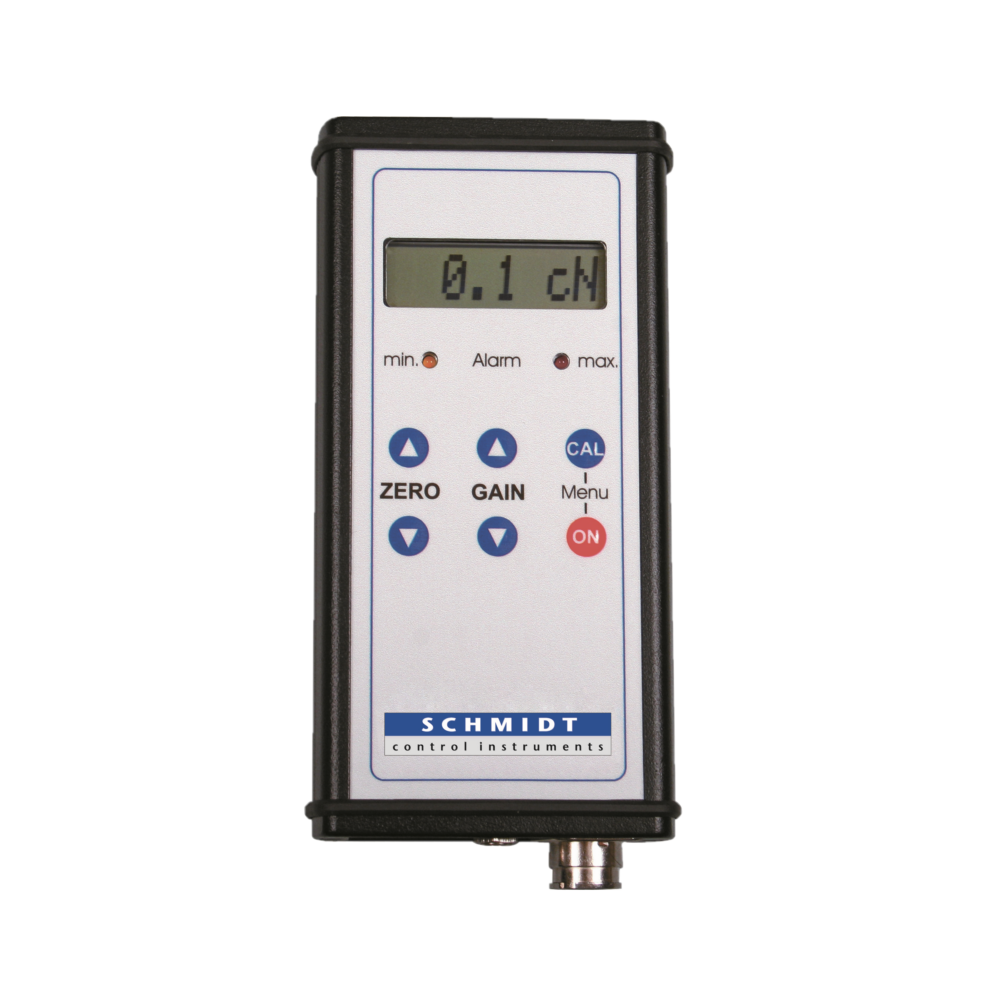

SCD-1
Display Unit

Display unit with LCD display for 1 sensor. All tension sensors with analog output signal 0 – 1 V can be connected.

Display for wall-mounting or as desktop device. Analog and digital output

Universal display unit for quick installation

Special Features

  • The display is suitable to connect sensors with analog output 0 – 1 V DC
  • Various output signals are available:
    – analog: 0 – 10 V DC
    – digital: RS-232
  • Display unit SCD-1 with a small, compact housing, possibility for wall mounting
  • User set limits (Min and Max alarms) with LED indication and open collector output for external control units
  • Easy calibration to customized material by the operator – zero and gain calibration is required for the connected sensor
  • Adjustable damping for easier reading if tension fluctuates
  • Easy operation using keys: menu for configurating the device (alarm limits, damping, engineering units, tension range)
  • Adjustable damping for output signal and display for easier reading if tension fluctuates

Standard Features

  • The instrument provides the required power (+15 V DC) for the connected sensor
  • Power supply by separate AC adapter
  • Display unit with Dotmatrix LCD display, 12 mm high with backlight
  • CE certified with sensor connected

 Available Models

Model Sensors suitable for connection Ouput Signal
SCD-1 Sensors with amplifier (0 – 1 V) 0 – 10 V DC, RS-232, Open Collector

SPECIFICATIONS

Digital display: Dotmatrix LCD, 12 mm high with backlight
Engineering  units: cN, daN, g or kg adjustable
Tension range: Adjustable
Damping (fg): 16 steps adjustable
Output signal: Analog: 0 – 10 V DC R (Last) ≥ 5 kOhm
Digital: RS-232 (19200, 8, N, 1), 80 values/s
Setpoints: Programmable MIN/MAX limits with LED-diode
Output signal setpoints: Open collector max. 30 V DC, 20 mA
Input signal: 0 – 1 V DC
Exit hub: 2 x Mini-DIN (PS2)
Voltage output for sensor: Yes
Power supply: 15 … 24 V DC/AC 100 mA
AC adapter 100 – 240 V AC, 50 – 60 Hz with 3 adapters (EU/USA/UK)
Temperature range: 10 – 45° C
Air humidity: 85 % RH, max.
Housing: Aluminium
Dimensions: 182 x 85 x 34 mm (LxWxH)
Weight, net (gross): Approx. 300 g (1000 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

SW-TI3 – Software Tension Inspect 3

Software for displaying and saving readings on a PC (Win 7 and higher; 32 bit and 64 bit).
Features:
– Real-time reading
– The readings are also shown in a X-Y- diagram (time/date-tension)
– For data analysing the buffered diagram can be zoomed and scaled
– Recording of the buffered readings as CSV-file (on user request)
– Download of values to Excel
Order number: SW-TI3

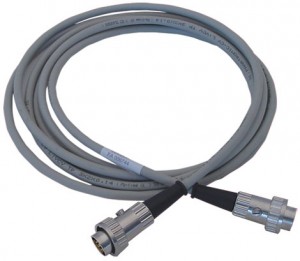

 EK0603, EK0605 and EK0610 – Connecting Cable for TS sensor

Cable with 2 diode plugs . For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m

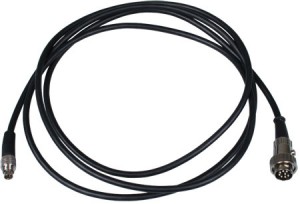

 EK0624 – Connecting Cable for FS sensor

Cable with M9 Sub-miniatur connector and diode plug. For connecting sensors of FS series to the display unit SCD-1, length 2 m.
Order number: EK0624

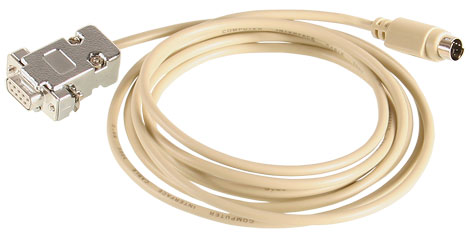

 EK0647 – RS-232 Connecting Cable

Cable for the RS-232 interface to connect the display unit to a PC, length 2.5 m.
Order number: EK0647











 EBG510 – USB Adapter

Adapter from RS-232 to USB.
Order number: EBG510









 EK0648 – Connecting Cable for analog output and open collector

Cable for the analog output and MIN – MAX interface (Open Collector), length 2.5 m
Cable for the analog output and MIN – MAX interface (Open Collector), length 2.5 m
Order number: EK0648

OUTPUT SIGNAL

Standard

Output signal:
analog: 0 – 10 V DC
digital: RS-232
open collector
80 readings can be transferred per second. (internal sampling rate max. 19200 times/s)

DELIVERY INCLUDES

Display unit SCD-1 with transport packaging, 1 AC adapter, operating instruction in German and English, Certificate of Compliance with the order 2.1 according to EN 10204 free of charge
