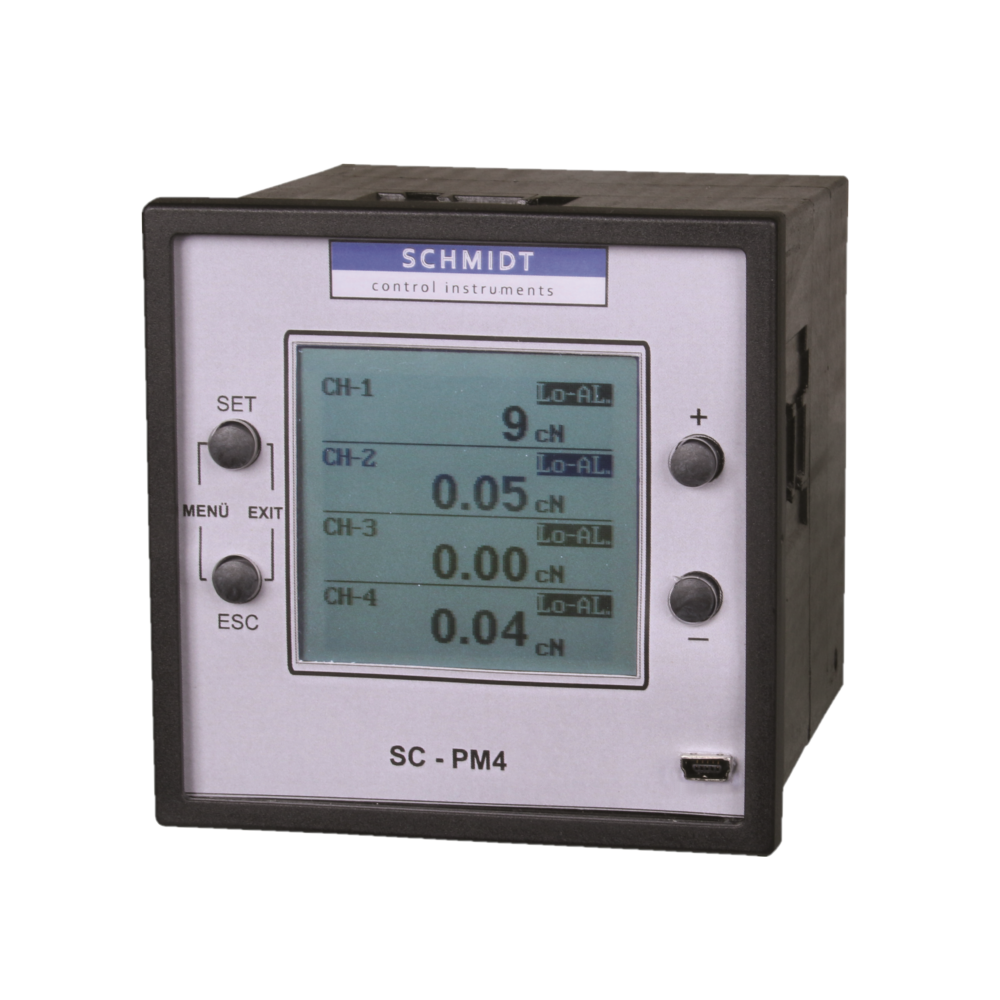

SC-PM4 and SC-PMD4
Display Unit

Panel mount digital display for max. 4 tension sensors. Outputs: USB, RS-422 and analog .

4 different calibrations for customer supplied material can be saved for each channel

Using the USB or RS-422 output all tension readings can be sent to PC for data analysing and storage

Special Features

  • The display unit SC-PM4 is suitable to connect max. 4 sensors (different ranges are possible) with analog output 0 – 1 V DC, the display unit SC-PMD4 is convenient for max. 4 sensors (different ranges are possible) without integrated amplifier (output mV/V)
  • Backlight, graphic LCD display with 2 different display modes:
    – Readings with alarm control
    – Bar chart, reading and alarm control
  • Various output signals are available:
    – digital (standard): USB (front side), RS-422 (rear side)
    – analog (optional): 0 – 10 V DC (rear side)
  • Adjustable damping for easier reading, if tension fluctuates
  • User set limits (MIN and MAX alarms) and open collector output for external control units
  • Each channel of display unit SC-PM4 can be scaled to engineering units as grams, cN, daN, N, g, kg, lb and oz depending to the used sensor
  • Easy calibration to customized material by the operator – zero and gain calibration is required for the connected sensor
  • Possibility to store 4 different materials curves for each channel
  • Easy operation using keys: menu for configurating the device (alarm limits, damping, units, tension range, language, material curve)
  • The set-up menu can be password protected

Standard Features

  • Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
  • Required power supply 30 V DC
  • The instrument provides the required power for the connected sensor
  • CE certified with sensor connected

 Available Models

Model Connectable Sensors Output Signal
SC-PM4 Sensors with amplifier (0 – 1 V) USB, RS-422, open collector
SC-PMD4 Sensors without amplifier (mV/V) USB, RS-422, open collector

SPECIFICATIONS

Digital display: Graphic LCD display with backlight
Engineering  units: cN, daN, g, kg, lb or oz selectable
Adjustment: 4 material curves for each channel can be stored
Selectable Damping: 9 adjustable settings
Signal processing: Digital
Output signal: Digital (standard): USB and RS-422 (57600, 8, N, 1)
Analog (option): 0 – 10 V DC /RLast ≥ 5kΩ
Input signal: 0 – 1 V DC, option mV/V
Alarm limits: Programmable MIN.- MAX limits per sensor
Output signal of the alarm limits: Open collector per Sensor (common signal for MIN. and MAX.), max. 30 V DC, 10 mA
Exit hub: Terminal strip
Power supply for sensor: Yes
Power supply: 30 V DC, 100 mA
Temperature range: 10 – 45° C
Air humidity: 85 % RH, max.
Housing: Plastics
Dimensions: 110 x 90 x 90 mm (LxWxH), mounting cut out 91.5 x 91.5 mm
Weight, net (gross): Approx. 300 g (700 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

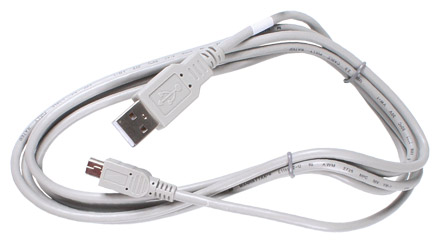

EK0662 – USB Connecting Cable

Cable for the USB output to connect the tension meter to a PC.
Cable length 2 m
Order number: EK0662













OPTIONAL ACCESSORIES

SW-TI3-4 – Software Tension Inspect 3

Software for displaying and saving readings on a PC (Win 7 and higher; 32 bit and 64 bit).
Only for display units with digital output signal.
Features:
– Real-time reading
– The readings are also shown in a X-Y- diagram (time/date-tension)
– For data analysing the buffered diagram can be zoomed and scaled
– Recording of the buffered readings as CSV-file (on user request)
– Download of values to Excel

Max. 4 Sensors can be monitored
Order number: SW-TI3-4

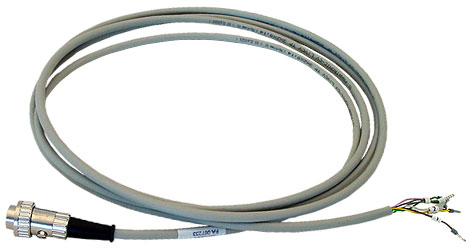

 EK0612, EK0614 and EK-0615 – Connecting Cable for TS Sensors

Cable with 1 Diode plug and open ends for analog output and current signal.
For connecting sensors of TS series to the display unit SC-PM.
Order number: EK0612, Length 3 m
Order number: EK0614, Length 5 m
Order number: EK0615, Length 10 m

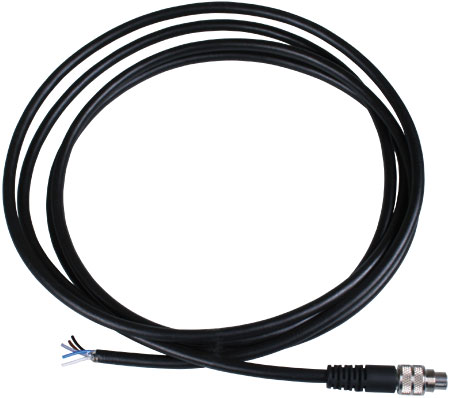

 EK0620 and EK0621 – Connecting Cable for FS Sensor

Cable with 1 SUB M9 sub-minimatur plug and open ends cable for the analog output.
For connecting sensors of FS series to the display unit SC-PM.
Order number: EK0620, Length 2 m
Order number: EK0621, Length 5 m

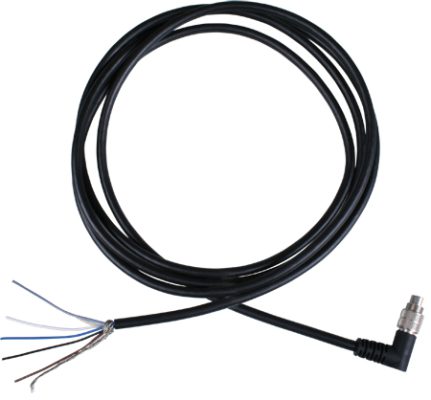

EK0622 and EK0623 – Connecting Cable with right angle Plug for FS Sensors

Cable with 1 SUB M9 sub-minimatur right angle plug and open ends cable for the analog output.
For connecting sensors of FS series to the display unit SC-PM.
Order number: EK0622, Length 2 m
Order number: EK0623, Length 5 m

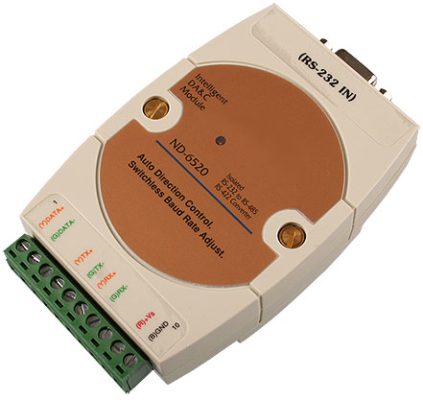

EBG800 – Serial Port Converter

Converter from RS-422 to RS-232 with terminal strip
Order number: EBG800

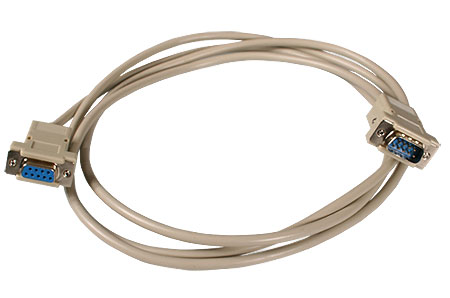

EK0643 – RS-232 Extension Cable

Cable to extend the RS-232 connecting cable EK0640 or for connecting the converter with a PC, length 2 m
Order number: EK0643

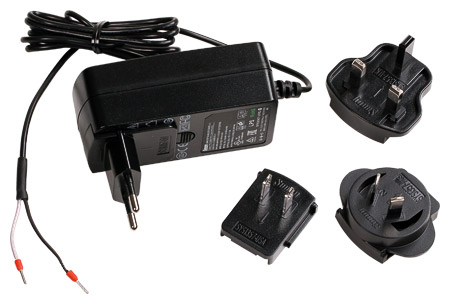

 K50204 – Mains Adapter

Recharger with 4 adapters (EU/USA/UK/AUS-NZL) for worldwide use,
100 – 240 V AC
Order number: K50204















Code WL – Wi-Fi data transmission

For sensors with Wi-Fi data transmission e. g. FS-200-WL. If a sensor and display unit is equipped with code WL the calibration (zero, gain) can be made only at sensor side. The output signal 0 – 1 V is not available from the sensor.

OUTPUT SIGNAL

Standard

Output signal:
digital: USB
4 x open collector
To connect the display to a PC.
Max. 200 readings can be transferred per second.







Standard

Output signal:
digital: RS-422
4 x open collector
Used to send data over a longer distance or multi user systems; Max. 200 readings can be transferred per second.







 Code A2

Output signal:
analog: 0 – 10 V DC

DELIVERY INCLUDES

Display unit SC-PM4 with transport packaging, USB connecting cable, operating instruction in German and English, Certificate of Compliance with the order 2.1 according EN 10204 free of charge
