MAZD and MBZD
Tension Sensor

4 Tension ranges available
from 0 – 100 cN up to 0 – 1000 cN
Online tension sensor for measuring small tensions of threads and fibres up to 1000 tex, as well as thin wires up to 0.3 mm Ø

Compact sensor with two different designs for continuous tension measuring in wire and textile industry

Tension meter can be fixed on a mounting rail DIN EN 60715

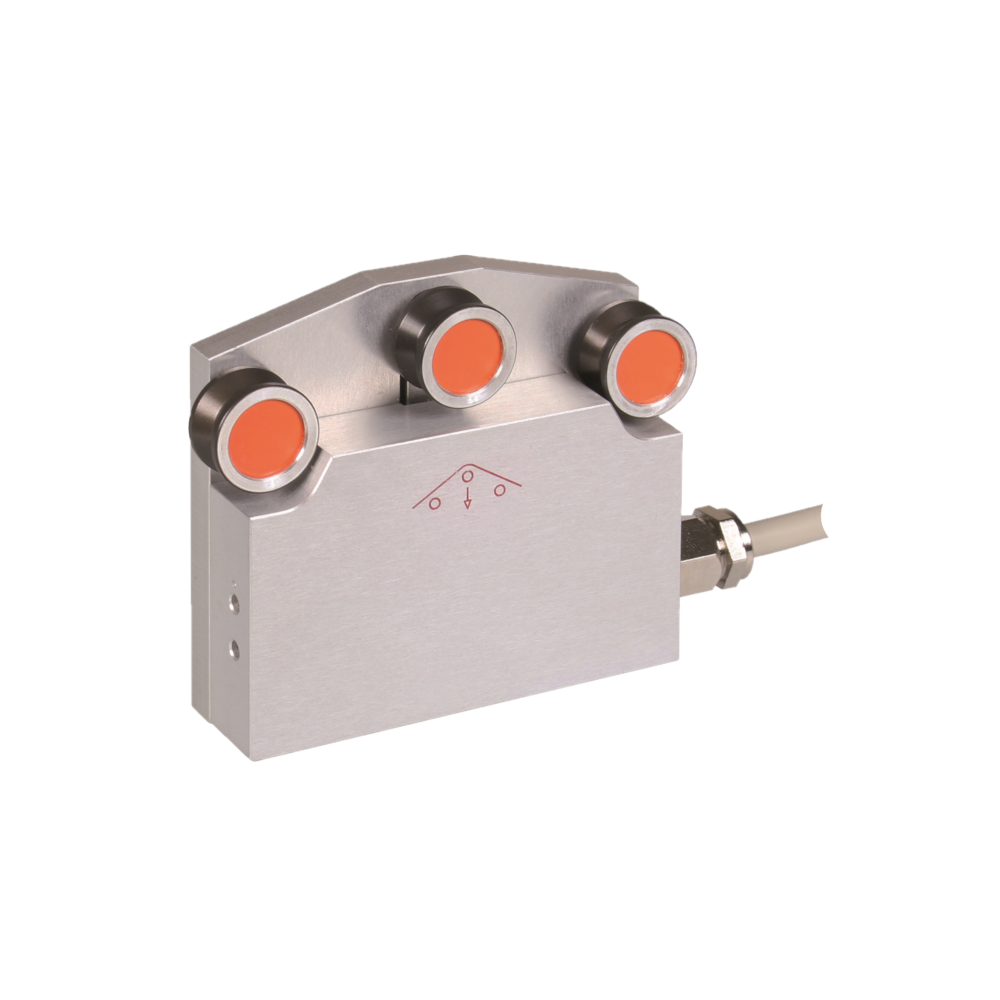

Special Features MAZD

  • Tension sensor MAZD with integrated measuring amplifier and high accuracy of 2 % FS
  • gently material path, it is guide over the rollers
  • Material incoming / outgoing angle 35° min
  • Various output signals
    – analog: 0 – 1 V DC (standard), 0 – 10 V DC (optional)
    – analog DMS: mV/V (optional)
  • Universal mounting possibility – easy to install, even afterwards, on existing machines:
    The sensor can be mounted using the three threads at the underside of the housing body. Alternative it can be fixed on a optional rail DIN EN 60715. A mounting adapter is necessary.
    Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – loadcell with high quality strain gauge bridge

Standard Features

  • Supplied with a 2 m shield cable with open Ends (other cable length on request)
  • Tension sensor with aluminium housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Special Features MBZD

  • Tension sensor MBZD with integrated measuring amplifier and high accuracy of 2 % FS
  • Typical material path – warping the 3 rollers
  • Various output signals
    – analog: 0 – 1 V DC (standard), 0 – 10 V DC (optional)
    – analog DMS: mV/V (optional)
  • Universal mounting possibility – easy to install, even afterwards, on existing machines:
    The sensor can be mounted using the three threads at the underside of the housing body. Alternative it can be fixed on a optional rail DIN EN 60715. A mounting adapter is necessary.
  • Easy calibration to customized material by operator – zero and gain calibration is required
  • Measuring principle – loadcell with high quality strain gauge bridge

SPECIFICATIONS

Calibration: SCHMIDT factory procedure
Accuracy: ±2 % full scale and ±1 digit
Other calibration material:
±3 % full scale or better
Overload protection: 100 % of tension range
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Signal processing: Analog
Temperarture drift: Better ±0.05 % Full Scale/ºC
Output Signal: Standard: 0 – 1 V DC (analog)
Option: 0 – 10 V DC (analog) or mV/V (DMS)
Output: Shielded cable (2 m) with open ends
Damping (fg): Standard (analog): 30 Hz (other values on request)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: +15…24 V DC, max. 21 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated
Housing material: Aluminium
Dimensions: 78 x 63 x 18 mm (LxWxH)
Weight, net (gross): With cable approx. 200 g (300 g)

Specifications subject to change without notice!

GUIDE ROLLERS

Order-Code Line Speed vmax. … m/min Roller Material
Standard
 2000 Hard-coated aluminium
Code K
 3500 Hard-coated aluminium
Code H
 5000 plasma-coated aluminium

OPTIONAL ACCESSORIES

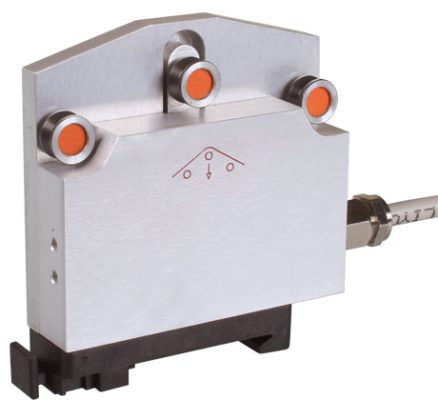

Code MA – Mounting Adapter

Adapter for mounting the sensor at a DIN EN 60715 DIN rail housing.
The adapter is mounted ex works at the sensor.

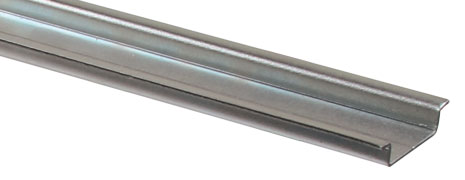

 K08100 – Mounting Rail

Mounting rail according DIN EN 60715. Length 491 mm.
Several sensors can be mounted easy and quick. It allows multiple sensor mounting adjacent to one another with minimal spacing.
Order number: K08100

OUTPUT SIGNAL

Standard

output signal: 0 – 1 V DC











 Code A2

output signal: 0 – 10 V DC











 Code A10

output signal: mV/V
for sensors without amplifier; incl. firmly connected cable with bare leads, 2m long

DELIVERY INCLUDES

Tension sensor with transport packaging, connecting cable, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charges
