Special Features

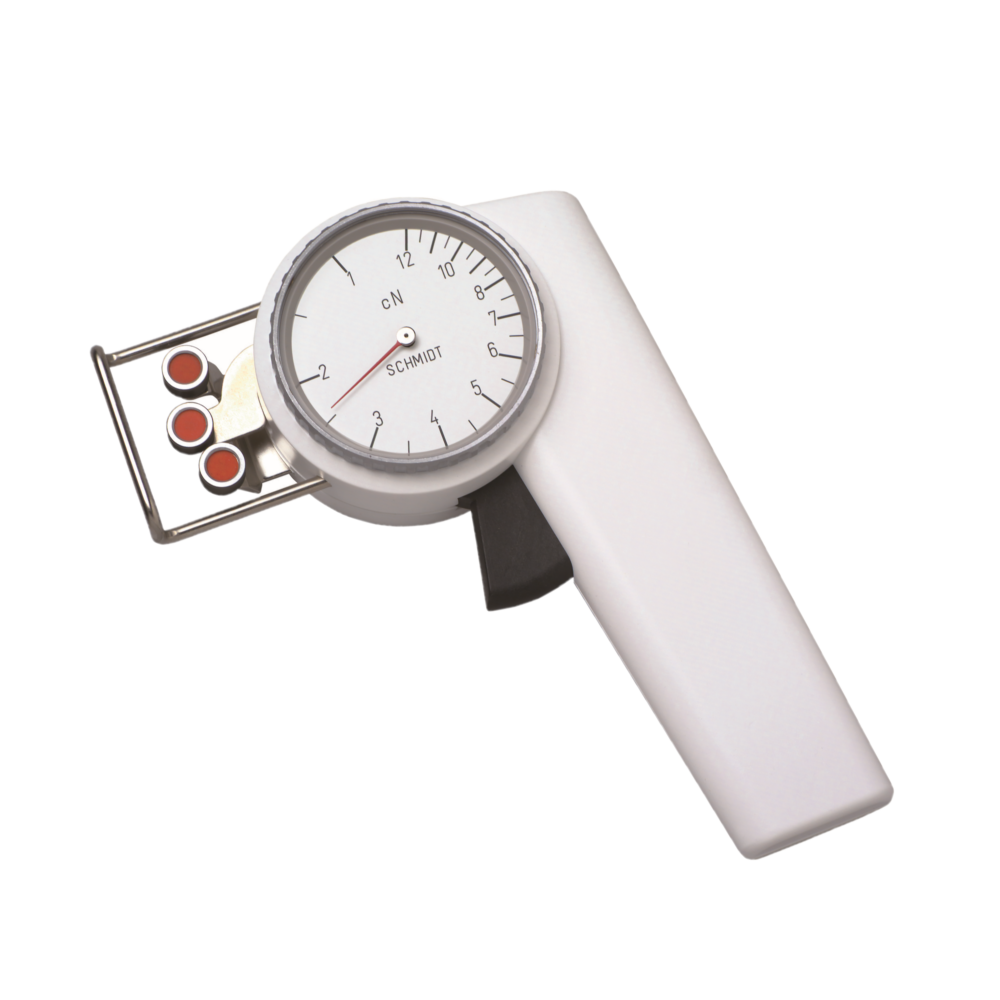

- The analog display of tension meter ZF2 shows changing and fluctuating tensions fast and enables an optimal process adjustment
- Filament guide and roller shifting mechanism ensure easy acquisition of the running material
- Large, easy to read scale (54 mm Ø)
- Light weight
Standard Features
- Everything in operator’s view:
– the guide rollers
– the measured material
– the readings - Ball-bearing mounted, V-grooved guide rollers
- Each instrument is individually calibrated for highest accuracy
- Housing made of high-strength plastic
- Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
- Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

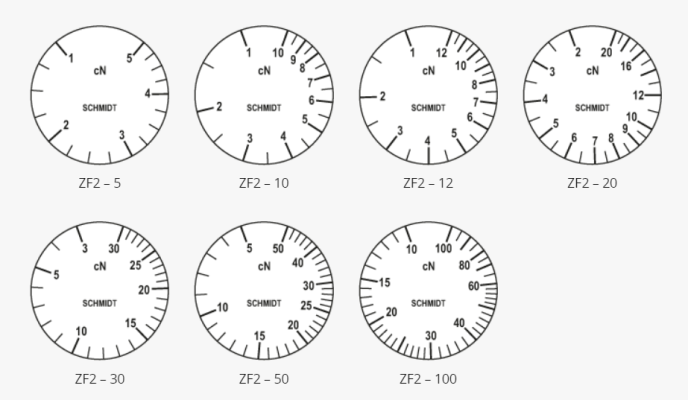

Available Models
| Model | Tension Range |
Measuring Head Width* |
SCHMIDT Calibration Material** |
| ZF2-5 | 1 – 5 cN | 43 mm | thread: 25 tex |
| ZF2-10 | 1 – 10 cN | 43 mm | thread: 25 tex |
| ZF2-12 | 1 – 12 cN | 43 mm | thread: 25 tex |
| ZF2-20 | 2 – 20 cN | 43 mm | thread: 25 tex |
| ZF2-30 | 3 – 30 cN | 43 mm | PA: 0.12 mm Ø |
| ZF2-50 | 5 – 50 cN | 43 mm | PA: 0.12 mm Ø |
| ZF2-100 | 10 – 100 cN | 43 mm | PA: 0.12 mm Ø |
Other tension ranges available on request.
Other units of measure available, such as g.
* Width of filament guide
** Suitable for 95 % of applications – PA = Polyamide Monofilament
Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.
