11 tension ranges available
from 0.5 – 3 cN up to 50 – 170 cN
Compact mechanical tension meter for low tensions of fibres and thread
Hand-held unit for applications in the textile industry for measuring thread tension

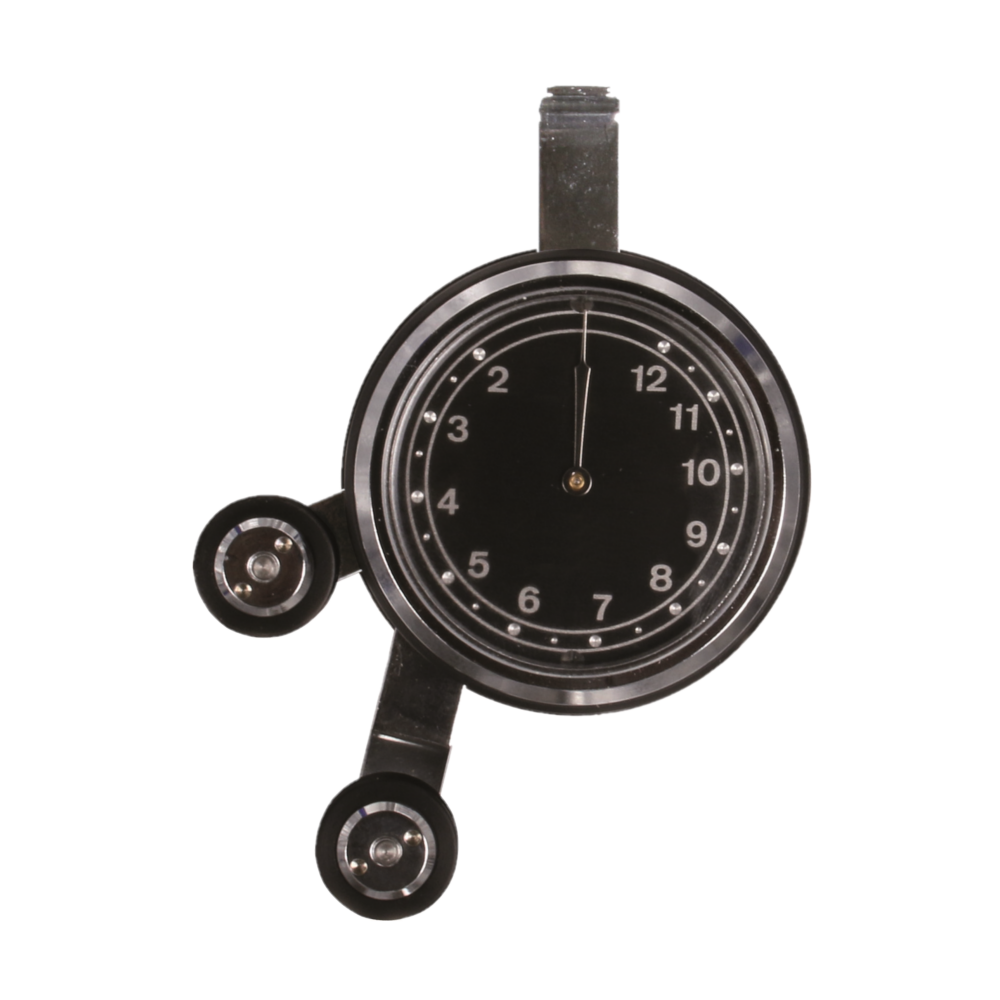

Small handy tension meter at pocket size – Model ZIVY
| Model | Measuring Range |
| TEN-3K | 0.5 – 3 cN |
| TEN-5K | 1 – 5 cN |
| TEN-10K | 2 – 10 cN |
| TEN-12K | 2 – 12 cN |
| TEN-20K | 5 – 20 cN |
| TEN-30K | 5 – 30 cN |
| TEN-50K | 10 – 50 cN |
| TEN-60K | 10 – 60 cN |
| TEN-70K | 10 – 70 cN |
| TEN-120K | 20 – 120 cN |
| TEN-170K | 50 – 170 cN |
| Accuracy: | ±7 % Full scale up to 10 cN ±5 % Full scale up to 30 cN ±2 % Full scale for higher 30 cN |
| Scale diameter: | 40 mm |
| Temperature range: | 10 – 50 °C |
| Air humidity: | 85 % RH, max. |
| Housing: | Aluminium |
| Dimensions: | See drawing |
| Weight net (gross): | Approx. 150 g (260 g) |
Specifications subject to change without notice!
The tension meter is for one-hand operation.

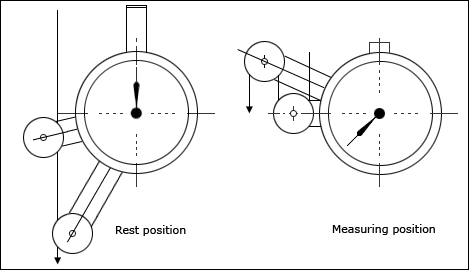

For feed in, place the material between the two guide rollers. Push and hold the button at the instrument. The outer roll will be pivoted to the top and the device is ready to work. The measured tension will be shown at the precision gear.
Tension meter TEN with carrying case, operating instruction in German or English
