FT

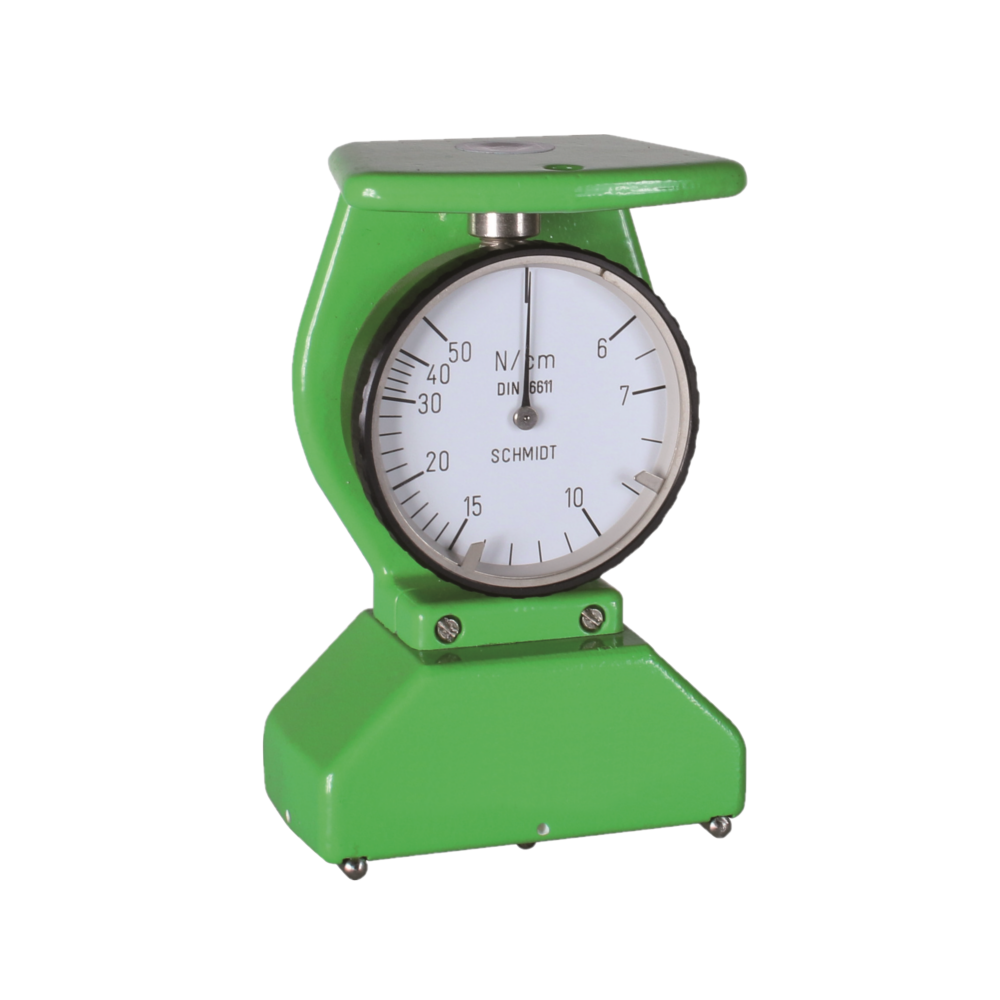

Screen Printing Tension Meter

1 Tension range available 6 – 50 N/cm

Handy screen printing tension meter for synthetic and steel meshes

The ideal print quality in screen printing is depending on accurate strained screens. This device is for fast and accurate identifying screens, that require reworks.

To measure fast and accurately the tension on a mesh in the screen printing industry according to DIN 16611

Special Features

  • Screen printing tension meter FT used for synthetic and steel meshes
  • Selection of warpwise or weftwise measuring direction is possible
  • 2 adjustable markers to set limits (MIN, MAX) for accentuation of operating range respectively tolerance range
  • Protected precision dial gauge
  • Adjusting and calibration according DIN EN 16611
  • Optionally available: Calibration certificate with calibration report

Standard Features

  • Easy to use
  • Screen printing tension meter with large, easy to read scale
  • Certificate of Compliance with the order 2.1 according EN 10204 is included

 General

Synthetic mesh always loses tension in time. Correct mesh tension is one of the most important conditions for accurate, reproducible and high quality screen printing. It influences snap force, precise registration and resolution in printing. For multi-coloured jobs consistent control is necessary.

 Available Model

Model Tension Range
FT 6 – 50 N/cm

SPECIFICATIONS

Depth of indentation: Max. 1 mm
Tension range: 6 – 50 N/cm
Standard: According DIN EN 16611
Measuring force: 2.1 – 3.0 N
Scale diameter: 54 mm
Dimensions: See dimensions
Weight, net (gross): Approx. 480 g (740 g)

Specifications subject to change without notice!

OPERATION

Place the instrument in warpwise or weftwise position on the mesh. The weight of the instrument creates a defined pressure to the mesh. The tension is indicated on the analog display immediately. The readings are independent to size and material of the mesh.

DELIVERY INCLUDES

Screen printing tension meter FT with carrying case, Certificate of Compliance with the order 2.1 according EN 10204 free of charge, operating instruction in German or English (as requested)
