DXR
Tension Meter

6 Tension ranges available
from 200 – 2000 cN up to 5 – 50 daN

Special purpose tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc. roller width 50 and 100 mm

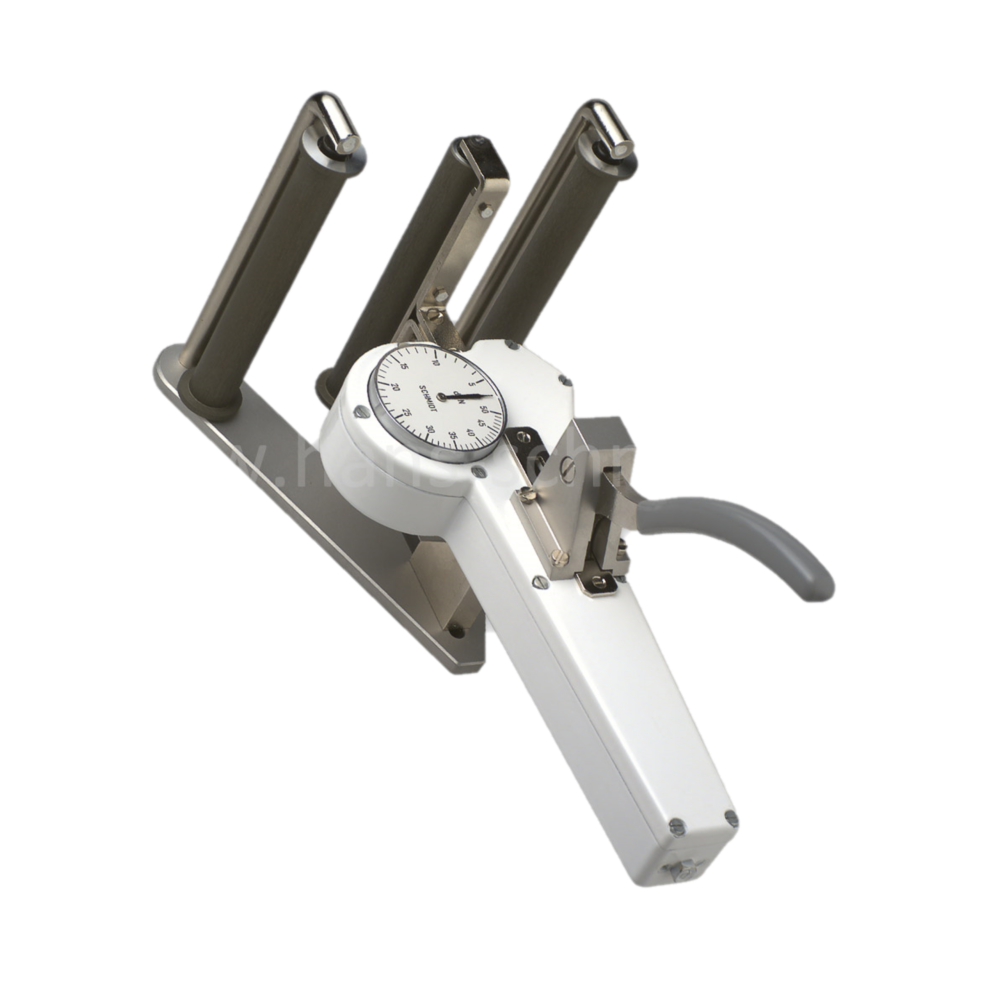

Mechanical hand-held instrument with cylindrical tape rollers supported and mounted on both sides

The tension meter is equipped with both-sided flanged outside guide rollers for better filament guide

Special Features

  • The analog display of tension meter DXR shows changing and fluctuating tensions fast and enables an optimal process adjustment
  • Tape rollers with contact surface 50 mm or 100 mm are available
  • Dual-flanged outer guide rollers with various widths for better filament guide (single-flanged rollers optional, recommendable if the material being measured is wider than the tape roller)
  • Roller shifting mechanism ensure easy acquisition of the running material

Standard Features

  • Everything in operator’s view:
    – the guide rollers
    – the measured material
    – the readings
  • Tape rollers, ball-bearing mounted
  • Each instrument is individually calibrated for highest accuracy
  • 41 mm Ø scale
  • Tension meter with rugged aluminium housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Note

Tension meter DXR does not include a filament guide and material thickness compensator

When selecting the instrument for your specific application, please keep in mind that:

  • Rollers of different widths are not interchangeable by the user.
  • The roller width should correspond with the width of the material to be measured.Otherwise incorrect measuring results may occur and the instrument may be damaged.

SCHMIDT has the solution to any tension measuring problem! Please contact us to discuss your application requirements!

To assist you in selecting the right tension meter for your specific application, please furnish:

  • Kind and dimensions of the material to be measured
  • Expected tension range
  • Short description of the application
  • Material sample of about 5 m

Available Models

Model Measuring Range*
 Measuring Head Width**
 Roller Width

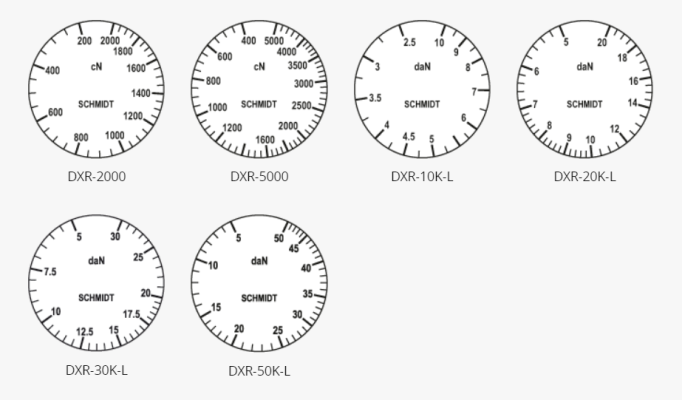

DXR-2000 200 – 2000 cN 125 mm 50, 100 mm
DXR-5000 400 – 5000 cN 125 mm 50, 100 mm
DXR-10K-L 2.5 – 10 daN 125 mm 50, 100 mm
DXR-20K-L 5 – 20 daN 200 mm 50, 100 mm
DXR-30K-L 5 – 30 daN 200 mm 50, 100 mm
DXR-50K-L 5 – 50 daN 200 mm 50, 100 mm

Other tension ranges, measuring head widths and material path calibrations available on request.
Other units of measure available – g or kg.
* SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers

Important for your order:
Please specify model and roller width! Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1% full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 980 g (2200 g)

Specifications subject to change without notice!

SCALES

SCHMIDT scales are manufactured according to the most stringent quality requirements. Printed scales are not used. Instead, each scale is individually marked for the instrument involved. This ensures highest quality. Our special procedure makes it possible to provide tension meter DXR

  • calibrated to custom supplied material
  • fine tuned to a specific tension range
  • other units of measure such as g or kg

ATTACHMENT

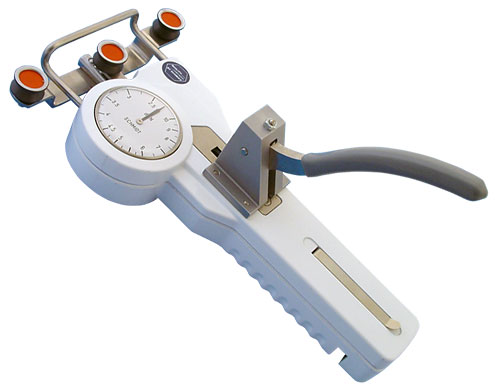

Code L – Special Lever

Standard for tension meter DXR-10K-L and higher ranges.
Facilitates acquisition of the running material when measuring high tensions. Reduces force necessary to extend outer rollers.

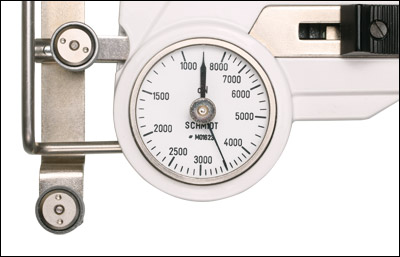

Code M – Memory Pointer

For tension range 20 – 120 cN and higher
Retains the highest measured value (PEAK). Available for mechanical tension meters.

DELIVERY INCLUDES

Tension meter DXR with carrying case, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
