DXK
Tension Meter

3 Tension ranges available
from 20 – 300 cN up to 200 – 2000 cN

Mechanical tension meter for measuring warp threads on stagnant weaving machines

Hand-held instrument for determinating the tension of a single warp thread or several threads

Tension meter with large reference frame for easy placing on the yarn

Special Features

  • Tension meter DXK with analog display
  • Large reference frame (15 x 17 cm) will be placed on a sheet of warp yarns. Thereby save and accurate measurements are possible
  • Width of the sensing pin 10 mm
  • Determinating the statical tensions of warp threads, not dynamic
  • Roller shifting mechanism ensure easy acquisition of the material

Standard Features

  • Everything in operator’s view:
    – the guide rollers
    – the measured material
    – the readings
  • Each instrument is individually calibrated for highest accuracy
  • 41 mm Ø scale
  • Tension meter with rugged aluminium housing
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Finger Support

Roller shifting mechanism ensure easy acquisition of the material



Note

Tension meter DXK does not include a material thickness compensatorl

Operation:

We recommend always measuring the same number of ends, such as 5 or 10 ends (repeat of pattern) or only a single end at a time. During measurement make sure that the ends are not pulled or pressed out of their alignment.

Available Models

Model
 Measuring Range
 SCHMIDT Calibration Material*

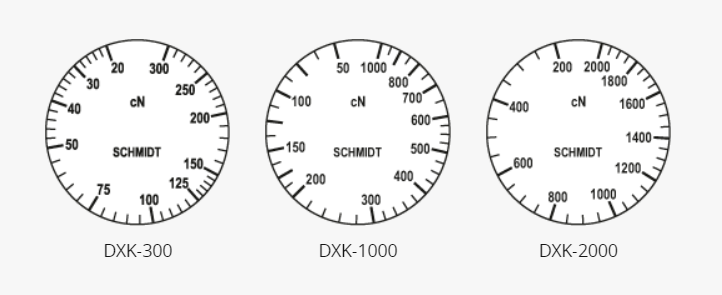

DXK-300 20 – 300 cN fabric tape
DXK-1000 100 – 1000 cN fabric tape
DXK-2000 200 – 2000 cN fabric tape

Other tension ranges available on request.
Other units of measure available, such as g
* Suitable for 95 % of applications

SPECIFICATIONS

Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross) Approx. 470 g (1000 g)

Specifications subject to change without notice!

SCALES

SCHMIDT scales are manufactured according to the most stringent quality requirements. Printed scales are not used. Instead, each scale is individually marked for the instrument involved. This ensures highest quality. Our special procedure makes it possible to provide tension meter DXK

  • calibrated to custom supplied material
  • fine tuned to a specific tension range
  • other units of measure such as g

ATTACHMENT

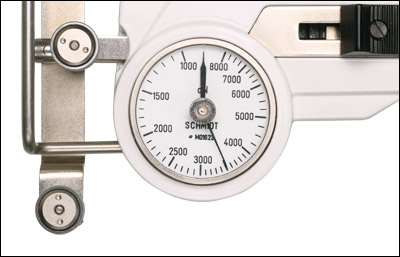

Code M – Memory Pointer

Retains the highest measured value (PEAK). Available for mechanical tension meters.

DELIVERY INCLUDES

Tension meter DXK with carrying case, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
