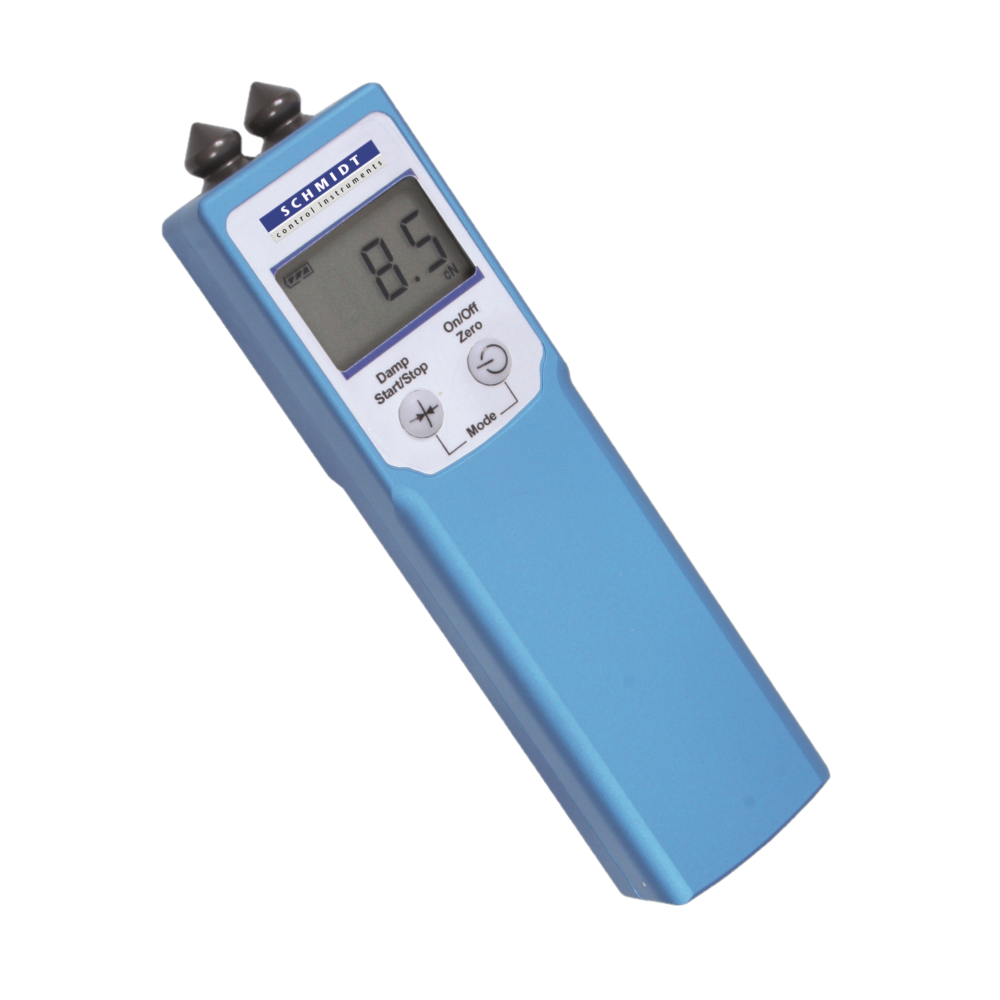

PT-100
Tension Meter

Special Features

• Tension meter PT-100 with easy Slide-In material threading by cone shaped, all-bearing mounted guide roller and turning the instrument
• Automatic »zero setting« to zero the instrument in any measuring position
• Adjustable electronic damping to provide steady tension readings
• When the series of measurement ends, the average value can be displayed
• Tension meter PT-100 for right and left hand use
• User-set measuring units of cN or grams
• Measuring head width 24 mm (outer distance of guide rollers)

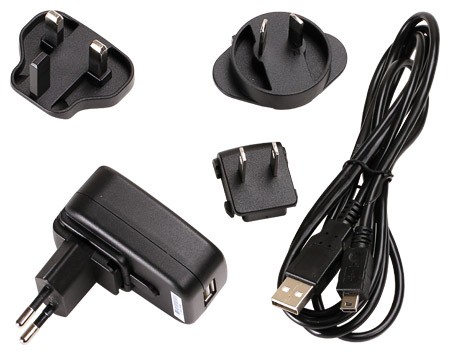

• Powered by rechargeable Lithium Polymer battery (40 h battery life with 3.5 h charge time) with a universal voltage AC-charger

Standard Features

• Tension meter with small, compact aluminium housing
• Easy one hand operation
• Tension meter with easy to read LCD display
• Each instrument is individually calibrated for highest accuracy
• CE proofed, interference resistance about static charge
• Certificate of compliance with the order 2.1 according DIN EN 10204 is included
• Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report (tension only)

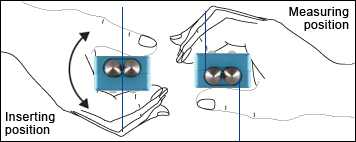

to insert the measuring material the instrument must be wrapped by 180 degrees









 Available Models

Model	Measuring Range Tension	Measuring Range Speed	Measuring Range Length	SCHMIDT Calibration Material*
PT-100	0.5 – 100.0 cN	—	—	PA: 0.20 mm Ø
alternative
PT-100-L	0.5 – 100.0 cN	0 – 1999 m/min	0 – 1999 m/min	PA: 0.20 mm Ø

* Suitable for 95 % of applications – PA = Polyamide Monofilament
