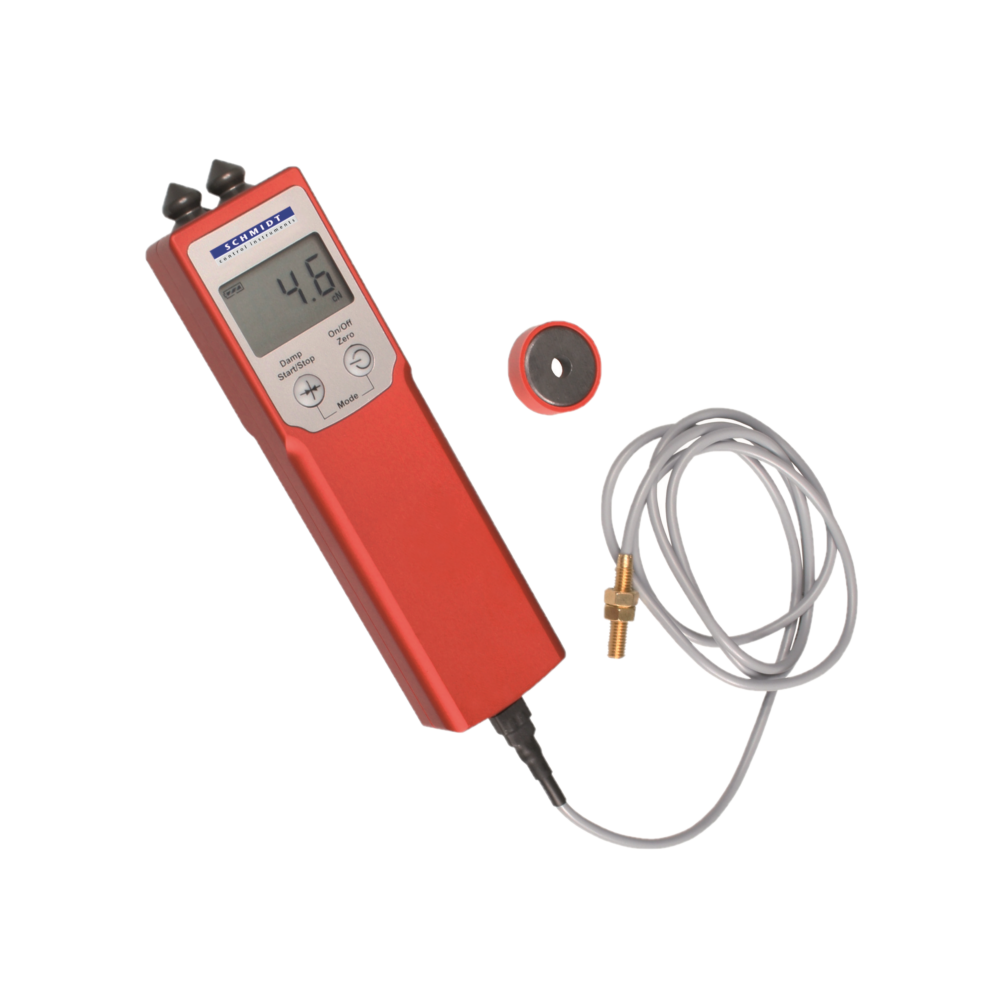

PT-100-L
Tension Meter

3 in 1
Tension: 0.5 – 100.0 cN
Speed: 1999 m/min
Length: 1999 m
For fibers up to 100 tex or 1000 denier

Pocket tension meter for low tension measurements of fibres, yarns etc. used for circular knitting machine

Hand-held instrument , battery operated with LCD display

Handy, 2 roller tension meter with 3 operating modes (tension, speed and length)

Special Features

  • »Multifunctional instrument:«
    – Tension Meter
    – Yarn Speed Meter
    – Yarn Length Meter to determine the yarn consumption of a single feeder for one or more machine cycles (max. 10 revolutions) of a circular knitting machine
  • Tension meter PT-100-L with easy Slide-In material threading by cone shaped, ball-bearing mounted guide rollers and turning the instrument
  • Length Measurement – 2 operating modes:
    -“Manual” (without external sensor):
    The instrument measures as long as the operator is pressing the button
    -“Auto” (with “Reed” magnet Sensor):
    Sensor and magnet are supplying a start/stop signal for a user-defined number of machine revolutions (1 – 10)
  • Automatic »zero setting« to zero the instrument in any measuring position
  • Adjustable electronic damping to provide steady tension readings
  • When the series of measurement ends, the average value can be displayed
  • Tension meter PT-100-L for right and left hand use
  • User-set measuring units of cN or grams
  • Measuring head width 24 mm (outer distance of guide rollers)
  • Powered by rechargeable lithium polymer battery (40 h battery life with 3.5 h charge time) with a universal voltage AC-charger

Standard Features

  • Tension meter with small, compact aluminium housing
  • Easy one hand operation
  • Tension meter with easy to read LCD display
  • Each instrument is individually calibrated for highest accuracy
  • CE proofed, interference resistance about static charge
  • Certificate of compliance with the order 2.1 according DIN EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report (tension only)

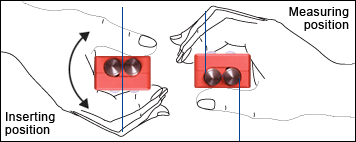

to insert the measuring material the instrument must be wrapped by 180 degrees

 Available Models

Model Measuring Range
Tension		 Measuring Range
Speed*		 Measuring Range
Length*		 SCHMIDT
Calibration Material**
PT-100-L 0.5 – 100.0 cN 0 – 1999 m/min 0 – 1999 m/min PA: 0.20 mm Ø
alternative
PT-100 0.5 – 100.0 cN — — PA: 0.20 mm Ø

 * Speed and length measurement is only possible with a thread tension higher than 10 cN.
** Suitable for 95 % of applications – PA = Polyamide Monofilament

SPECIFICATIONS

Calibration: According SCHMIDT factory procedure
Accuracy: ±1.5 % full scale ±1 digit (not length and speed measurement)
Resolution: Tension: 0.1 cN
Speed: 1 m/min
Length: 1 m
Overload protection: 200 % full scale
Measuring units: cN, g, m/min, in/min, m, in switchable
Measuring principle: Strain gauge bridge
Damping: Adjustable electronic damping, averaging
Display: LCD 3 ½ digits, 9 mm high
Display update rate: 2 times per second
Auto power off: After 3 minutes off non use
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: LiPo accumulator (approx. 40 h continuous use, charging time approx. 3.5 h),
USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)
Housing material: Aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 170 g (500 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

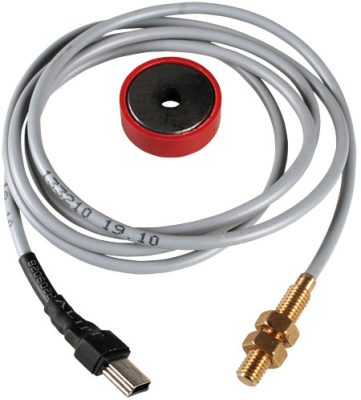

PT-S – Sensor and Magnet

Reed sensor with cable, mounting angle and magnet
Cable length: 3.50 m



















 K50202 – USB AC Adapter

USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC and USB cable for loading the accumulator

DELIVERY INCLUDES

Tension meter PT-100-L with carrying case, sensor, cable, extension cable, mounting angle, magnet, USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ), USB cable, operating instruction in German or English (as requested), certificate of compliance with the order 2.1 free of charge
