DTSF
Tension Meter

4 Tension ranges available
from 1 – 200 cN up to 20 – 2000 cN

Applications for fragile filaments with Ø up to max. 1.5 mm

Electronic tension meter for different industries

Tension meter with many functions as turnable display, and possibility of custom made calibrations

Special Features

  • Large, v-grooved guide rollers with 32 groove diameter, ball bearing mounted
  • Large bending radius assures gentle handling of the material being measured
  • Special guides on the bracket assembly permit easy material acquisition
  • Calibration with Polyamide Monofilament (PA)

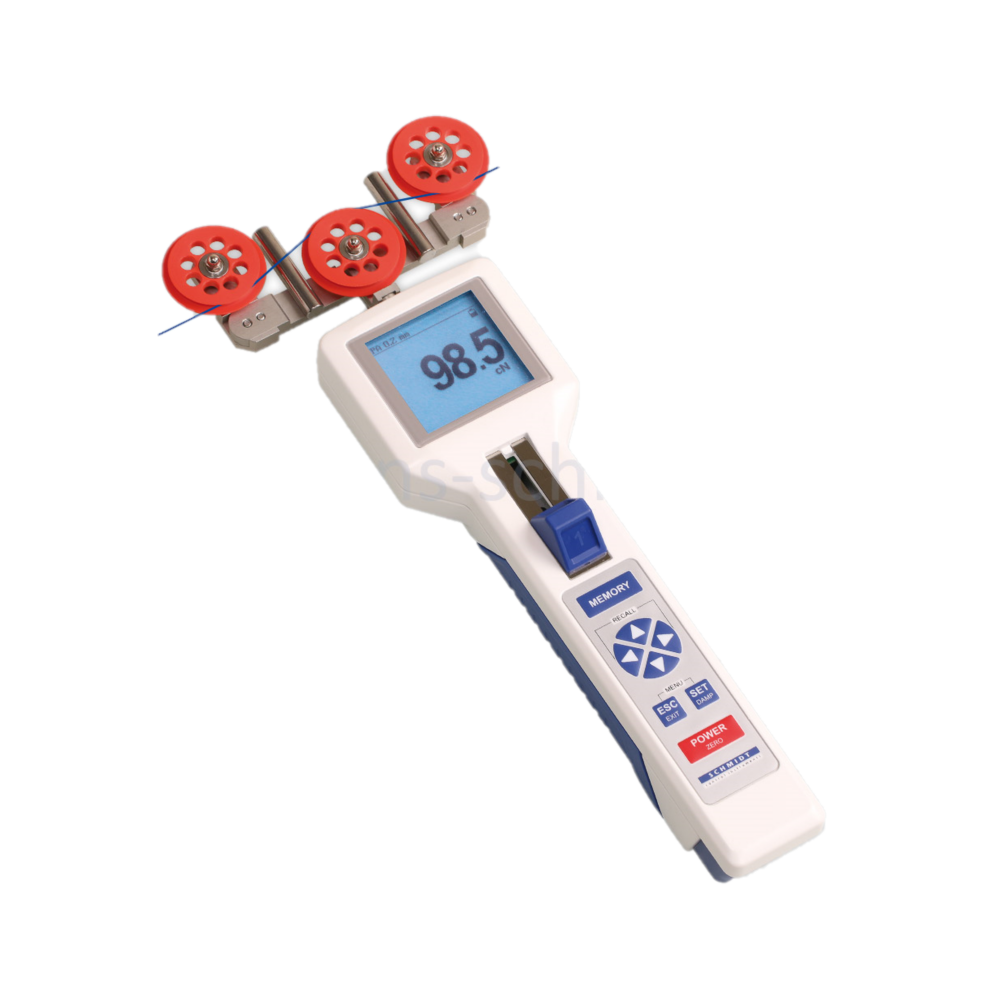

  • Tension meter DTSF with large, backlight LCD-display
  • 3 different display modes:
    – numeric
    – numeric with bargraph
    – numeric with graph (Time-Tension)
  • The display rotates in 90° steps for better reading
  • New, unique, force reduced material catching system
  • Automatic „Zero-Setting“ in each measuring position using a special sensor technique
  • 4 Material memory locations for customer made calibrations
  • Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
  • Programmable MIN- and MAX alarms: indication in the display, if reading is out of limits
  • High speed data sampling (internal 8 kHz) and recording of MIN-, MAX-, last reading, PEAKS, average and standard deviation
  • Selectable units of measurement: cN, daN, g, kg, N, lb
  • Menu set-up in English or German language
  • Flexible menu set-up to meet operators demand
  • Some functions can be password protected

Note: Tension meter DTXF offers additional features, like interface, statistical evaluation on PC and a large internal memory.

Standard Features

  • Everything in operator’s view:
    – the guide rollers
    – the measured material
    – the readings
  • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
  • Rubberized handle provides a secure hold in the operators‘ hand
  • Tension meter with rugged aluminium housing
  • LiPo accumulator (approx. 40 hours continuous operation) with AC adapter
  • CE certified, interference resistant against static electrifications
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

 Available Models

Model Measuring
Range
 Resolution Measuring
Head Width*		 SCHMIDT
Calibration Material PA**
DTSF-200 1 – 200.0 cN 0.1 cN 140 mm 0.12 mm Ø
DTSF-500 1 – 500.0 cN 0.1 cN 140 mm 0.20 mm Ø
DTSF-1000 10 – 1000 cN 1 cN 140 mm 0.30 mm Ø
DTSF-2000 20 – 1000 cN 1 cN 140 mm 0.50 mm Ø

* Outer distance between outside guide rollers
** Suitable for 95 % of applications

SPECIFICATIONS

Calibration: According SCHMIDT factory procedure
Accuracy: For PA from 5 % up to 100 % full scale:
± 0.5 % full scale and ± 1 digit
remaining tension range and other calibration materials:
±3 % full scale and ±1 digit
Memory for material curves: 1 for SCHMIDT calibration plus 4 for customized calibrations
Measuring units: Force (switchable): cN, daN, g, kg, N, lb
Thickness (switchable): mm, inch
Overrange: Approx. 10 % full scale, without accuracy guarantee
Overload protection: 100 % full scale
Measuring principle: Strain gauge bridge
Signal processing: Digital, 16 bit A/D converter
Measuring frequency: Max. 1 kHz (1000 measurings/sec), intern 8 kHz
Measuring roller deflection: Max. 0.2 mm
Display: Graph LCD
3 different displays: Numeric,
Numeric with graph (time-tension)
X-Y-diagram
Display update rate: Approx. 2 times per second
Memory: MIN, MAX, PEAK, AVG and LAST
Damping: Adjustable electronic damping (averaging)
Cal. Adjustment: ± 10 steps in 1 % increment
Thickness compensation: Max. 2.5 mm (not available for all models)
Auto power off: Approx. 3 minutes of non-use
Temperature coefficient: Gain: less than ± 0.01 % full scale /°C
Zero point: Less than ± 0.03 % full scale /°C
Temperature range: 10 – 45 °C
Air humidity: 85 % RH, max.
Power supply: LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h,
USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)
Housing material: Die-cast aluminium
Housing dimensions: See Dimensions
Weight, net (gross): Approx. 845 g (1520 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

K50202 – USB AC Adapter

USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC and USB cable for loading the accumulator

ATTACHMENT

Code MH – Online Mounting

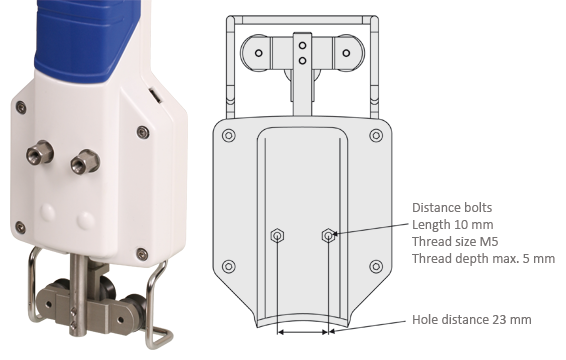

To mount the gauge for online use, the housing can be equipped with mounting threads. There are to bolts with M5 female thread on the rear side. This feature cannot be installed afterwords.

DELIVERY INCLUDES

Tension meter DTSF with carrying case, accumulator and USB AC adapter with country adapters (EU, US, UK), USB cable, Certificate of compliance with the order 2.1 according EN 10204 free of charge, operating instruction in German or English (as requested)
