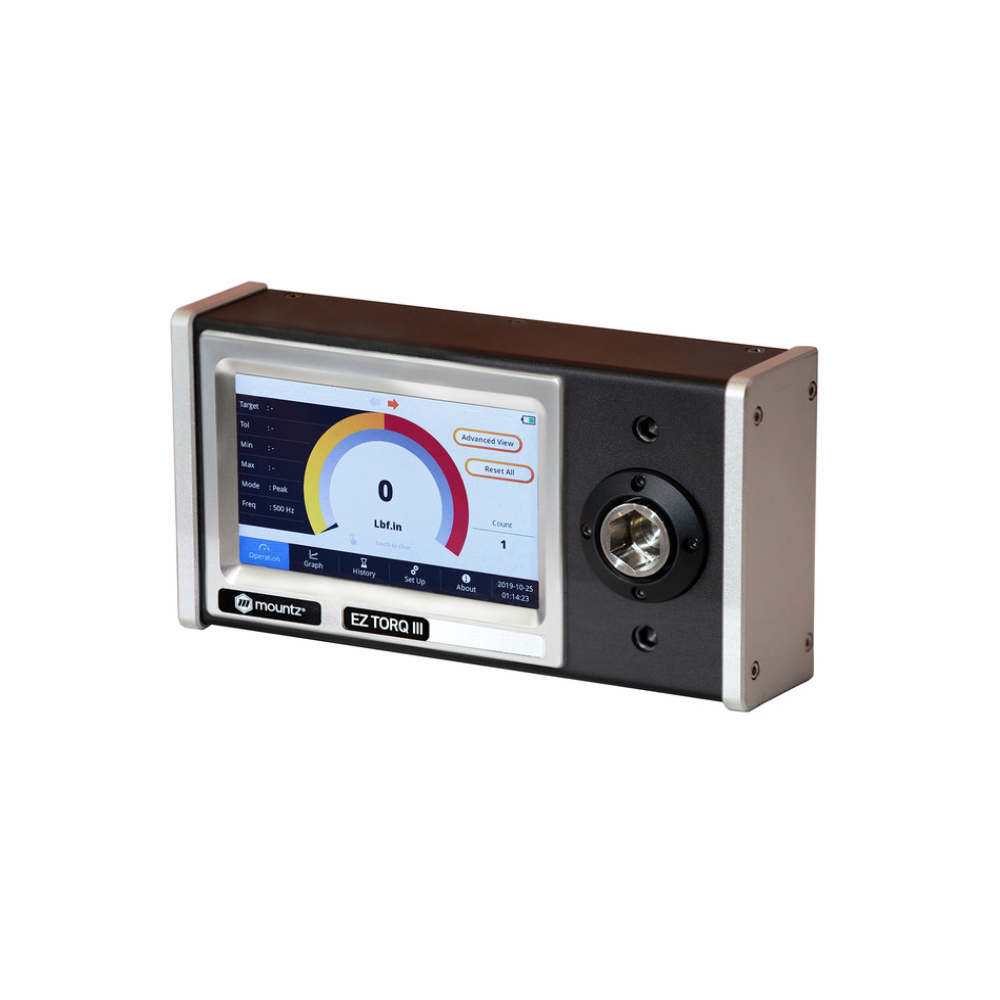

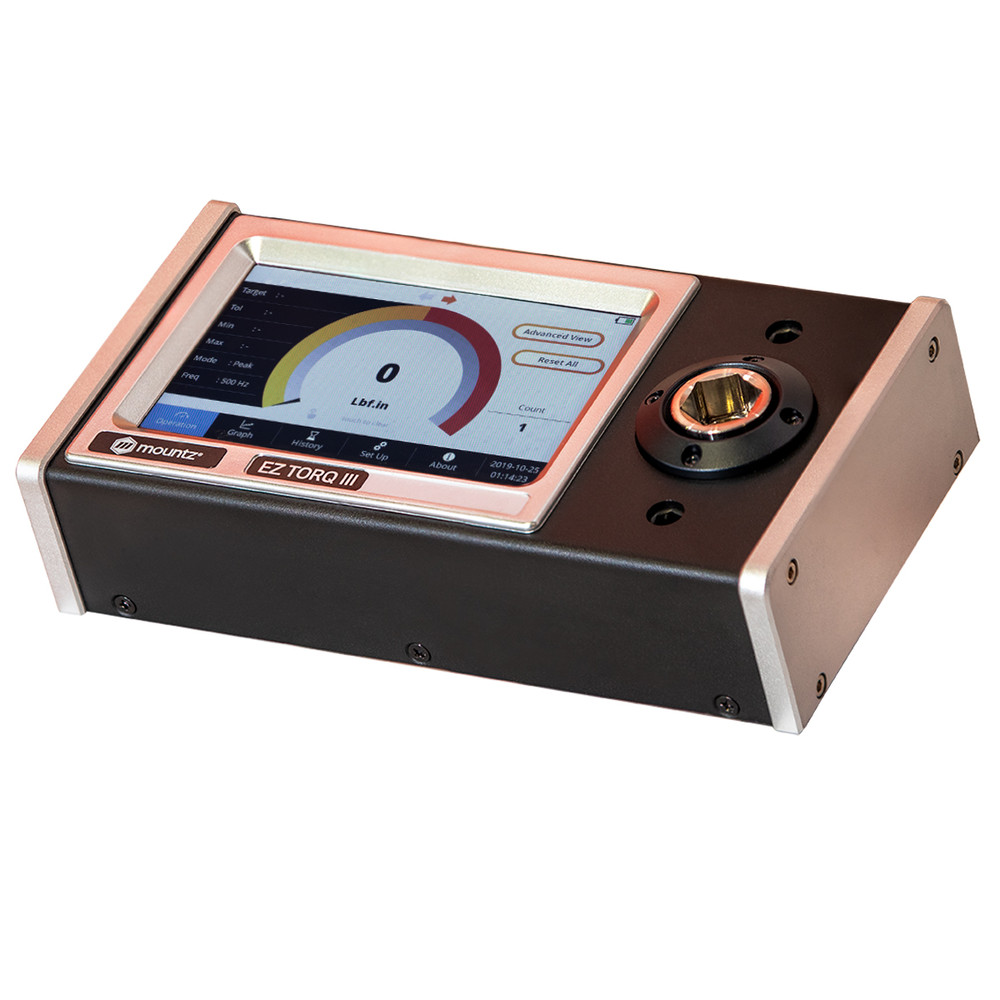

EZ-TorQ III 300i
TORQUE ANALYZERS

The EZ-TorQ III 300i torque tester makes torque control easier and more available across every aspect of the line from the calibration lab to the assembly station. Highly portable and user-friendly, this battery-powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smartphone like touch-screen interface breaks down barriers and ensures quick and easy torque tool validation and calibration. EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer features a built-in battery and is ideal for all small hand tools & non-impacting power tools.

SPECS

SPEC
Model: EZ-TorQ III 300i
Item #: 070814
Drive Size: 17mm F/Hex
American: 30 – 300 lbf.in
S.I.: 339 – 3390 cN.m
Metric: 34.5 – 345 kgf.cm
Tool Weight: 3.3 lbs.
Tool Length: 8
Tool Width: 4.25
Tool Height: 2.125
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • An ISO 17025 certified torque analyzer used for calibrating and testing small hand screwdrivers, most wrenches, and power tools
  • Quick and easy-to-use torque analyzer to verify a tool’s performance on the assembly line
  • Ensure proper torque is being applied and tools maintain conformity with quality standards
  • Instant verification that a tool is still in or out of calibration. Daily or weekly verification in the assembly area
  • Features a built-in Li-ion rechargeable battery
  • Portable torque tester
  • Vivid full color, smartphone-like touchscreen interface
  • Virtually unlimited data point storage with swappable SD card memory
  • Sophisticated onboard software with SPC analysis
  • Ability to analyze and create statistical data
  • Ability to capture and store data
  • Multi-language operation (English, Spanish, French, German, Chinese or Portuguese)
  • Mountz EZ-TorQ III Data Streamer. Ability to analyze data and calculate statistical data
  • Creates a historical record of your torque readings
  • Documentation solution
