TT02

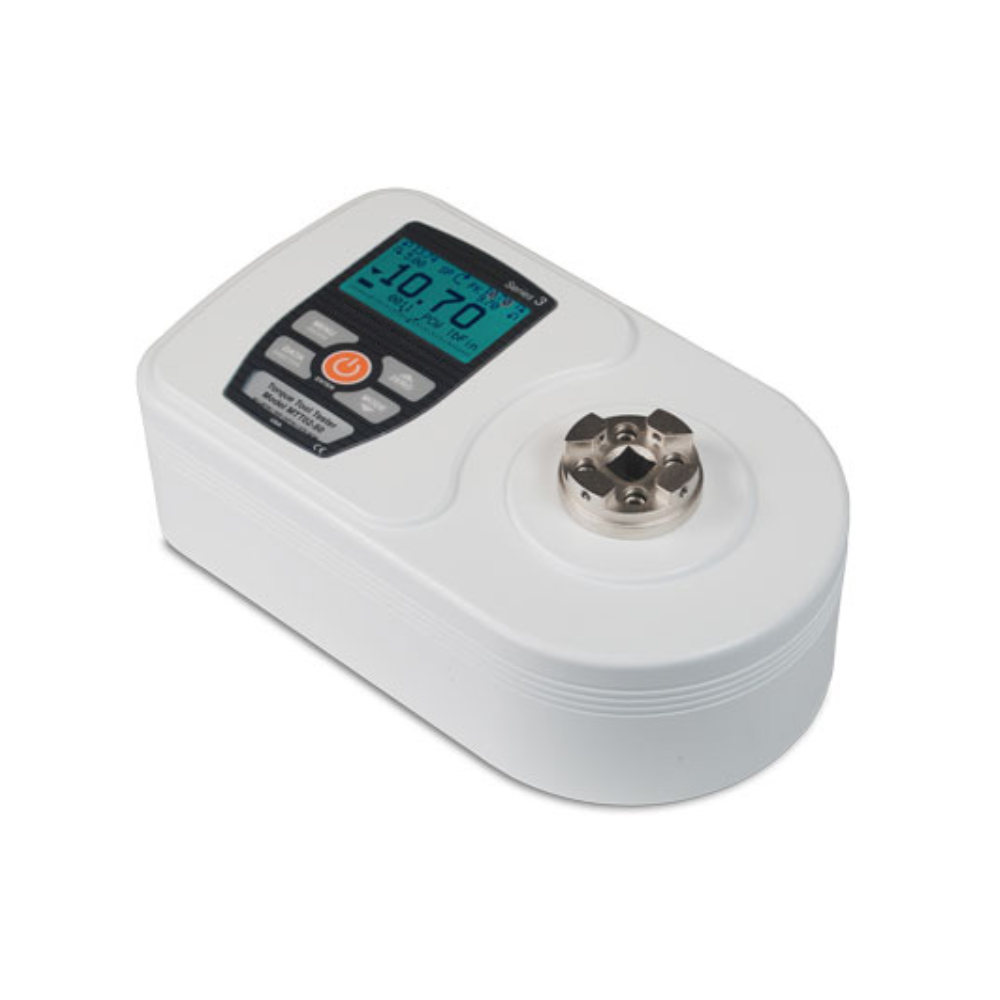

Torque Tool Tester

Series MTT02 Torque Tool Testers present a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions and also calculates 1st and 2nd peaks, useful for click-type tools.

Series MTT02 Torque Tool Testers present a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions and also calculates 1st and 2nd peaks, useful for click-type tools.
A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Note: Not for use with impact tools.

 Torque Ranges

Model Capacıty / Resolutıon
ozFın lbFın lbFft Ncm Nm
TT02-12 192
0.1		 12
0.005		 1
0.0005		 135
0.1		 1.35
0.001
TT02-25 400
0.2		 25
0.01		 2
0.001		 290
0.2		 2.9
0.002
TT02-50 800
0.5		 50
0.02		 4
0.002		 570
0.5		 5.7
0.005
TT02-100 1600
1		 100
0.05		 4
0.005		 1150
0.5		 11.5
0.005

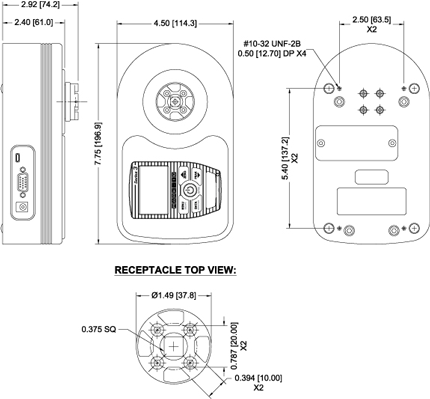

 Dimensions

FEATURES

  • Includes NIST Traceable Calibration Certificate
  • First / second peak capture for CW and CCW directions
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • USB, RS-232, Mitutoyo, and analog outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • 3/8″ square receptacle accommodates common bits and attachments
  • 1,000-point data memory with statistics and outputs
  • Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
  • Password protection prevents unauthorized changes
  • 5 selectable units of measurement
  • Battery or AC operation

SPECIFICATIONS

Accuracy ±0.3% of full scale
Sampling rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units ozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1V DC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable Settings 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 5.8 lb [2.6 kg]
Environmental Requirements 40°F – 100°F [5°C – 45°C], <96% humidity (non-condensating)
